UJK Large Digital Height Gauge - 108556

UJK Large Digital Height Gauge

ref: 108556

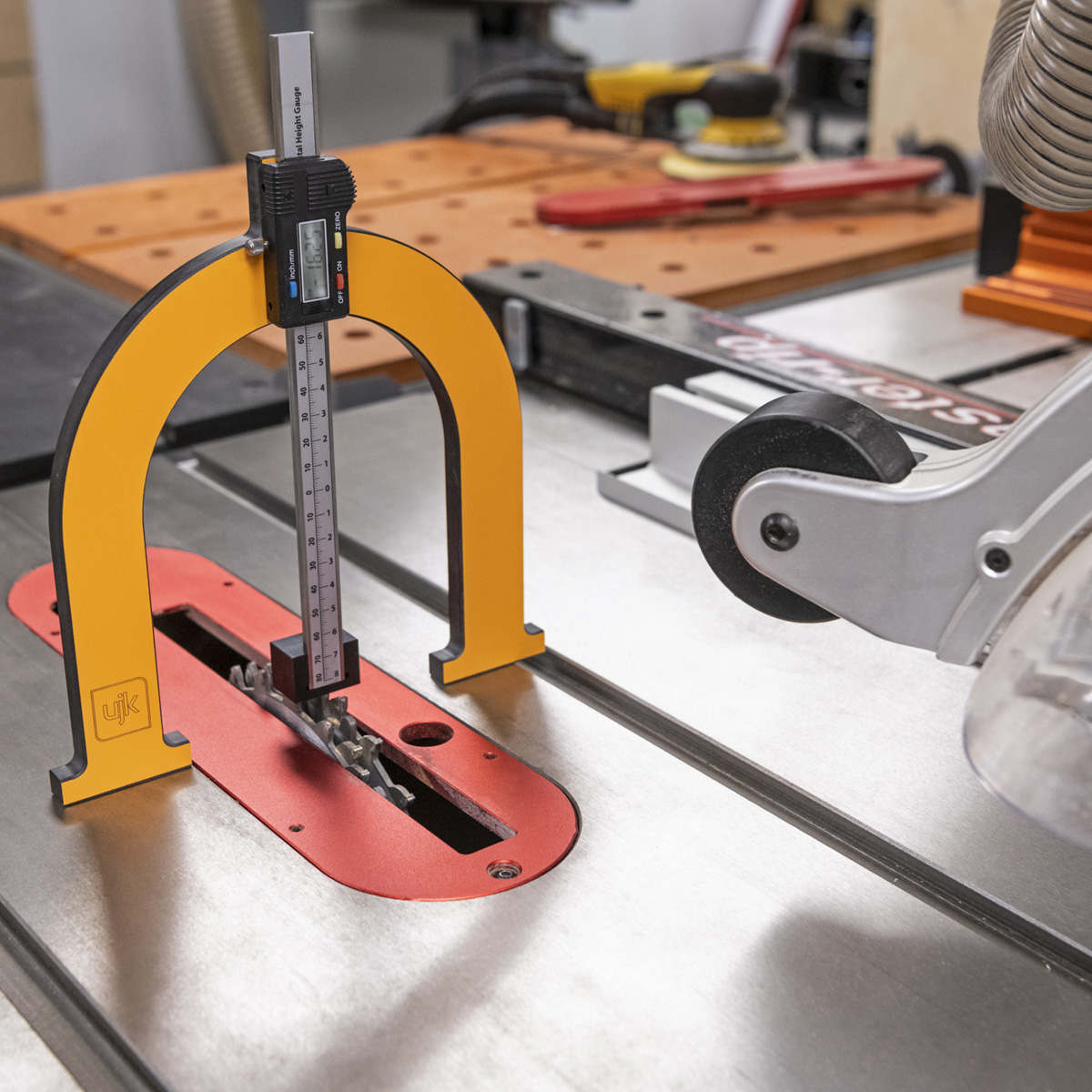

• The UJK Large Digital Height Gauge lets you set or check cutting depths of up to 145mm with a high degree of accuracy. It is an indispensable measuring tool for larger saws and setting router table fences.

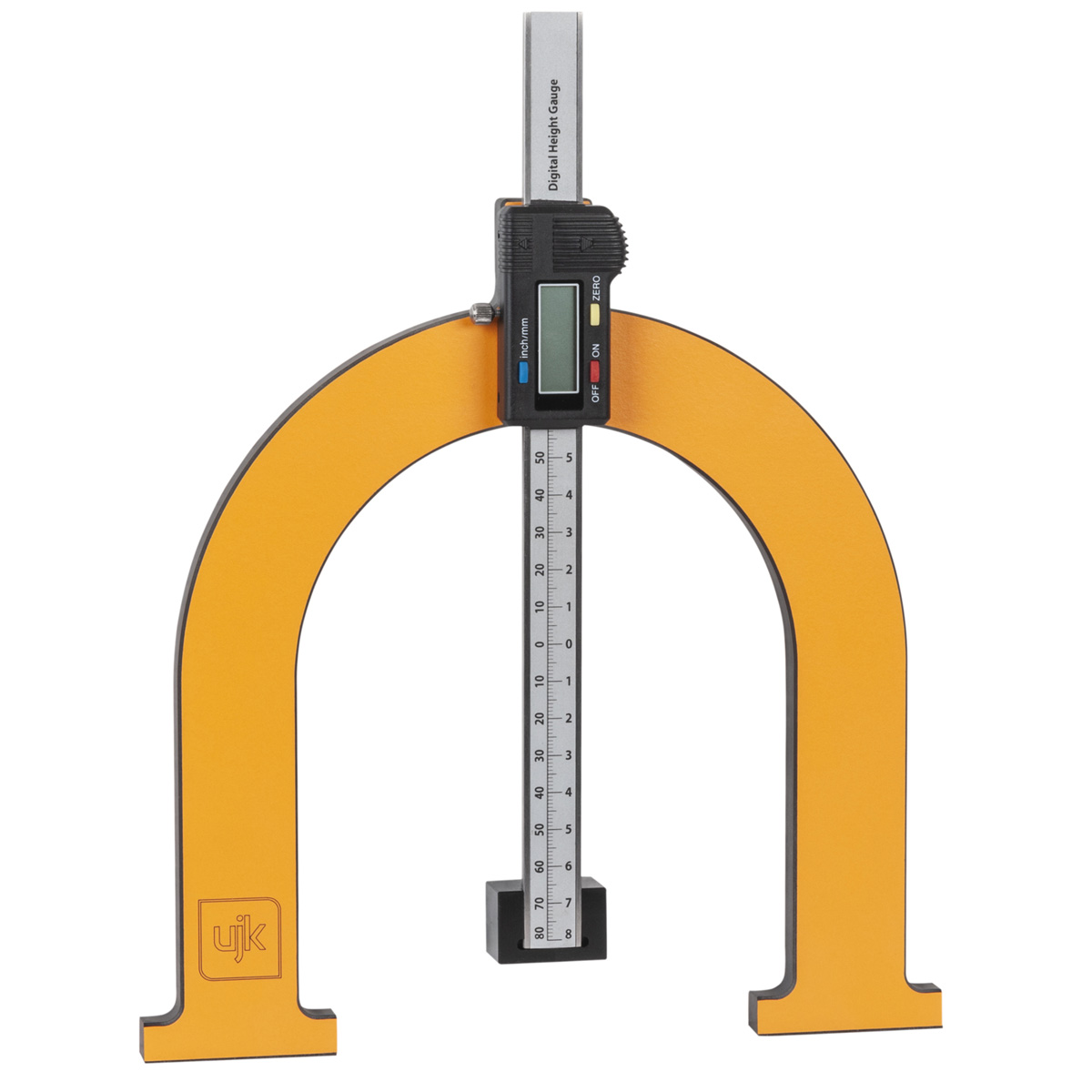

• The horseshoe shaped body is CNC machined, 12mm thick phenolic sheet. This hard, dense material is highly durable and most importantly stable under normal workshop conditions.
• The Gauge is accurate both vertically and horizontally. The distance between the legs of the body is 116mm and the maximum vertical range is 145mm.
• The highly accurate digital scale unit, with an LCD screen offers a read-out in metric or imperial. The display has a resolution of 0.01mm or 0.001 inches. The digital read-out tells you precisely how deep your saw blade or router cutter will cut.
• With a measuring speed of 1.5 milliseconds, it is faster than guessing with a ruler. You can zero the digital read-out at any point, allowing relative adjustment.

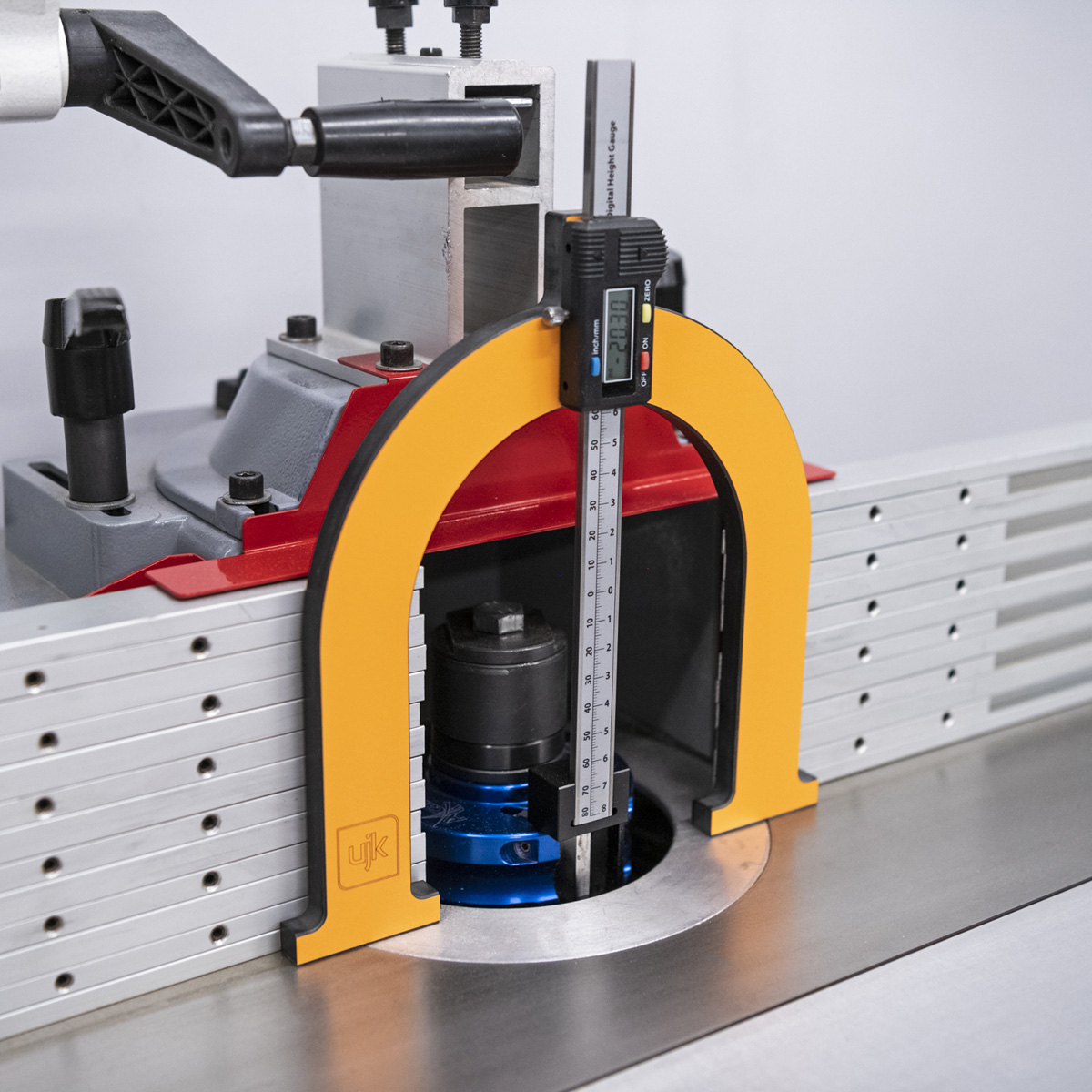

• It is convenient to hold the bar in contact with the blade or cutter and gradually increase the cutter height until the display reaches the desired depth.

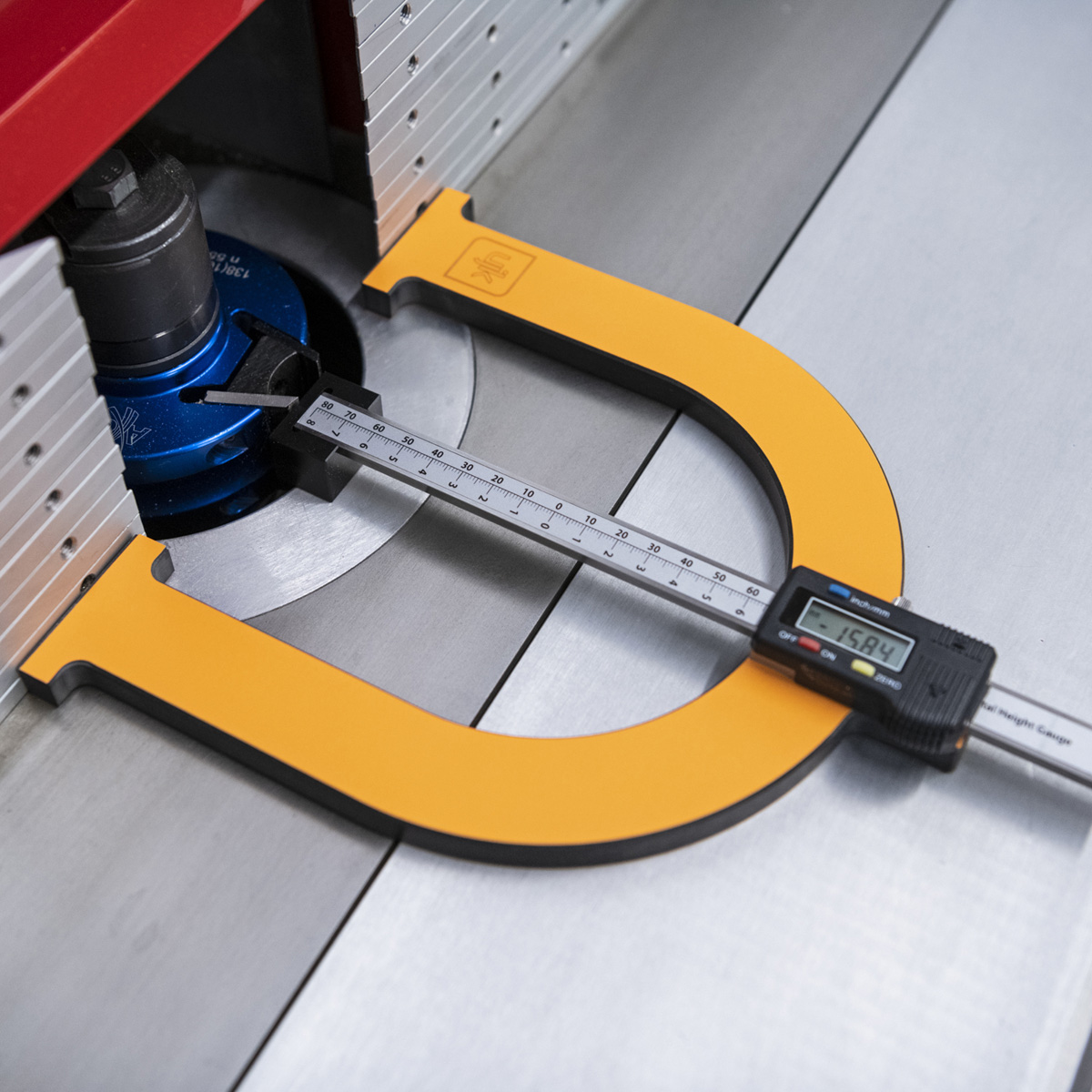

• Used horizontally, you can measure or adjust a router table fence relative to the cutter.
• LR44 battery included.
• British made
