UJK Aluminium Universal Sub Base and Fixing Kit - 718650

UJK Universal Sub-Base & Fixing Kit

ref: 718650

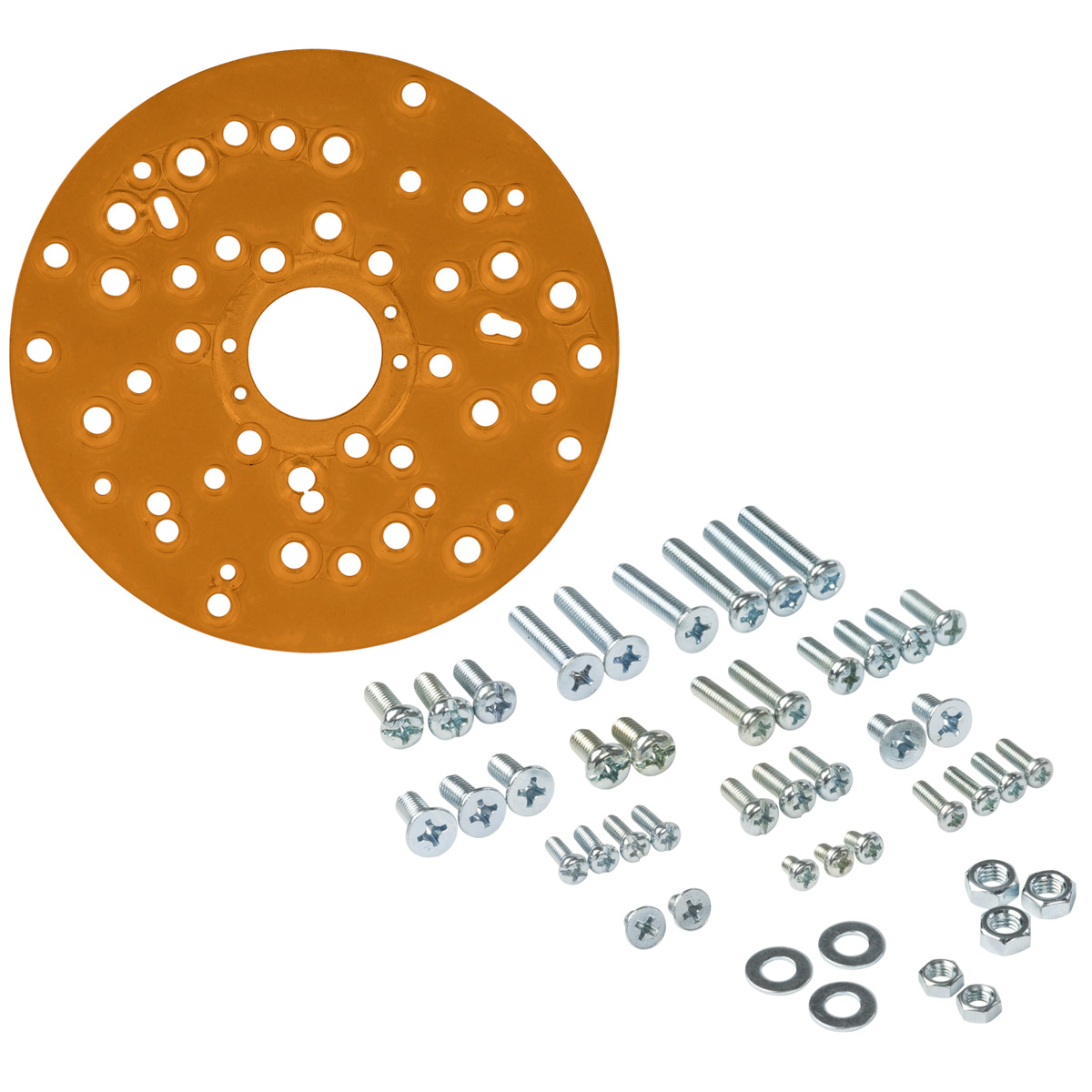

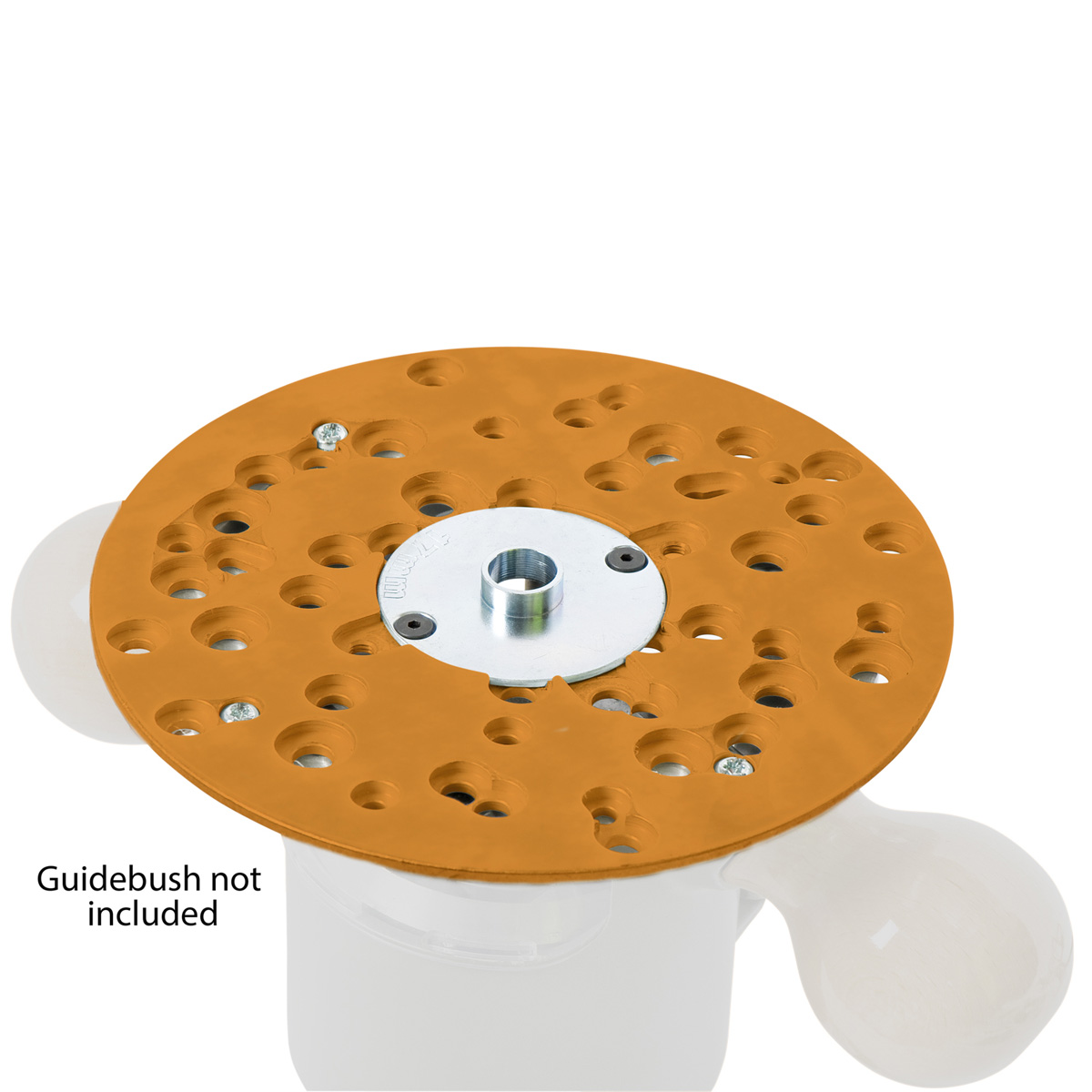

• Some routers can be difficult to match up with suitable guide bushes and a universal sub-base can be the only solution. A round base can be preferable in many circumstances too. The UJK sub-base is precision machined from aluminium and fitted with a low friction surface for ease of use. It is designed to accept standard UJK guide bushes and holes for these are drilled with an M4 thread. It is also designed for mounting to a very wide range of different routers including Bosch, Makita, Elu, Dewalt, Festool, Trend, Ryobi and Hitachi models to name a few and a fixing kit is included to cover a variety of thread types.
• 176mm diameter x 7mm thickness.

• 4 x M4 x 10mm pan head
• 4 x M4 x 12mm pan head
• 4 x M5 x 15mm pan head
• 2 x M5 x 20mm pan head
• 2 x M6 x 12mm pan head
• 3 x M6 x 15mm pan head
• 3 x M6 x 30mm pan head
• 3 x M4 x 6mm Pan Head
• 3 x No. 10 UNFx1/2inch pan head
• 2 x M6 x 12mm Countersunk
• 3 x M6 x 15mm Countersunk
• 3 x M6 x 30mm Countersunk
• 2 x 2BAx1/4inch Countersunk
• 3 x M6 Washer
• 2 x M5 Nut
• 3 x M6 Nut

UJK Universal Sub-Base Instructions
