Trend RS/JIG - Router Surfacing Jig

Trend RS/JIG - Router Surfacing Jig

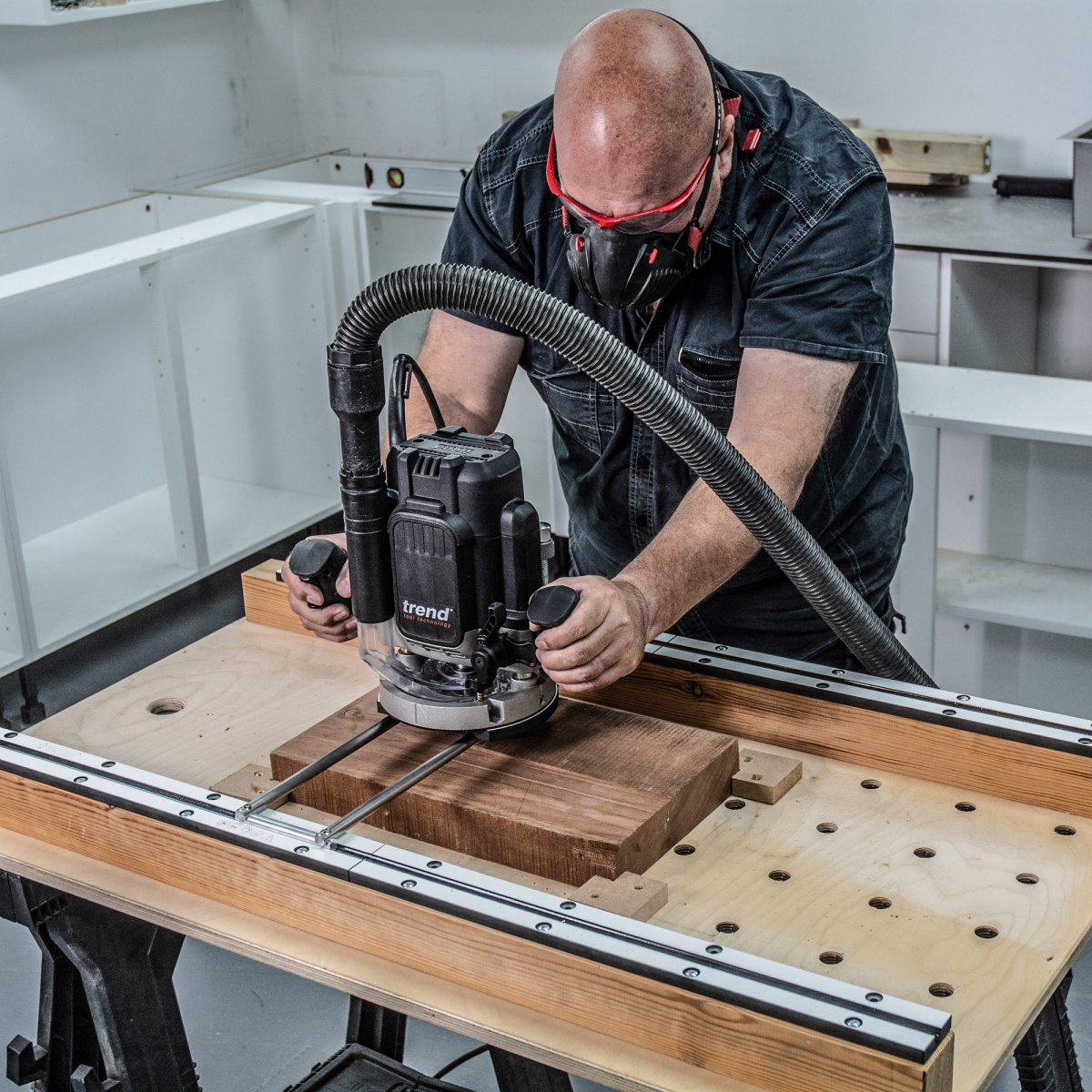

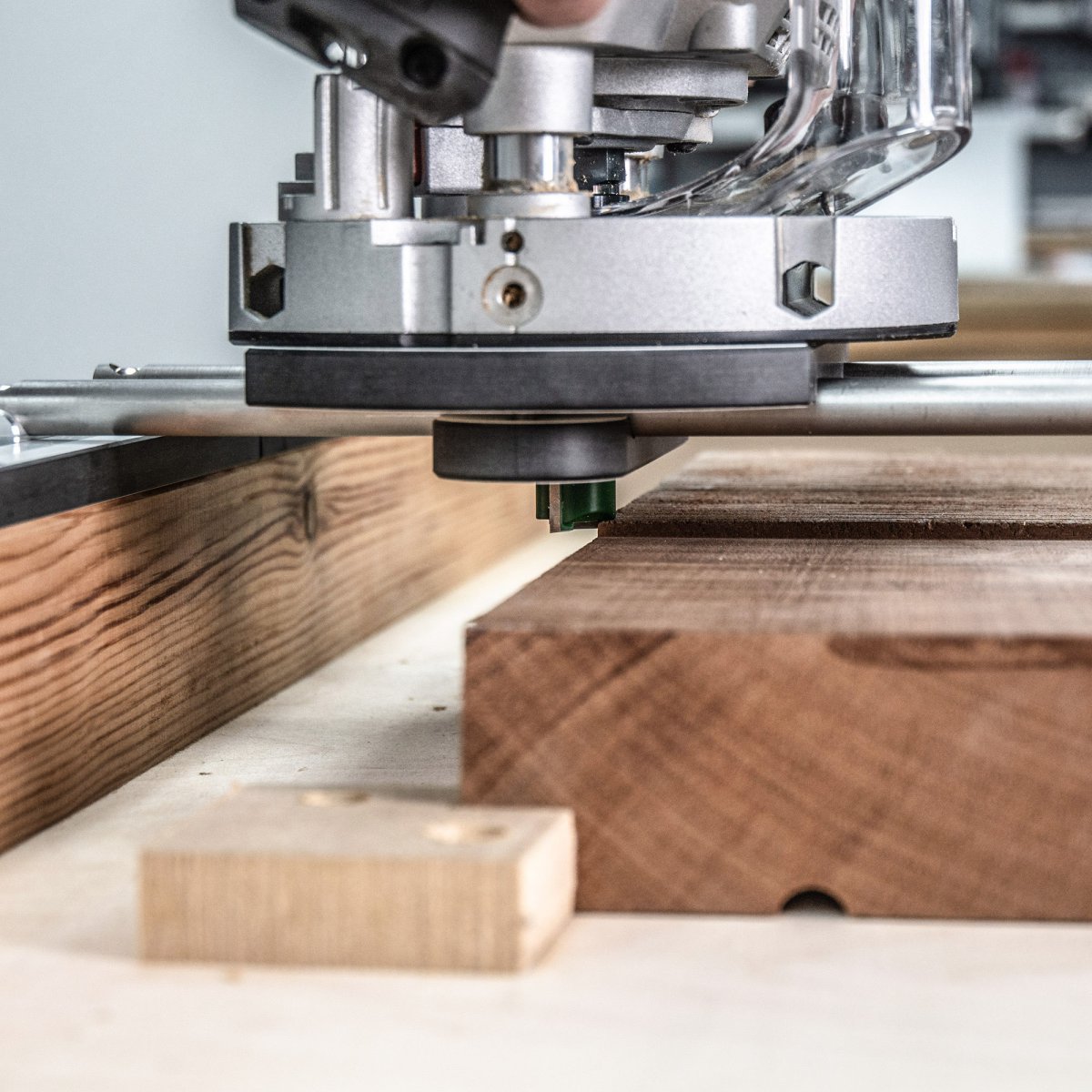

Adaptable router jig for flattening, surfacing and trenching on irregular shaped and wide material up to 400mm wide. Ideal for fine, skimming cuts and deep, levelling cuts.

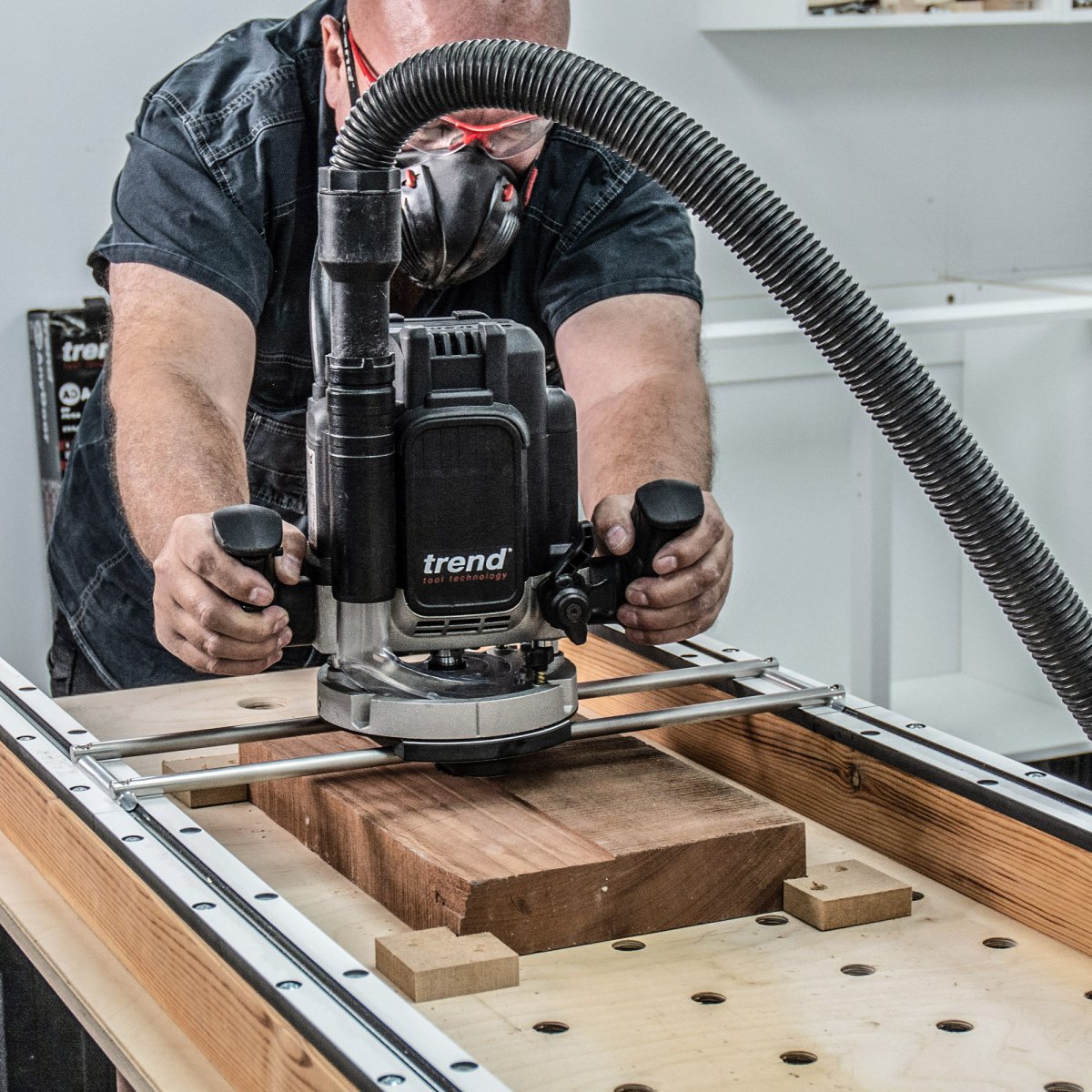

• Tri-Directional Cutting across the grain, along the grain, and across the end grain.

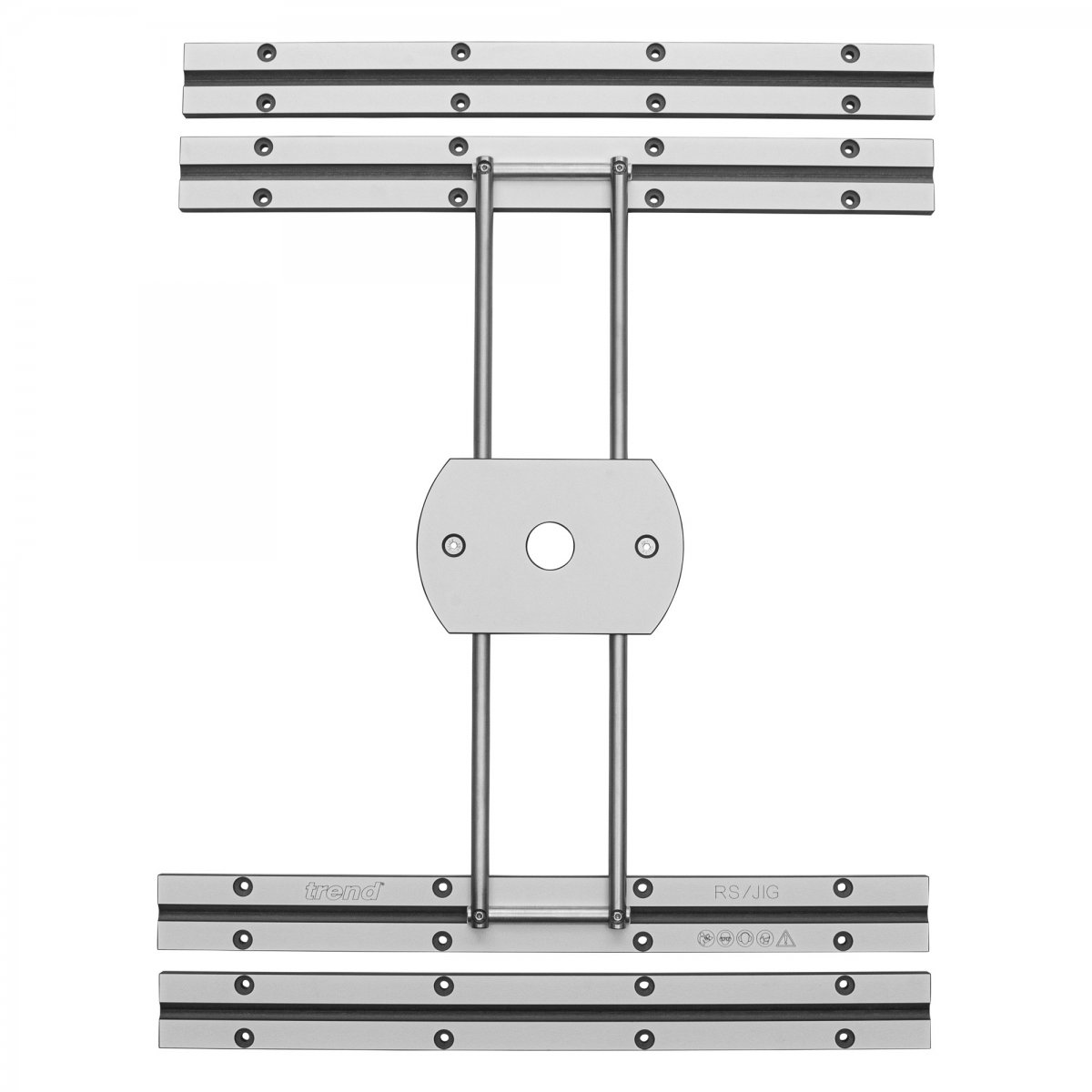

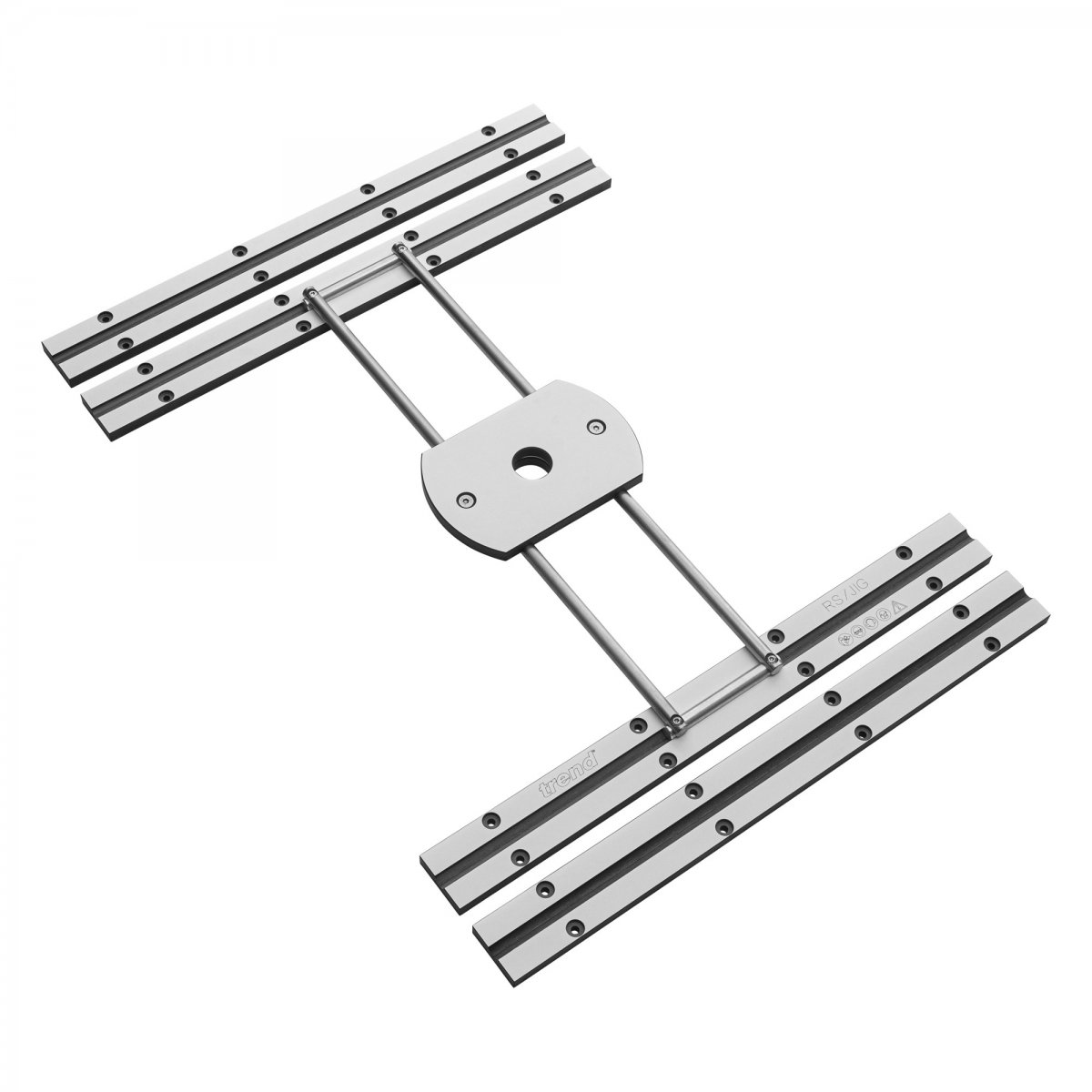

• Compact Grade HPL Cradle & Rails for precision, strength and durability.
• 12mm Stainless Steel Rails support routers up to 7kg across materials 400mm wide.

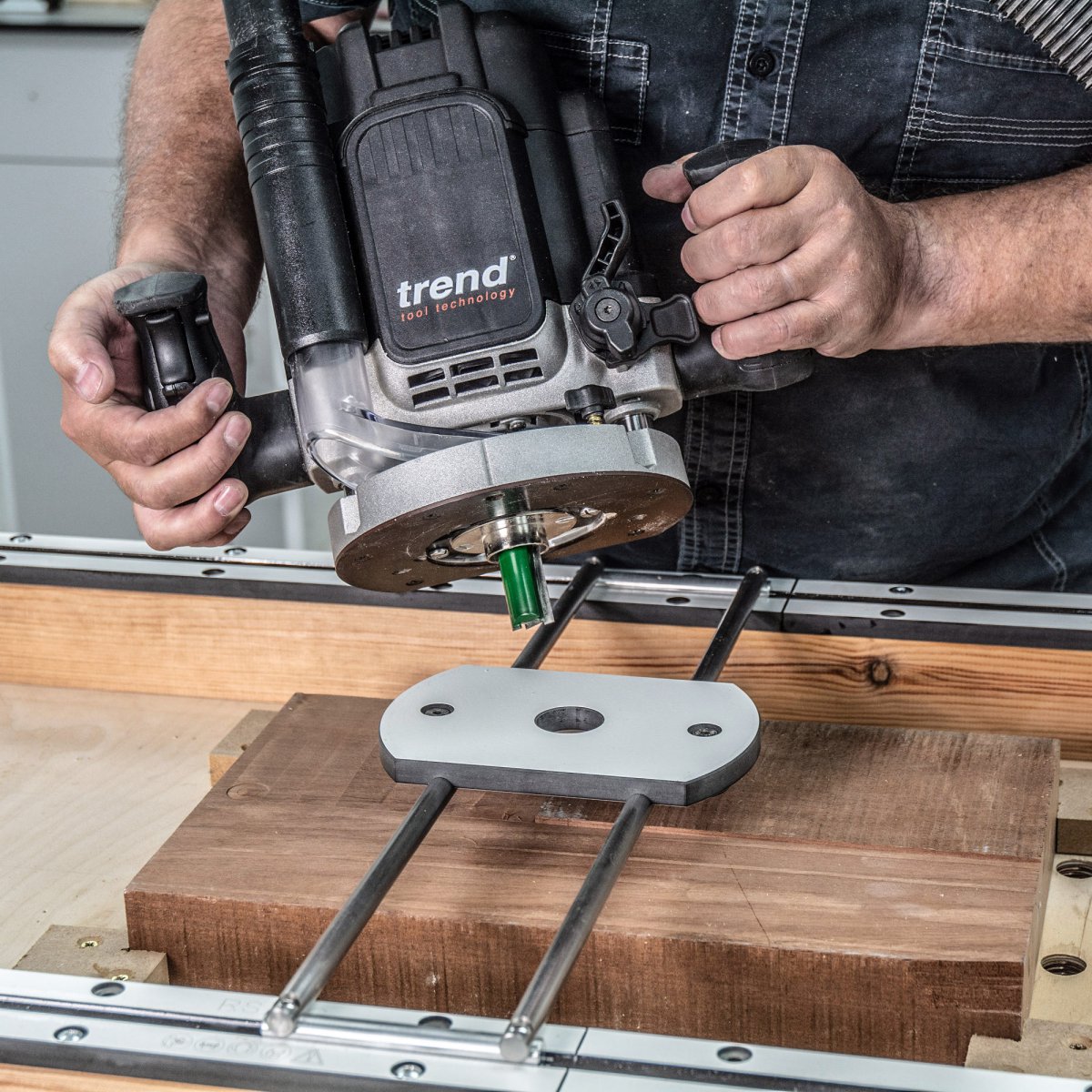

• Guide Bush Cradle compatible with any router using a 30mm guide bush, and requires no additional fixings or sub base.

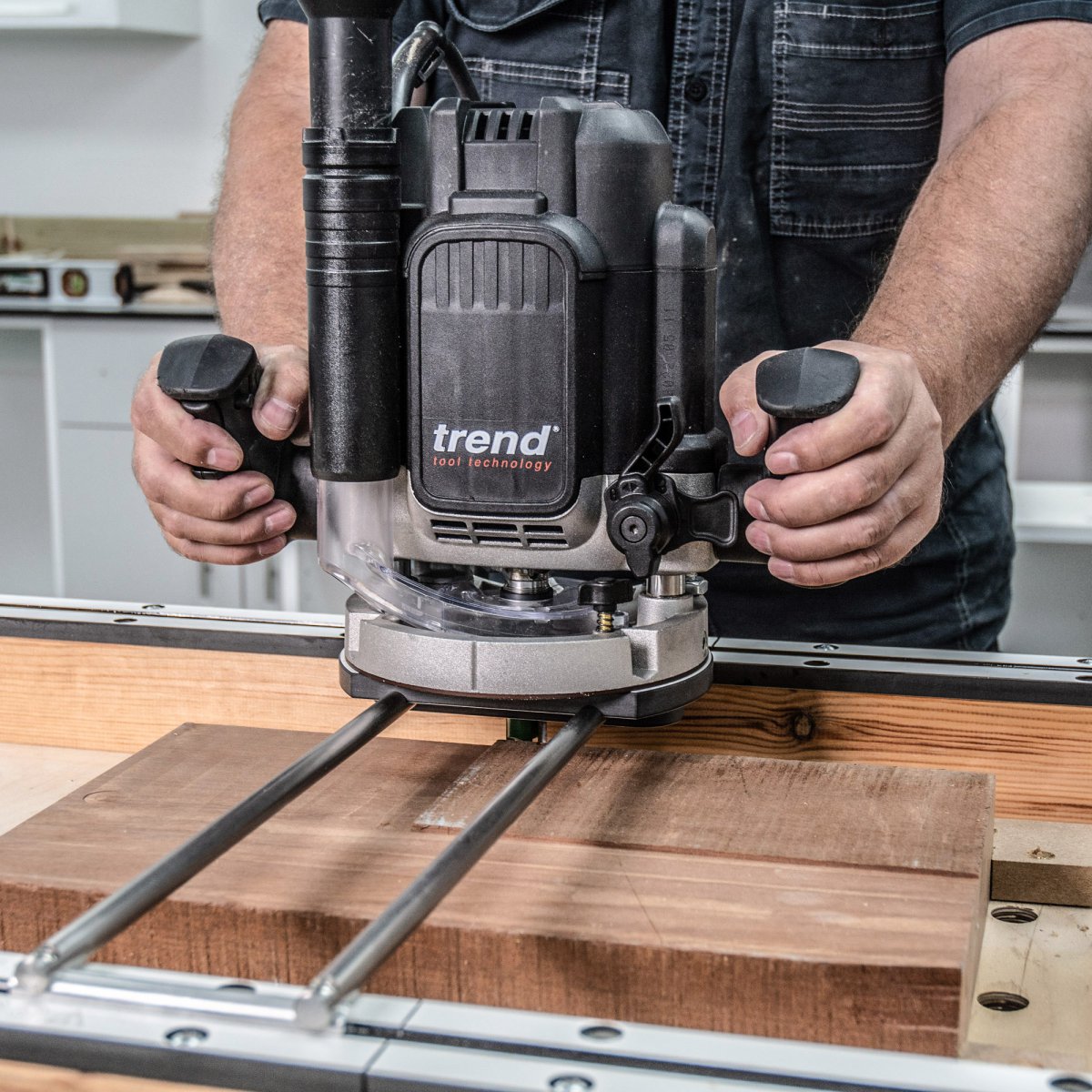

• Lockable Cradle for single axis movement. Ideal for trenching cuts.
• Extendable Design accommodates additional rails for longer materials.
• Compact Modular Construction stores easily.
• Requires: router (½”/12mm collet – min.1300W), cutter (½”/12mm shank), and guide bush (30mm diameter).

• Rail Length = 511 mm
• Rail Width = 50 mm
• Rail Thickness = 12 mm
• Steel bars Length = 511mm
• Steel bars Thickness = 12mm
• Router base plate bore = 30 mm
• Max. router weight = 7 kg
• Footprint = 1022 x 540 mm
• Material Width max = 400mm
• Material Length max = 910mm
• Guide Bush = 30mm
• Cutter diameter max. 19.1 mm

Trend RS/JIG - Router Surfacing Jig Manual
