Sturmer Optimum OPTImill MH 50G Drilling Milling Machine 415v
Product Code: STU/3338180
Brand: Stuermer
£7,439.99 Inc. VAT
£6,199.99 Exc. VAT
Sturmer Optimum

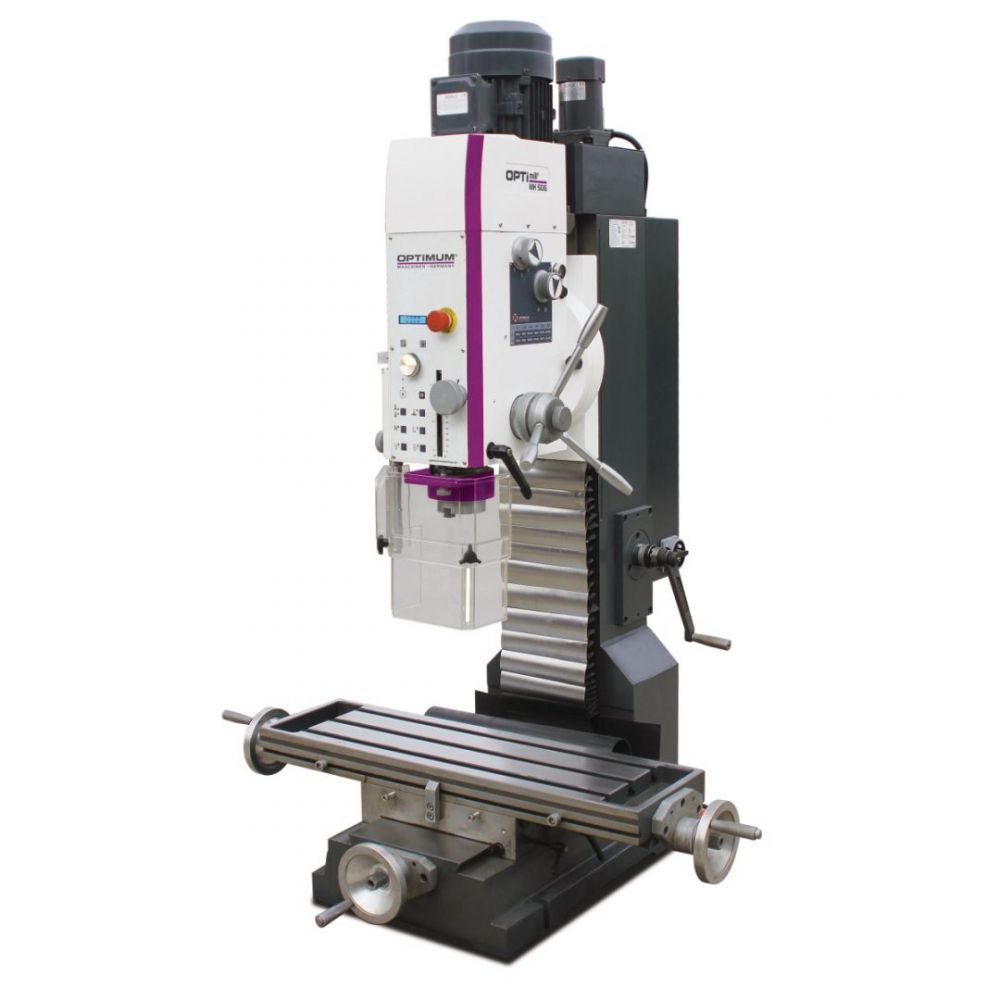

OPTImill MH 50G Drilling Milling Machine 415v
ref: 3338180
Universal precision drilling-milling machines with manual transmission. MH 35V with electronically controllable drive.
Key Features
- High concentricity due to tapered roller bearings, ≤ 0.015 mm measured in the sleeve
- Solid and generously dimensioned cross table, precisely surface-machined with T-slots
- Control panel with user-friendly, dirt and water-resistant membrane keypad
- Easy-to-read digital display
- Drilling depth stop
- Right/left rotation
- Thread cutting mode
- Rotary pushbutton in the control panel for setting the drilling depth in either mm or inches and zero point
- Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user
- Gear head can be tilted ± 30
- Adjustable and readjustable feed spindle play
- Heavy, stable and solid column made of high-quality gray cast iron, with ground and scraped dovetail guide for high stability and precision as well as adjustable gibs
- Z-axis with stainless steel lamella protective cover
- 6 gear stages, electronically adjustable
- Digital speed display
Technical details
Dimensions and weights
- Length approx.: 1210 mm
- Width/depth approx.: 1020 mm
- Height approx.: 1645 mm
- Weight approx.: 518 kg
Drilling/milling output
- Max. size milling head: 80 mm
- Max. size shaft milling cutter: 32 mm
- Drilling performance steel (S235JR): 38 mm
- Continuous drilling performance steel (S235JR): 32 mm
Electrical Data
- Drive motor output: 1,5 / 2,2 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Milling table horizontal
- Table length: 850 mm
- Table width: 240 mm
- Max. clearance vertical spindle – milling table: 545 mm
- T-groove size: 18 mm
- T-groove number: 3
- T-groove spacing: 80 mm
- Max. load bearing capacity: 175 kg
Travel
- X axis manual: 520 mm
- Y axis manual: 260 mm
- Z axis manual: 465 mm
- Z axis automatic: 385 mm
Vertical spindle
- Reach: 260 mm
- Spindle chuck: BT 40
- Speed range: 225 – 3260 min¯¹
- Number of gears: 2 x 6
- Swivel range milling cutter head Z – X plane: ± 30 °
- Quill diameter: 80 mm
- Quill stroke: 115 mm
