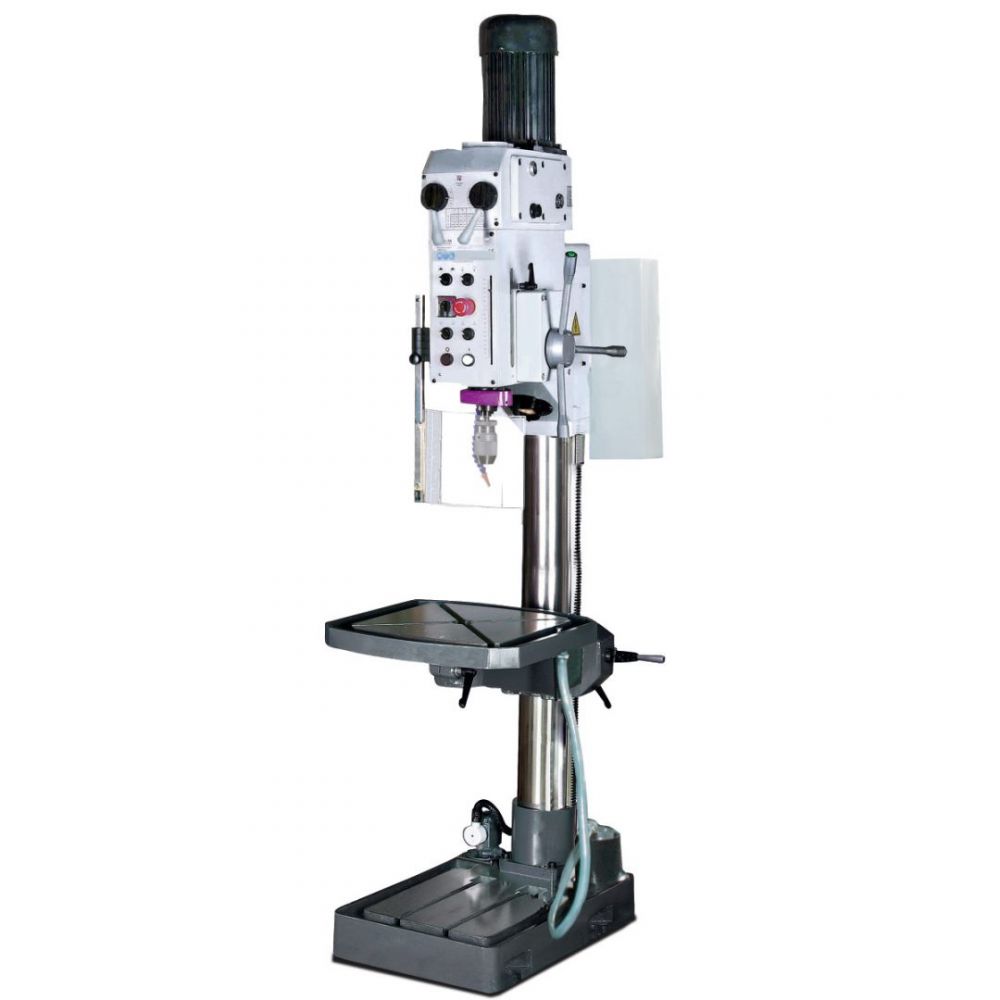

Sturmer Optimum OPTIdrill B 40GSM Gear Drilling Machine 415v

Sturmer Optimum

OPTIdrill B 40GSM Gear Drilling Machine 415v

ref: 3034400

Heavy version with tapping attachment.

• Heavy, solid cast construction
• Automatic gear lubrication via oil pump
• High concentricity due to hardened and ground main spindle
• Threading attachment
• Main switch and motor protection switch
• Drilling depth stop adjustable with millimeter scale
• Machine light integrated in the drill head
• Precise machined and large-dimensioned drill table with diagonally running T-slots and circumferential cooling water channel
• Integrated expeller for easy tool change
• Coolant device and chip filter according to Machinery Directive
• Thick-walled cast-iron column for high power absorption and stability
• Solid base plate, large dimensions, extremely stable
• Electrical quill feed

Dimensions and weights

• Column diameter: 150 mm
• Length approx.: 935 mm
• Width/depth approx.: 530 mm
• Height approx.: 2280 mm
• Weight approx.: 500 kg

Drilling performance

• Drilling performance steel (S235JR): 35 mm
• Continuous drilling performance steel (S235JR): 30 mm
• Thread tapping steel (S235JR): M 24

Drilling table

• Workspace length: 560 mm
• Workspace width: 560 mm
• T-groove type: diagonal
• T-groove size: 18 mm
• T-groove number: 2
• Rotation: ± 90 °
• Load bearing capacity: 250 kg
• Max. distance spindle – drilling table: 780 mm

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle – machine base: 1320 mm
• Work area length: 510 mm
• Work area width: 500 mm
• Machine base T-groove size: 18 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 150 mm

Motor(s)

• Spindle motor drive output: 0.85 / 1.5 kW
• Coolant pump drive motor output: 40 W

Speed range

• Speed range: 50 – 1450 min¯¹
• Number of gears: 18 Steps

Spindle

• Quill stroke: 180 mm
• Spindle chuck: MT 4
• Reach: 350 mm
• Quill feed speed: 0,1 / 0,2 mm/rev
• Quill feed gears: 2 Steps
