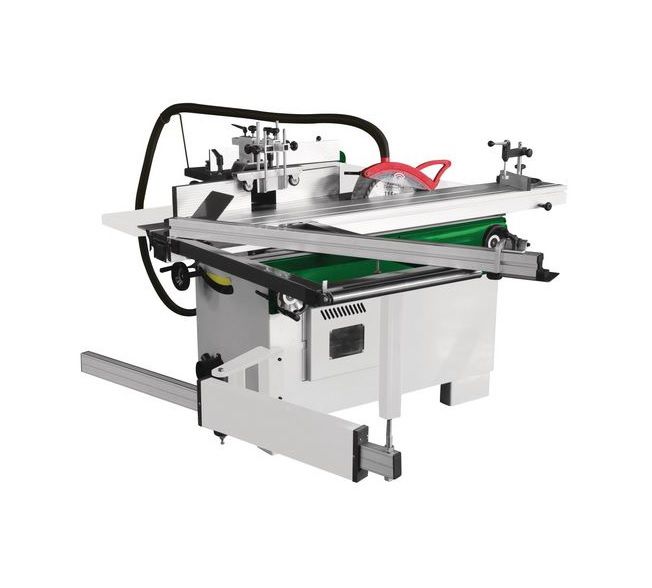

Sturmer Holzstar SFK 315/30 - 2600 Combi Panel Saw with Milling Spindle 315mm 415v

Sturmer Holzstar

SFK 315/30 - 2600 Combi Panel Saw with Milling Spindle 315mm 415v

ref: 5945326

• SFK 315/30 - 2600 Combined 315mm Panel sizing saw + 100mm depth of cut + pre-scoring + 1600mm width of cut + 2600mm sliding beam + outrigger table + telescopic arm + vertical spindle moulder + 4 x speeds (1800 / 3000 / 6000 / 9000 rpm + 2 x motors (3kW & 2.8kW) 415v
• Ø 315 mm main saw blade with 100 mm max. cutting height, which is also achieved with the scoring saw blade installed
• Saw unit can be tilted from 90° to -45
• Perfect for panel processing thanks to adjustable scoring saw blade
• High-precision format sliding carriage made of anodized aluminium
• With material roller and extendable aluminum telescopic fence
• Swivel milling spindle
• Four routing speeds

Circular saw unit

• Trimming length: 2600 mm
• Saw blade tilt: 45 – 90 °
• Max. cutting height 90°: 100 mm
• Max. cutting height 45°: 80 mm
• Diameter (main) saw blade: 315 mm
• Diameter scoring saw blade: 90 mm
• Speed (main) saw blade: 4500 min¯¹

Dimensions and weights

• Length approx.: 1540 mm
• Width/depth approx.: 700 mm
• Height approx.: 1120 mm
• Weight approx.: 425 kg

Electrical Data

• Input power saw: 3 kW
• Saw output: 2.4 kW
• Input power milling: 2.8 kW
• Tiller output: 2.2 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Extraction port

• Suction nozzle diameter: 100 mm
• Suction port diameter Saw blade guard: 30 mm

Milling cutter diameter max.

• not lowerable: 200 mm

Milling spindle

• Spindle inclination: 0 – 45 °
• Spindle mandrel diameter: 30 mm
• Useful length of the spindle: 100 mm
• Spindle speeds: 1800/3000/6000/9000 min⁻¹

Noise emission

• Idle sound pressure level: 90.2 dB(A)

Sliding carriage and table

• Format slide length: 2600 mm
• Sliding table width: 270 mm
• Format sliding carriage height: 95 mm
• Table length: 1650 mm
• Table width: 380 mm
