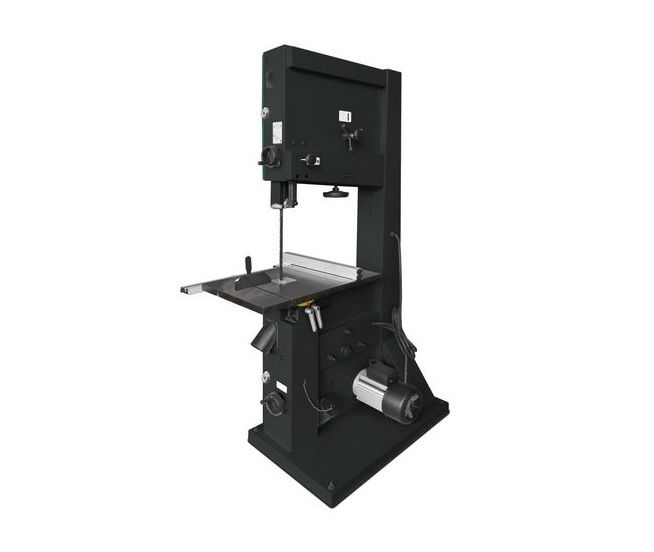

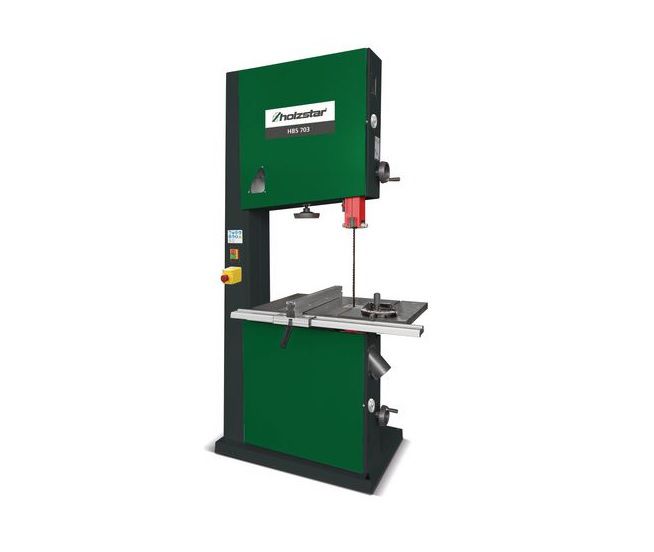

Sturmer Holzstar HBS 703 Woodworking Bandsaw 3000W 415v
Product Code: STU/5941173
Brand: Stuermer
£4,199.99 Inc. VAT
£3,499.99 Exc. VAT
Sturmer Holzstar
HBS 703 Woodworking Bandsaw 3000W 415v
ref: 5941173
Key Features
- HBS 703 710mm Dia bandsaw + 415x700mm max cutting cap + mitre gauge inc + rigid fence stop +3000W 415v motor
- Heavy-duty design with high dead weight for maximum running smoothness
- Quiet and precise running thanks to torsion-resistant machine housing
- Precisely adjustable aluminium parallel fence
- Cast-iron flywheels with rubber coating and chip scraper brush
- Large cast-iron saw table, swivels from 0° to +45° with ground and polished surface
- Precise cutting height adjustment via toothed rack with millimetre scale
- Two suction ports
Technical details
Cutting ranges
- Max. cutting height 90°: 430 mm
- Max. cutting height 45°: 258 mm
- Max. cutting width with stop: 415 mm
- Max. cutting width without stop: 700 mm
Dimensions and weights
- Length approx.: 1200 mm
- Width/depth approx.: 800 mm
- Height approx.: 2250 mm
- Weight approx.: 308 kg
Electrical Data
- Delivery power: 3 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 2 x 120 mm
Saw band
- Speed(s): 1080 m/min
- Length: 5020 mm
- Width: 38 mm
- Strength: 0,65 mm
Work top(s)
- Length: 640 mm
- Width: 500 mm
- Height: 940 mm
- Extension length: 150 mm
- Extension width: 500 mm
- Pivot; 0 – 45 °
- Pivot explanation: For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping!
- VPE: 1
