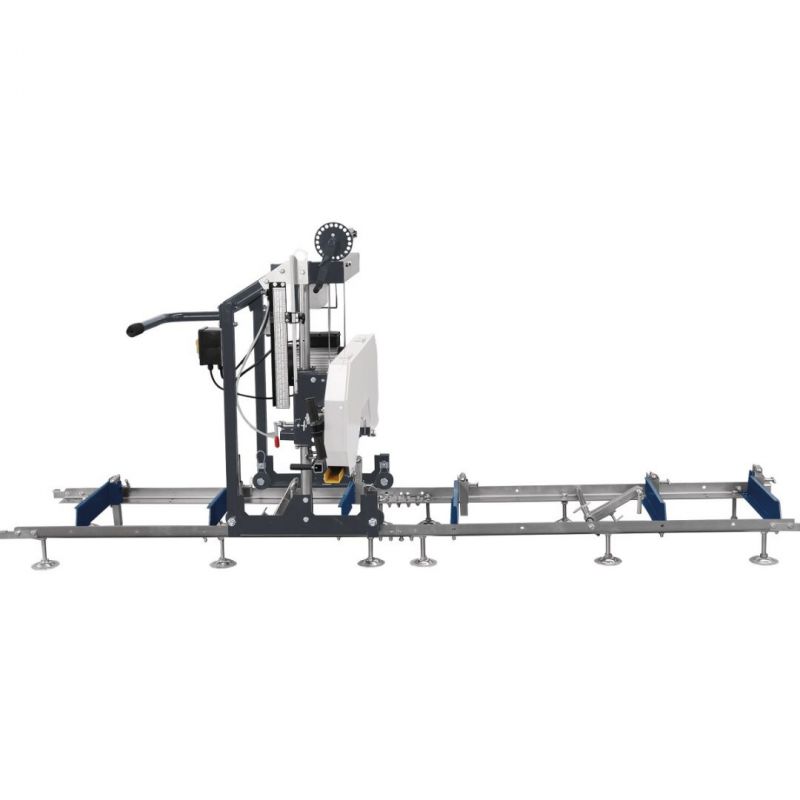

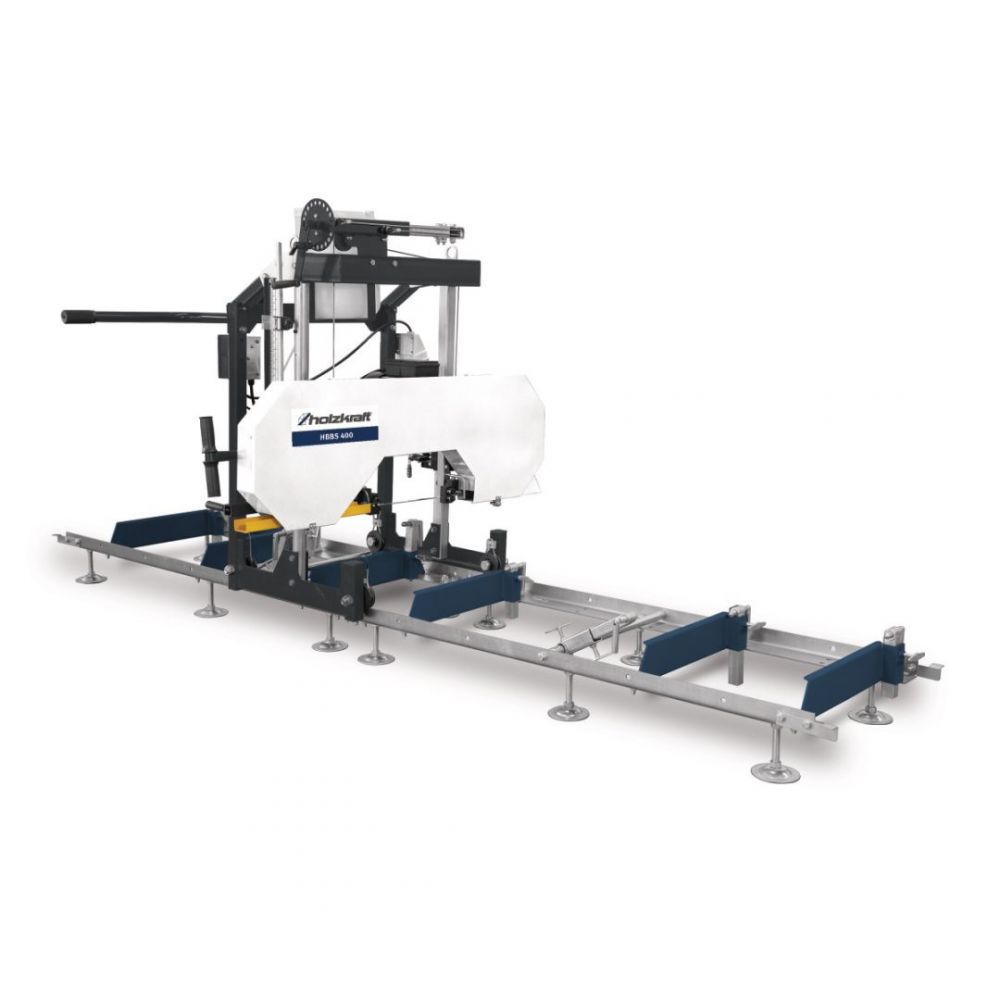

Sturmer Holzkraft HBBS 400 Horizontal Log Band Saw 350 x 2500 mm Max Cut - 230v

Sturmer Holzkraft

HBBS 400 Horizontal Log Band Saw 350 x 2500 mm Max Cut - 230v

• HOLZKRAFT HBBS 400 350x2500 mm max cutting capacity + 400mm trunk dia + horizontal bandmill + 230v
• Precise saw cuts when ripping round timber
• Solid cast wheels driven by a 2.2 kW electric motor
• Manual adjustment of the cutting height via hand crank
• Robust and torsion-resistant steel construction
• Simple operation with the aid of a manual saw feed
• Safety switch integrated in the handle for safe operation
• Stable clamping of the log thanks to adjustable tips
• Precise cuts thanks to adjustable saw blade guide
• Low friction between saw blade and wood thanks to integrated blade lubrication
• The side-mounted chip removal ensures a clean working area
• Any cutting length thanks to bed extensions available as accessories
• Suitable for softwood and hardwood

Cutting ranges

• Max. trunk diameter: 400 mm
• Max. cutting width: 350 mm
• Cutting length max.: 2500 mm
• Passage over saw band: 150 mm

Dimensions and weights

• Length approx.: 3000 mm
• Width/depth approx.: 1500 mm
• Height approx.: 1300 mm
• Weight approx.: 150 kg

Electrical Data

• Supply voltage: 230 V
• Mains frequency: 50 Hz

Noise emission

• Sound power level: 94.6 dB(A)

Saw band

• Speed(s): 14 m/s
• Length: 2750 mm
• Width: 19 mm
• Strength: 0.9 mm

Holzkraft HBBS 400 Manual
