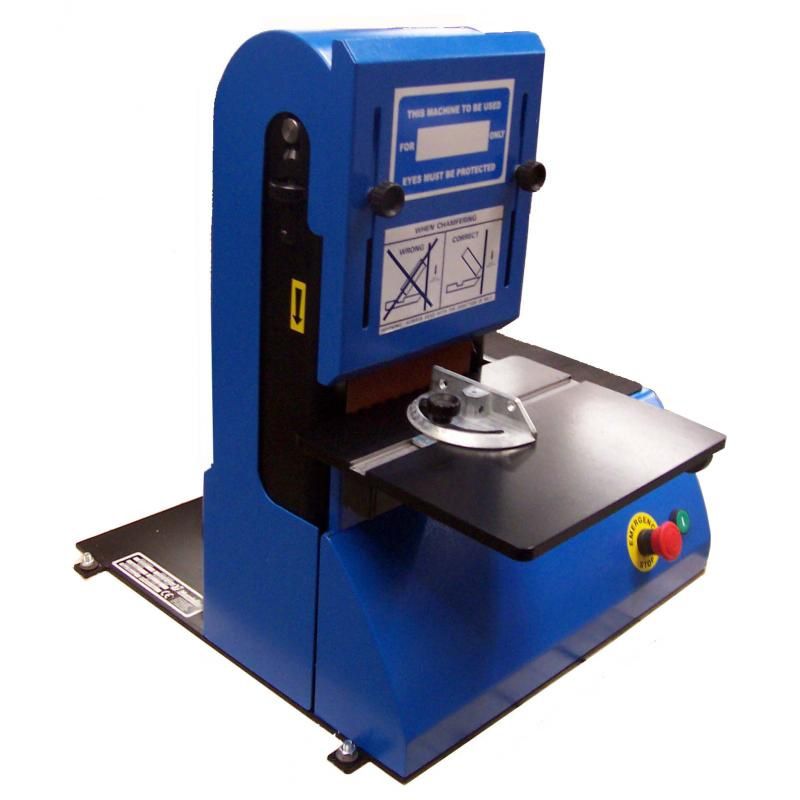

RJH DEER Bench Vertical Linishing Machine 1090 x 150mm 230v - AN150V1B

The RJH DEER Bandfacers have been designed to meet strict performance and safety criteria, and are therefore ideal for use in schools and colleges. These machines are suitable for working on wood, acrylic or metal. The Deer comply with UK COSHH regulations, the European Machinery Directive and with the BS 4163:2014 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All RJH education machines carry a 24 month warranty and are supplied with an operating manual.

• Bench mounted
• Quick action calibrated tilting table for operating positions between 90 and 135 degrees
• Adjustable protractor guide
• Thumb screws for belt adjustment
• Supplied with 150 x 1090mm aluminium oxide abrasive belt

SAFETY FEATURES

• No-volt overload push-button starter
• Full guarding including adjustable front belt guard for maximum finger protection
• Protective motor cover

OPTIONAL REFINEMENTS

• 3000rpm version - for metalwork only*
• Flexible LED light*
• Lockable triple pole isolator*
• Lockable “E” stop*

* Please note that these items are factory fitted at the point of manufacture

• DEER Bench Vertical Linishing Machine 1ph
• Vertical, belt size 1090 x 150mm
• 0.75Kw / 1500 rpm motor suitable for a 230/1/50 supply
• Complete with tilting table, protractor, 1 x 80 grit abrasive belt and toolkit
• Belt speed 6.5 m/sec
• Work Table Size, width x depth : 278 x 226mm
• Weight: 77kg
