Proxxon Thicknesser DH 40 230v

Proxxon Thicknesser DH 40 230v

ref: 27040

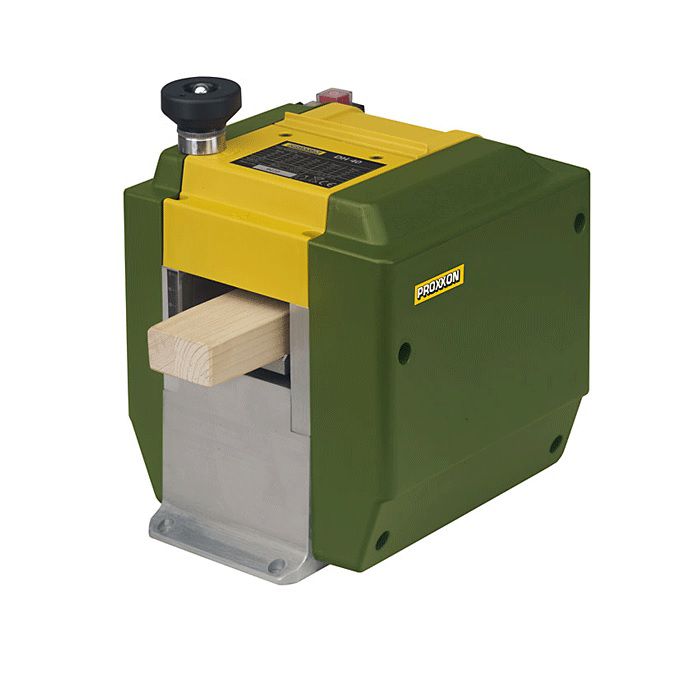

• The Proxxon DH 40 is a superb small machine for producing precision stock for fine furniture or musical instruments.
• Capable of machining even very hard, close grained woods, leaving a fine finish.
• All load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles, for vibration-free, smooth thicknessing of hard and soft woods. The result is a high grade, very smooth surface.
• The triple spindled table is made from die-cast aluminium and milled to close tolerances.
• The handwheel (zero adjustable) allows adjustments to 0.1mm.
• Auto feed is fitted as standard, as well as an anti-kickback device.
• The infeed roller is riffled and spring loaded to assist in feeding uneven materials.
• The outfeed roller is rubber coated to prevent marking the newly planed wood.
• The cutter block is fitted with two HSS knives.
• The on/off switch is dust protected and fitted with a no-volt-release switch.
• Table length 232mm. Overall machine dimensions 280 x 230 x 235mm. Weight approximately 8kg.
• Dust protected No-Volt release switch

• 230V. 200W. 50/60Hz.
• Thicknessing up to 40mm thick and up to 80mm wide.
• Maximum depth of cut 0.8mm.
• Cutter speed 6,000rpm.
• Feed rate 4.8m/ min.
• Table length 232mm.
• Weight approx. 8kg.
