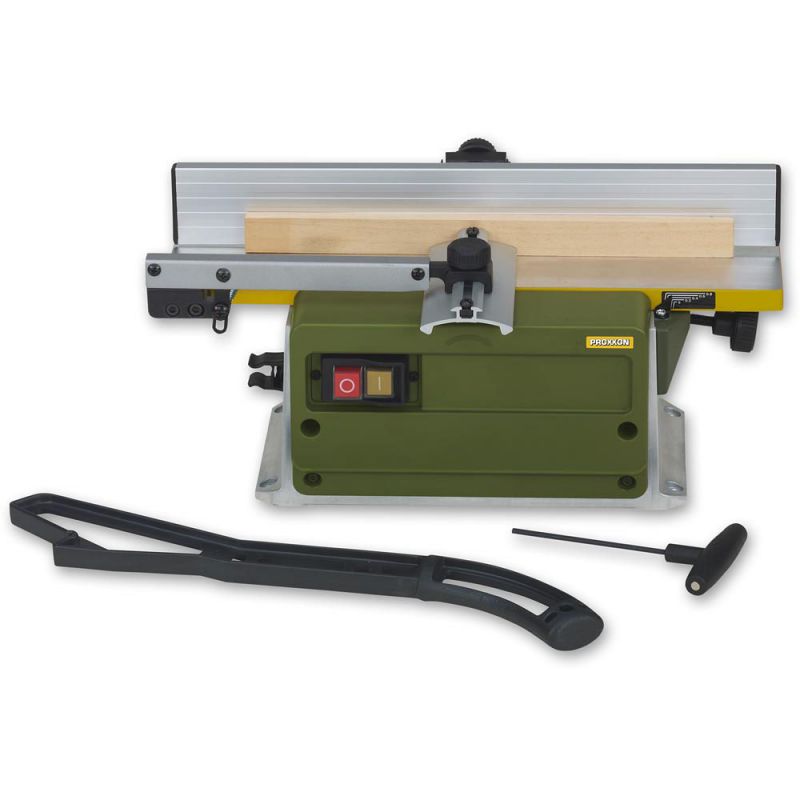

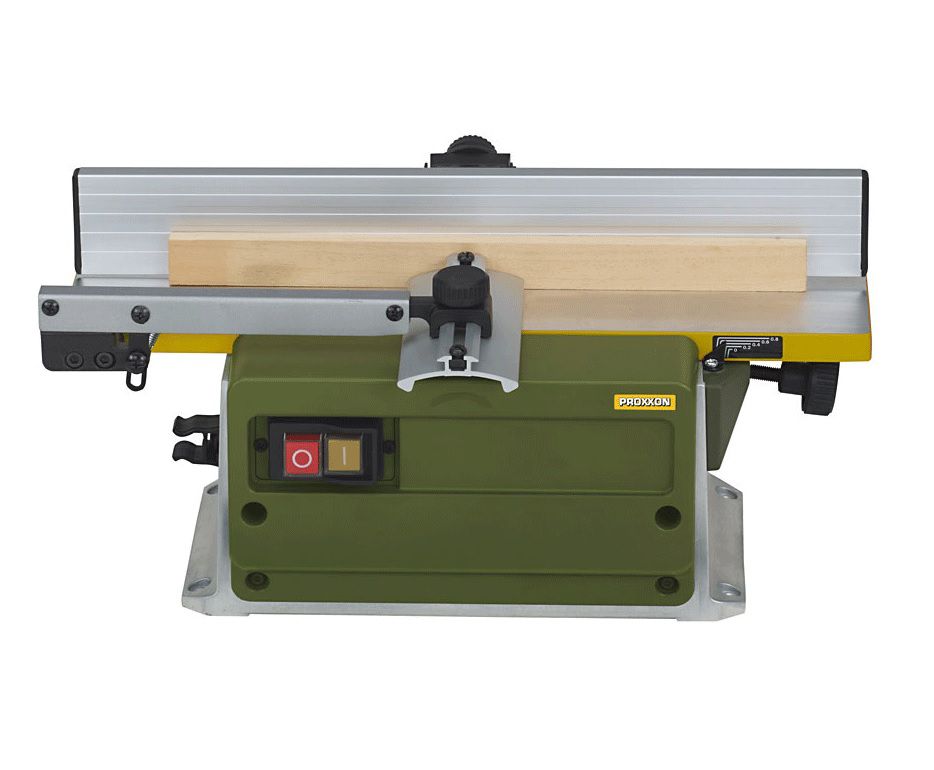

Proxxon Surface Planer AH 80 230v

Proxxon Surface Planer AH 80 230v

ref: 27044

• All load bearing components are made from CNC machined diecast alloy housed inside a nylon reinforced polyamide casing.
• The infeed/out-feed tables are also cast aluminium, ground to a fine finish. These give a working surface area of 400 x 80mm.
• The 2 x 82mm double sided HSS blades are fitted to a precision balanced block and rotate at 6,000 rpm to give a mirror like finish.
• The maximum depth of cut is 0.8mm, a clear calibrated indicator showing the setting from 0-0.8mm.
• There is an 55mm high alloy fence which almost covers the full length of the tables for maximum material support. This can also be tilted to 45°.
• The 35mm extractor outlet should be connected to a suitable vacuum extractor.
• Fully guarded for safety, plus a push stick is supplied.
• Planing depth capacity of 0.8mm and a planing width maximum of 80mm.

• 230V. 200W. 50/60Hz.
• Table 400 x 80mm.
• Planing width 80mm.
• Maximum chip removal (infeed) 0.8mm.
• Speed 6,000rpm.
• Weight 5.5kg.
• Insulated to class 1.
