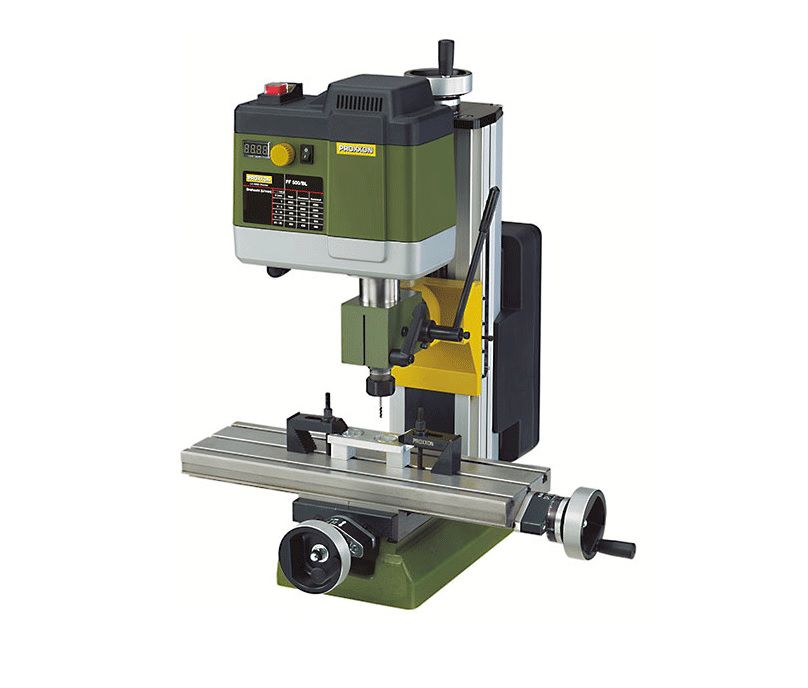

Proxxon Milling Machine FF 500/BL 230v

Proxxon Milling Machine FF 500/BL 230v

ref: 24350

• The FF 500/BL features the latest technology with a brushless direct drive.
• It is quiet and vibration-free in use with high precision. It boasts a wide speed range, variable from 200 to 4,000rpm, with a clear four-digit display.
• Electronic speed control and speed sensors guarantee high torque when using large milling cutters at lower speeds.
• The solid column has dovetail slideways with adjustable jib strips for smooth operation and zero play.
• The milling head can be angled both left and right by 90° either way.
• The spindle sleeve is lockable and pre-machined should you wish to fit the optional fine feed.
• The spindle uses ER20 collets guaranteeing trouble-free tool holding and maximum potential.
• The FF 500/BL includes four ER20 collets (6, 8, 10 and 12mm).
• Turning a hand wheel on top of the main column adjusts the head height (Z axis).
• All three hand wheels (X, Y and Z axes) have adjustable scale rings.
• One revolution is equal to 2mm, with coarse divisions of 0.1mm and fine divisions of 0.02mm.
• The solid plane-milled steel compound table features three MICROMOT standard T-slots.
• Quiet, vibration-free brushless direct drive, high torque at low speeds
• Solid plane-milled table in steel (400 x 125mm) with three T-slots

• 230V. 400W. 50/60Hz.
• Spindle speeds 200 - 4,000rpm. Throat 125mm.
• Sleeve stroke 30mm.
• Column 120 x 100 x 430mm.
• Table 400 x 125mm.
• Transverse range vertical (Z-axis) 220mm, transverse (X-axis) 310mm, depth (Y-axis) 100mm.
• Dimensions: H = 750mm, W = 550mm, D = 550mm.
• Weight approx. 47kg.
• Note: Clamping jaws, milling machine and work piece are not included in the scope of delivery.
