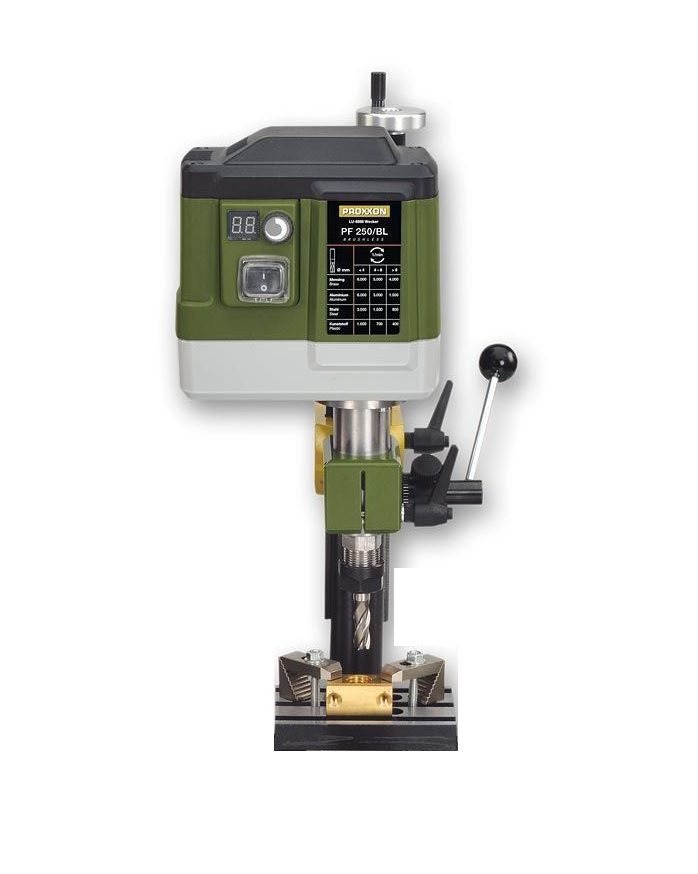

Proxxon Mill / Drill Head PF 250/BL 230v

Proxxon Mill / Drill Head PF 250/BL 230v

ref: 24112

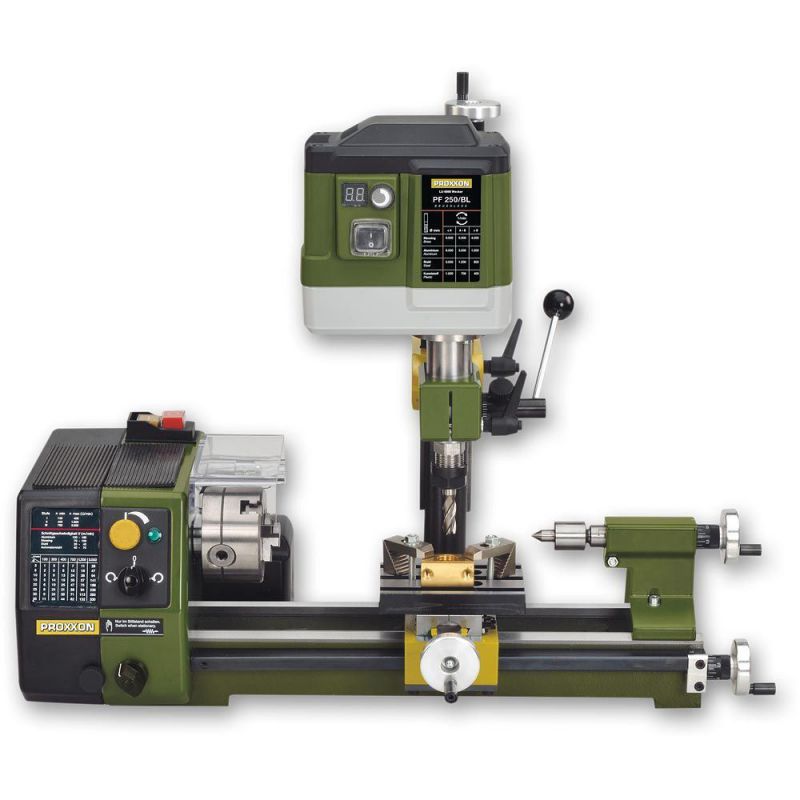

Converts your lathe PD 250/E or PD 400 into a complete machining centre.

• The milling PF 250/BL is designed and built for milling and drilling on a PROXXON PD 250/E or PD 400 lathe. Both of which are already drilled accept this mill/drill head.
• The mill/drill’s table replaces the lathe's top slide, thus adding a compound table, with X-Y travel being longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots.
• The millhead tilts up to 90° left and right. Speed can be pre-selected from 400 - 6,000rpm, the head features a digital speed indication.
• Speed sensors guarantee high torque also in the lower speed range.
• The tool holder uses ER 16 collets, the PF 250/BL is supplied with 6mm, 8mm and 10mm collets.
• A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications.
• Lathe not included.

• Diameter of Column: 35 mm
• End Milling Capacity: 10 mm
• Face Milling Capacity: 10 mm
• Head Tilt: 90° - 0° - 90°
• Lateral Table Movement: 170 mm
• Longitudinal Table Movement: 65 mm
• Max Drilling Mild Steel: 10 mm
• Nett Weight: 17 kg
• Nose of Spindle to Table [Max]: 200 mm
• Overall L x W x H: 180 mm x 130 mm x 500 mm
• Plug Fitted: UK 3 pin plug
• Power: 250 W
• Rating: Home/Light Trade
• Spindle Speed: 400 - 6,000 rpm
• Spindle Taper: ER16 Collet
• Spindle Travel: 30 mm
• T Slot Size: 12 mm x 8 mm
• Table Size: 110 mm x 70 mm
• Throat: 65 mm
• Voltage: 230 V
