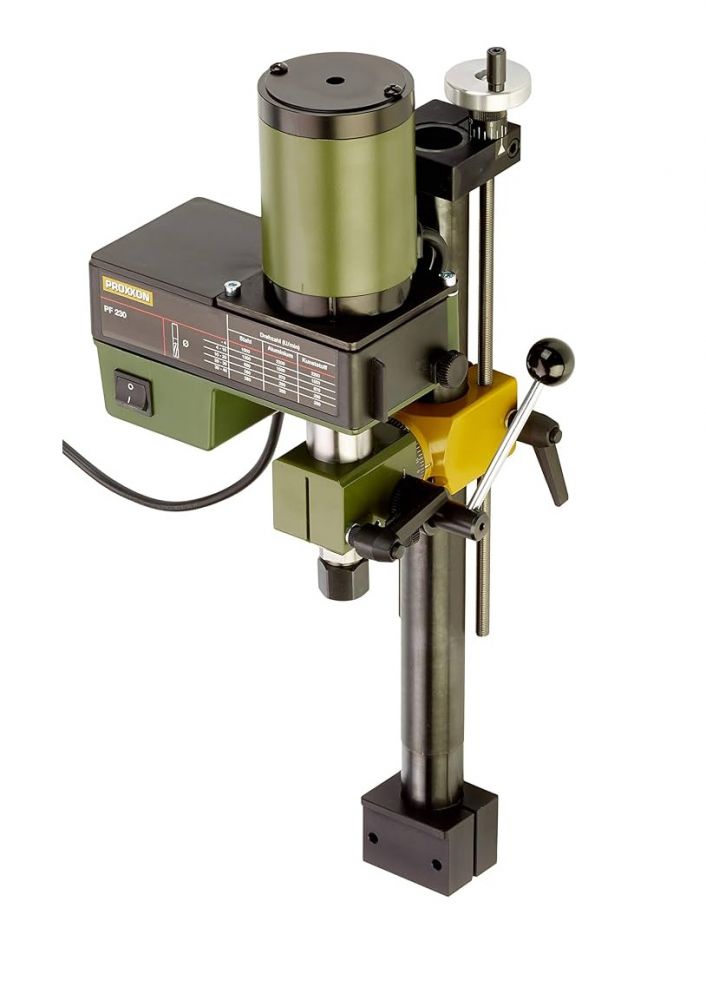

Proxxon Mill / Drill Head PF 230 Attachment for Lathe PD 400 - 24104

Proxxon Mill / Drill Head PF 230 Attachment for Lathe PD 400 - 24104

• Includes column (35 x 400mm), mounting bracket and fastening screws.
• For mounting on the PD 400.
• The lathe's top slide is replaced with the table (supplied) of 110 x 70mm, with 3 T-slots 12 x 6 x 5mm.

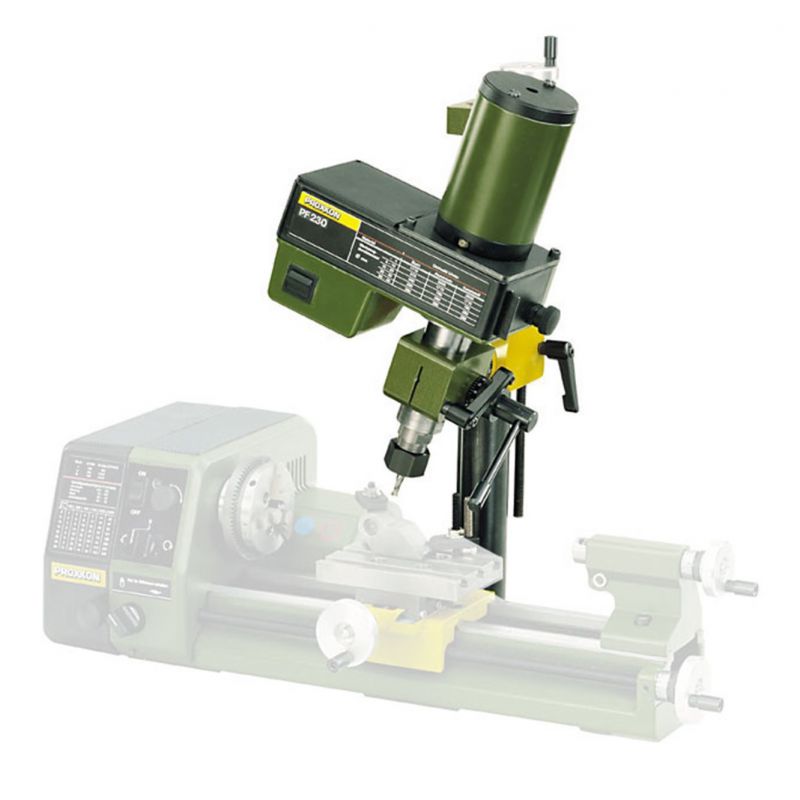

• The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively.
• The mill/drill head is identical to the miller FF 230.
• Three collets of sizes 6 - 8 and 10mm are included.
• Note: Lathe, milling cutters, work clamps and blocks not included in system.
