Proxxon MICRO Shaper MP 400 230v

Proxxon MICRO Shaper MP 400 230v

ref: 27050

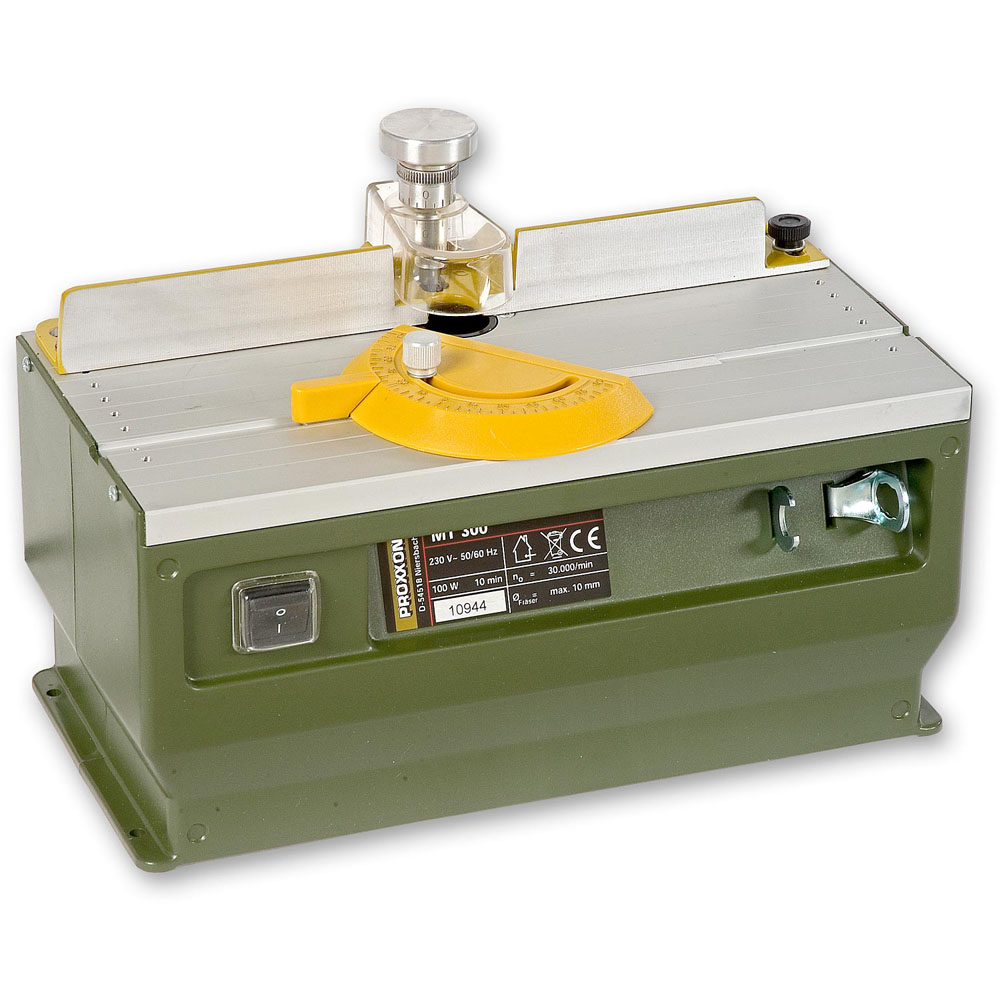

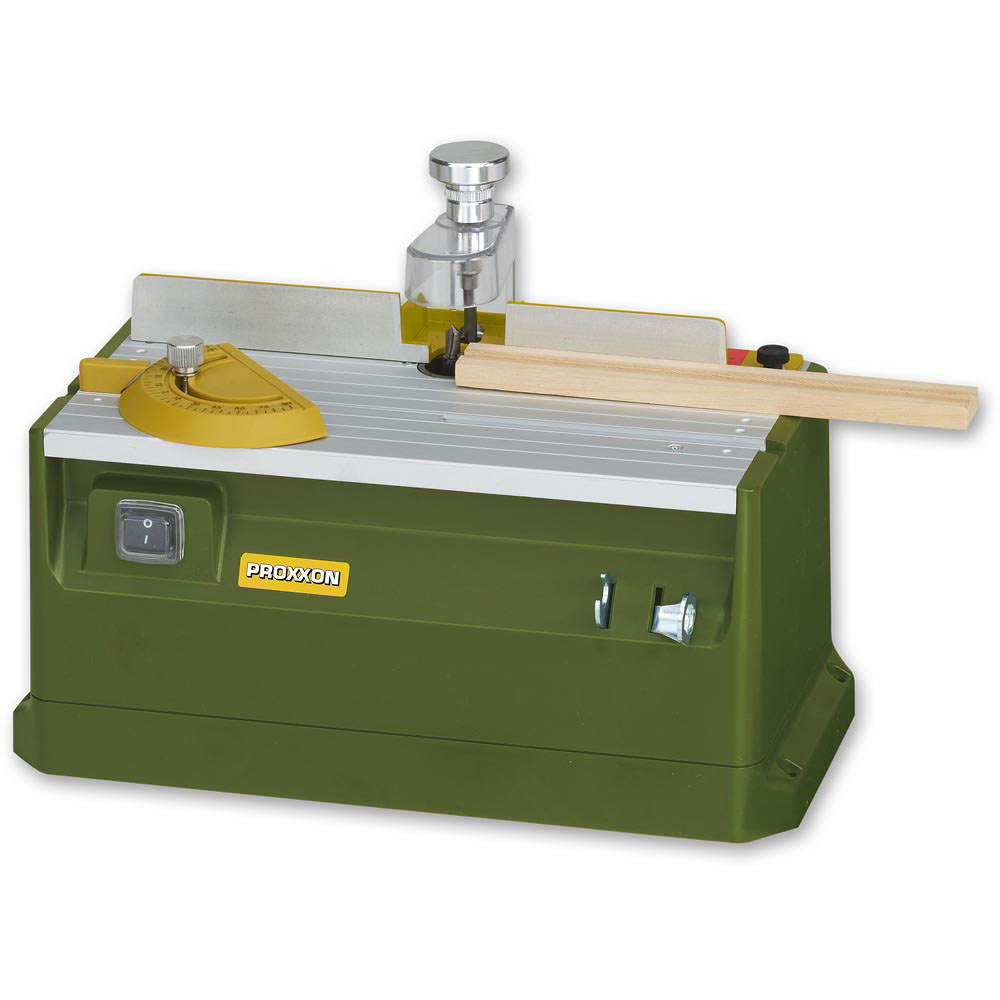

• A cross between a router table and moulder/shaper in miniature. This machine is a self-contained unit using miniature router cutters, held in the collets 2.4, 3, and 3.2mm, to produce small detailed profiles used in dolls house, model making projects and similar precision work.
• For chamfering, cutting grooves, slots, recesses, radii and other profiles.
• For crafting picture frames and for separating. Also enables exact manufacturing of edges and longitudinal cuts (for model building, e.g. for doors, flaps and housing parts). Powerful dust-protected motor with toothed belt drive.
• Double ball-bearing spindle. Tool holder with triple slit precision collets (one each of 2.4 - 3 and 3.2mm are included).
• Milling cutter height adjustment by hand wheel. Stable aluminium table with longitudinal and angle stop as well as cutter guard.
• Powered by a long-life 100W motor achieving 25,000rpm no load speed. The head is fully adjustable within a cutter guard/hold down, the incremental adjustment can be zeroed with one revolution equalling 1.0mm in height and one division on the scale equalling 0.05mm in height. Measuring 300 x 150mm the table is a generous well made surface supporting a full length parallel fence and slotted for the mitre fence or any jigs or sub-tables you might want to traverse across the cutter. Dust extraction is essential with this unit via the 37mm outlet provided and which is suitable for connection to a standard vacuum cleaner.
• Head is fully adjustable within a cutter guard.

• 230V. 100W. 50/60Hz. 25.000/min.
• Height adjustment with scale ring adjustable to 0 (1 revolution = 1, 1 graduation = 0.05mm).
• Milling table 300 x 150mm.
• Weight approx. 2.0kg.
