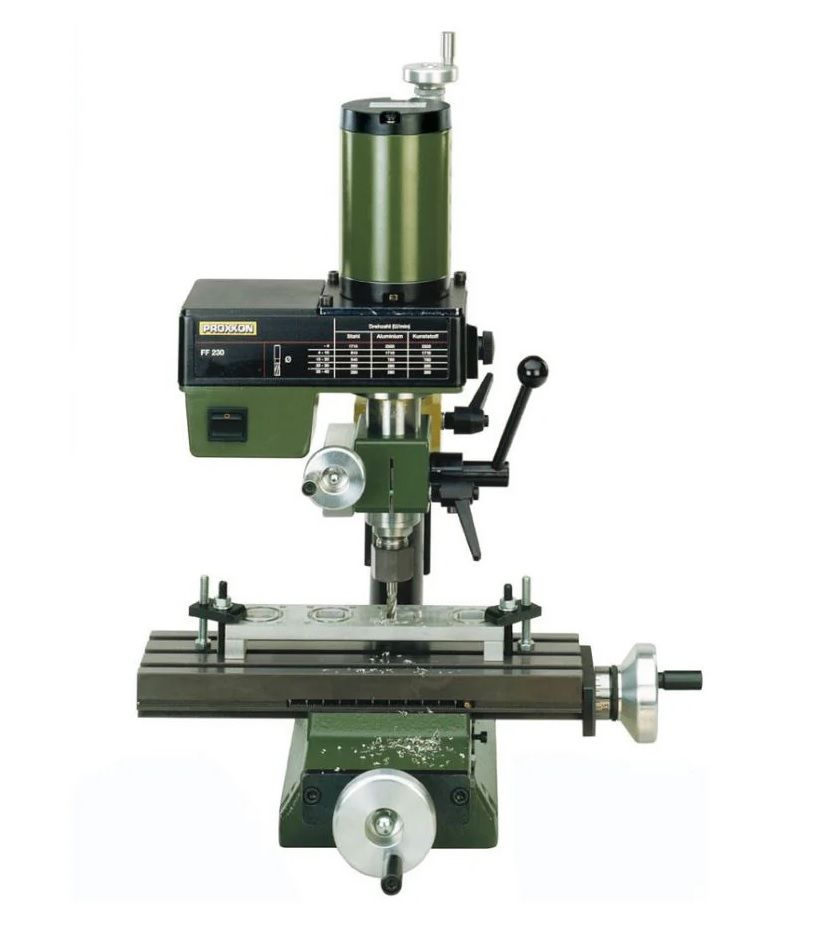

Proxxon MICRO Milling Machine FF 230 230v

Proxxon MICRO Milling Machine FF 230 230v

ref: 24108

• This is an extremely accurate small mill for model making and precision part making.
• The headstock swivels through 360°, indicated on a scale.
• Height is adjusted via a zero adjustable handwheel, also used as fine feed when milling (one revolution equals 1mm travel).
• The quill and headstock may be locked in position, essential when milling.
• Spindle speeds range from 280-2,200 rpm.
• The powerful motor drives the spindle via a poly-V belt, yielding high torques, especially at lower speeds.
• 6,8 and 10mm collets are included.
• The solid table is T-slotted to the MICROMOT norm of 12 x 6 x 5mm.
• Large 270 x 80mm machined steel cross table with 3 T-slots
• X x Y travel = 170mm x 65mm
• Column diameter 35 x 400mm long

• 230V. 140W. 50/60Hz.
• Spindle speeds of 280 - 550 - 870 - 1,200 - 1,500 and 2,200rpm. 30mm travel.
• Table size 270 x 80mm, column 35 x 400mm long.
• X-Ytravel is 170 x 65mm.
• Maximum height 180mm and depth 130mm.
• Overall height approx. 500mm.
• Weight approx. 17kg.
