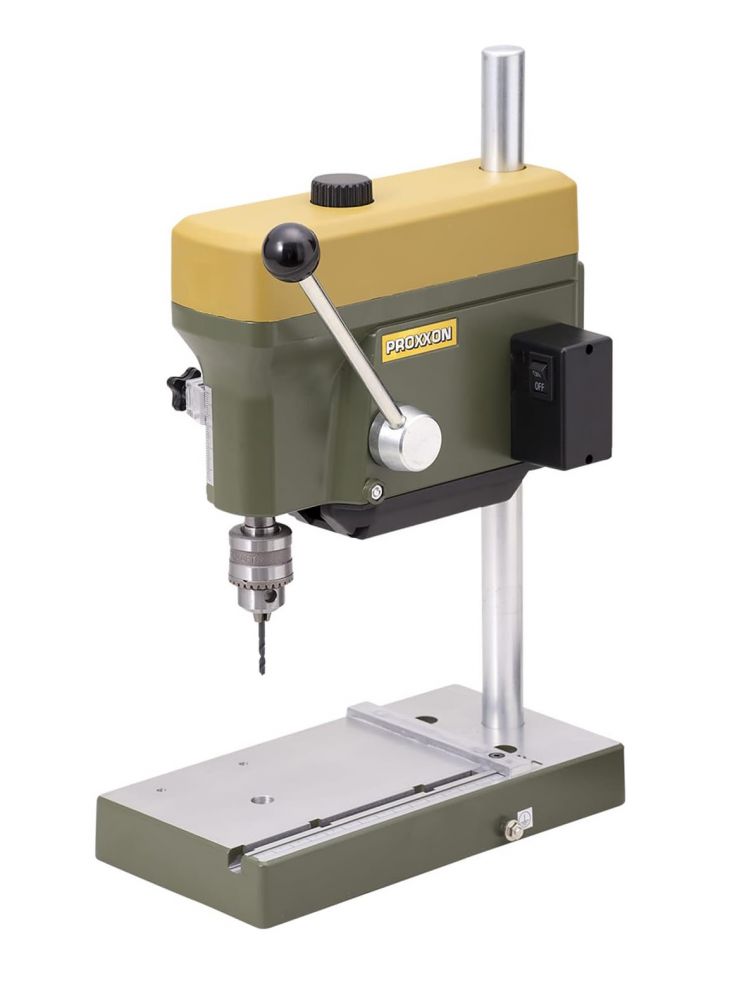

Proxxon Bench Drill Machine TBM 220 230v

Proxxon Bench Drill Machine TBM 220 230v

ref: 28128

• The machined worktop is of high quality, ribbed die-cast aluminium (220 x 120mm), featuring an adjustable fence with scale and a solid, hard-chromed steel column, 280 high x 20mm diameter.
• The super stable die-cast head comes with a VDE approved 230V, 85W motor.
• Power transmission is by aluminium pulleys and flat belt.
• There are three spindle speeds of 1,800, 4,700 and 8,500 rpm.
• Chrome feed lever with adjustable depth scale. The spindle is supported by three high quality sealed bearings.
• The recessed spindle is for insertion of MICROMOT steel collets, but also threaded for drill chucks 3/8" thread giving extremely high rotational accuracy with 30mm feed.
• The quill diameter is 32mm, with return spring.
• Throat depth, column to drill spindle, 140mm.
• Quick coarse height adjustment of headstock is with clamp levers.
• Maximum height 140mm.
• Supplied with six triple slit precision collets (1.0, 1.5, 2.0, 2.4, 3.0, 3.2mm).

• 230V. 85W. 50 - 60Hz.
• Spindle speeds of 1,800, 4,700 and 8,500rpm.
• Extremely high rotational accuracy, 30mm feed.
• Throat depth 140mm.
• Six triple slit precision collets for shaft sizes 1 - 1.5 - 2 - 2.4 - 3 - 3.2mm are included. 3/8" thread.
• Weight 3.3kg.
