Metabo KFMV 17-15 F Metal Bevelling Tool 110V in MetaBOX

X
Product Code: MET/601770610
Brand: Metabo
Available to Order Please Contact Us
or Call 01726 828 388
£2,019.81 Inc. VAT
£1,683.18 Exc. VAT
Metabo

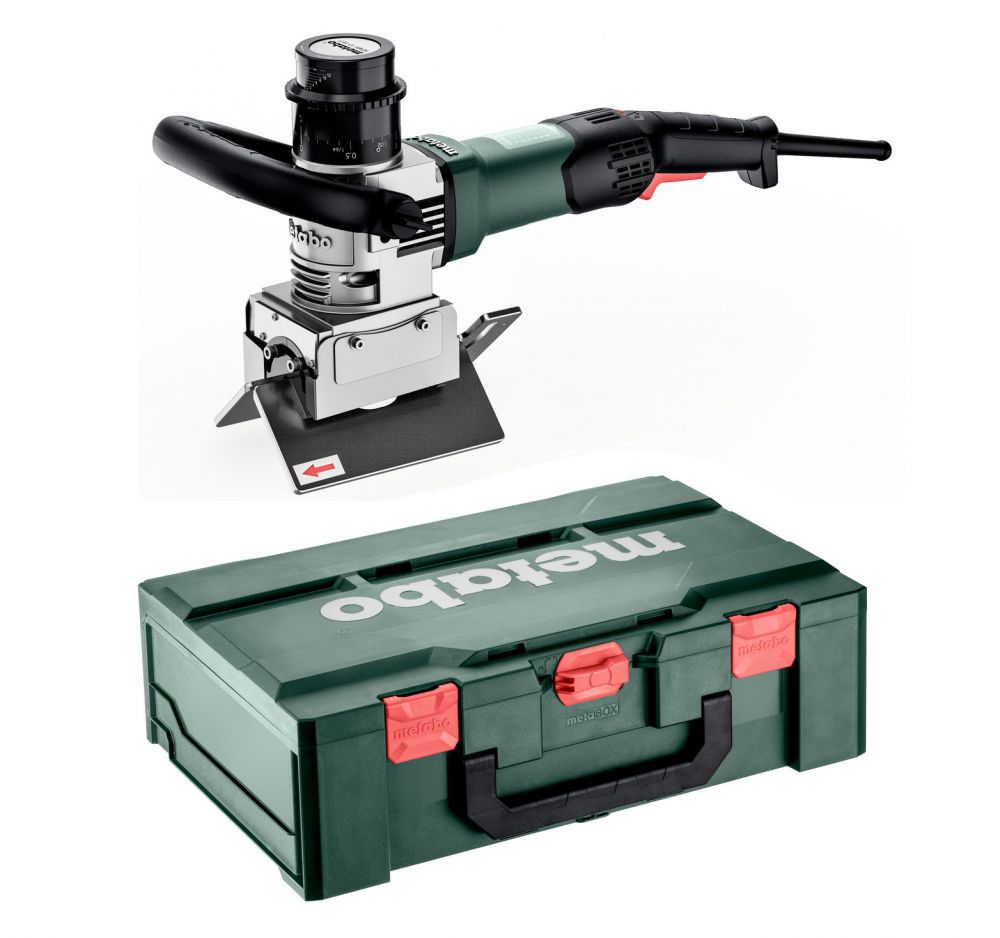

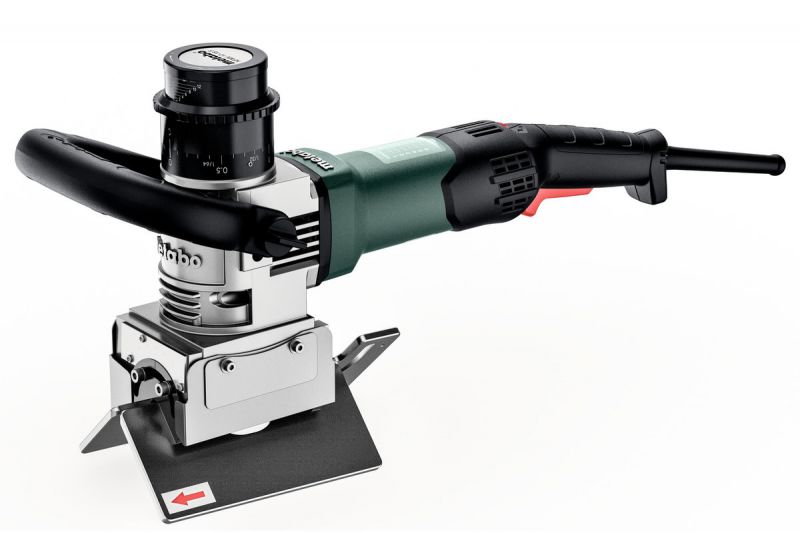

Metabo KFMV 17-15 F Metal Bevelling Tool 110V in MetaBOX

ref: 601770610

This item replaces Metabo Bevelling Tool KFM 16-15

Key Features

  • Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation
  • One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
  • Precise setting of the chamfer angle directly via the guide plates
  • Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
  • Guide stop for a uniform finish and high quality surface finish when processing straight edges
  • Controlled working by virtue of large-scale guide plates
  • Stop roller to guide along pipes for easy preparation of weld seams
  • Bail handle adjusts without tools for secure, even guiding
  • Metabo Marathon-motor with patented dust protection for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
  • Electronic overload protection, soft start and restart protection
  • Slim design for ideal handling
  • Protection of the user by virtue of lateral plates for conveying the chips
  • With metaBOX, the intelligent solution for transport and storage



Items included

  • 3 Carbide indexable inserts Universal
  • Stop roller
  • Screwdriver for Torx screws 15
  • Screwdriver SW 4 with T-handle
  • Open-jawed spanner SW 10
  • Bow-type handle
  • metaBOX 185 XL



Technical details

  • No-load speed: 6200 - 12000 rpm
  • Rated input power: 1400 W
  • Output power: 740 W
  • Type of edges: Chamfer
  • Chamfer angles: 0 - 90 °
  • Max. chamfer width 45°: 21 mm
  • Max. chamfer height at 45°: 15 mm
  • Grading of cutting depth setting: 0.1 mm
  • Curves smallest outer Ø: 100 mm
  • Weight (without power cable): 6.3 kg
  • Cable length: 3.9 m
  • Vibration: 5 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Sound pressure level: 99 dB(A)
  • Sound power level (LwA): 107 dB(A)
  • Uncertainty of measurement K: 3 dB(A)



Metabo KFMV 17-15 F Owners Manual
