Manpa Power Carving - 3" Multi Cutter - Master (M14)

Manpa Power Carving - 3" Multi Cutter - Master (M14)

ref: MP21-3-M

• Basic kit for beginners.
• 3" and 4" blades can be used.
• Includes 3" and 4" blade, plus extra extensions.
• 200mm extension for enhanced reach.
• Provides smooth carving with sharp carbide.
• Designed for detail and sculpting performance.
• Features vibration reduction for user comfort.
• Angle grinder not included. Ensure compatibility by checking "Spindle size" and "angle grinder".

• Angle Adjustability: Easily change the angle between 90° - 180° for access to all working areas.

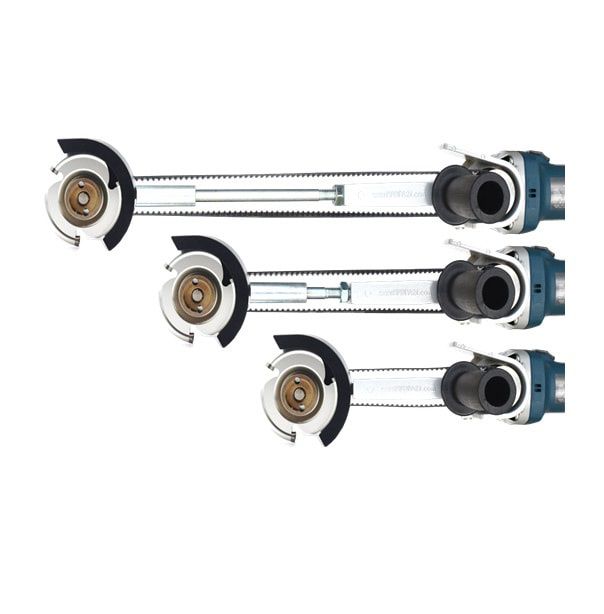

• Extended Reach: The 200mm basic length, designed with human body structure in mind, can be extended to reach deep areas up to 270mm and 350mm. (Extensions included).
• Versatile Blade Compatibility: The shaft and nut are separable, allowing users to easily select and change blade shapes (e.g., Triangle, Square, Round 12mm) with a special spanner.
• Interchangeable Heads: The basic head is for a 3" or 4" cutter, but the 2" head (not included) can be used in it's place for 2" blades.
• Enhanced Sanding: Suitable for both rough sanding with Tungsten Carbide and finish sanding with a Sanding Flex (rubber backer pad). The sanding function has been significantly improved.
• Safety Cover: Prevention of kick back, prevention of sawdust flying.

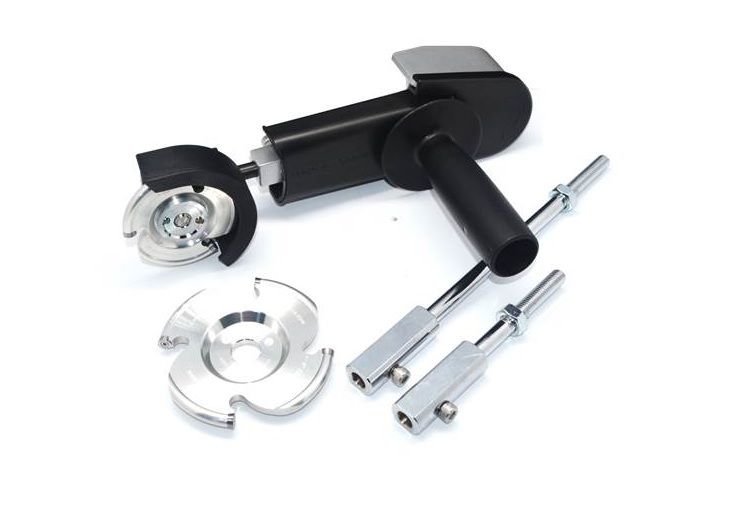

• Multi cutter housing and 3" circular cutter
• 4" Circular Cutter
• Body & Safety Cover
• Wide Handle
• 4" safety cover
• Drive Gear
• Adapter Ring 42.50 & 44.00
• Star Wrench & L Wrench
• Spanner
• ​Timing Belt 200, 270, 348 XL
• Extension Tools (270, 348 mm)

• ​Model :   MP21-3-M
• ​​Max. Blade Diameter :   100 mm @ 4” Blades
• ​Max. Carving Depth :   35 mm @ 4” Blades
• ​Max. RPM :   15,000 rpm @ extension spindle
• ​Power :   630 ~750 Watt
• ​​Disc Bore Size:   16.03 mm
• ​Weight :   0.8 Kg (without angle grinder)
• ​Overall Length: 200, 270, 348 mm
• Working Width :   35 mm @ 4” Blades
• Blade Width :   8 mm
• Number Of Teeth :   4 EA @ 4” Blades
