Manpa Power Carving - 2" Belt Cutter - Master (M14)

Manpa Power Carving - 2" Belt Cutter - Master (M14)

ref: MP21-2-M

• Requires 2" blades for operation.
• 200mm extension for enhanced reach.
• Includes 2" blade and extra extensions
• Provides smooth carving with sharp carbide.
• Designed for detail and sculpting performance.
• Features vibration reduction for user comfort.
• Angle grinder not included. Ensure compatibility by checking "Spindle size" and "angle grinder".

• Angle Adjustability: Easily change the angle between 90° - 180° for access to all working areas.

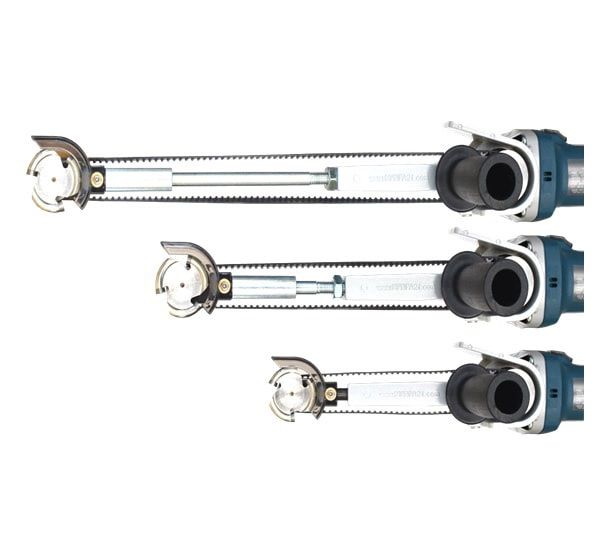

• Extended Reach: The 200mm basic length, designed with human body structure in mind, can be extended to reach deep areas up to 270mm and 350mm. (Extensions included).
• Versatile Blade Compatibility: The shaft and nut are separable, allowing users to easily select and change blade shapes (e.g., Triangle, Square, Round 12mm) with a special spanner.
• Interchangeable Heads: The basic head is for a 2" cutter, but with the optional 3" multi-cutter head, cutters ranging from 2" to 4" can be used.
• Enhanced Sanding: Suitable for both rough sanding with Tungsten Carbide and finish sanding with a Sanding Flex (rubber backer pad). The sanding function has been significantly improved.
• Safety Cover: Prevention of kick back, prevention of sawdust flying.

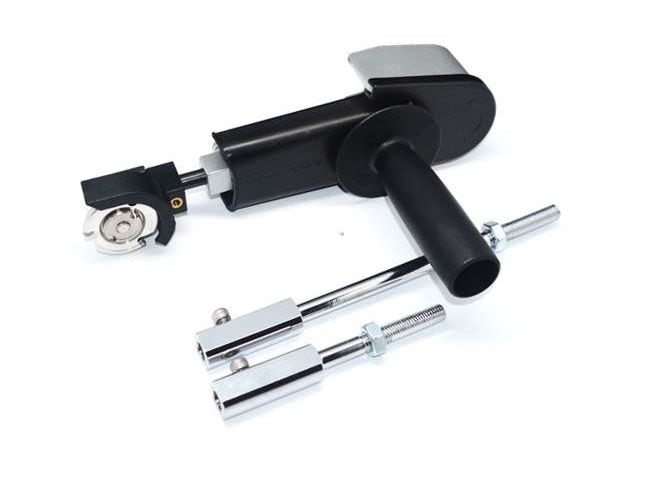

• Belt cutter housing and 2" circular cutter
• Body & Safety Cover
• Wide Handle
• Drive Gear
• Adapter Ring 42.50 & 44.00
• Star Wrench & L Wrench
• Spanner
• ​Timing Belts 200, 270, 348 XL
• 2 extension tools (270 and 348 mm)

• ​Model :   MP21-2-M
• ​​Max. Blade Diameter :   45 mm​
• ​Max. Carving Depth :   10 mm @ 2” Blades
• ​Max. RPM :   16,500 rpm @ extension spindle
• ​Power :   630 ~750 Watt
• ​​Disc Bore Size:   9.5 mm
• ​Weight :   0.7 Kg (without angle grinder)
• ​Overall Length: 200 mm
• Working Width :   10 mm @ 2” Blades
• Blade Width :   6, 8 mm (option)
• Number Of Teeth :   3 EA @ 2” Blades
