Mafell Erika 70Ec Pull-Push Precision Saw System 240v - 972021

Mafell Erika 70Ec Pull-Push Precision Saw System 240v

ref: 972021

• As the world's first pull-push saw, the ERIKA has become the epitome of mobile sawing since its introduction. After almost 40 years of experience, the current generation is now endowed with everything that users expect from a modern pull-push saw.

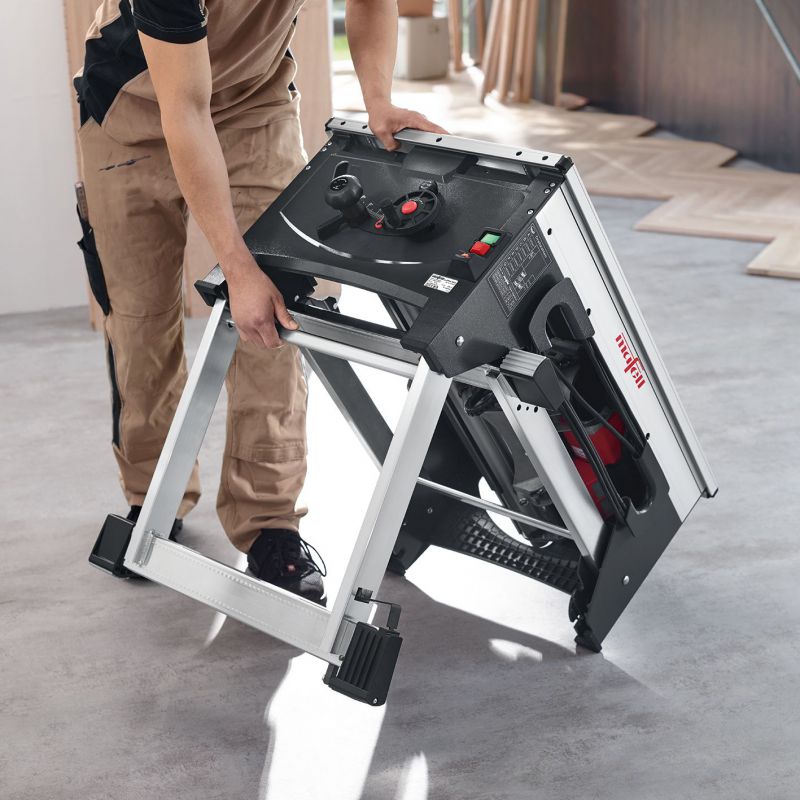

• The built-in /Quickstand sets the ERIKA on 4 stable aluminium legs within seconds. Protective rubber stoppers on the feet also prevent slipping or knocking.
• The unique suction channel concentrates the sawdust and extracts it to the rear. Thanks to this new development, your dust extractor is used even more effectively. The result: clean work on a clean construction site! Operation of the ERIKA leaves no questions unanswered. Clearly designed operating elements are all logically arranged on the front of the machine!
• Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to process other materials in addition to wood, such as plastics or aluminium profiles.
• Further advantages of the ERIKA 70: Extremely stable table profile, tilt range from -3° to 48°, lowerable riving knife an maximum cutting length of 340 mm ( 13 3/8 inch).
• New type of suction channel revolutionises extraction – for less dust when working.
• Lightest pull-push saw in its class – for quick and easy transportation.

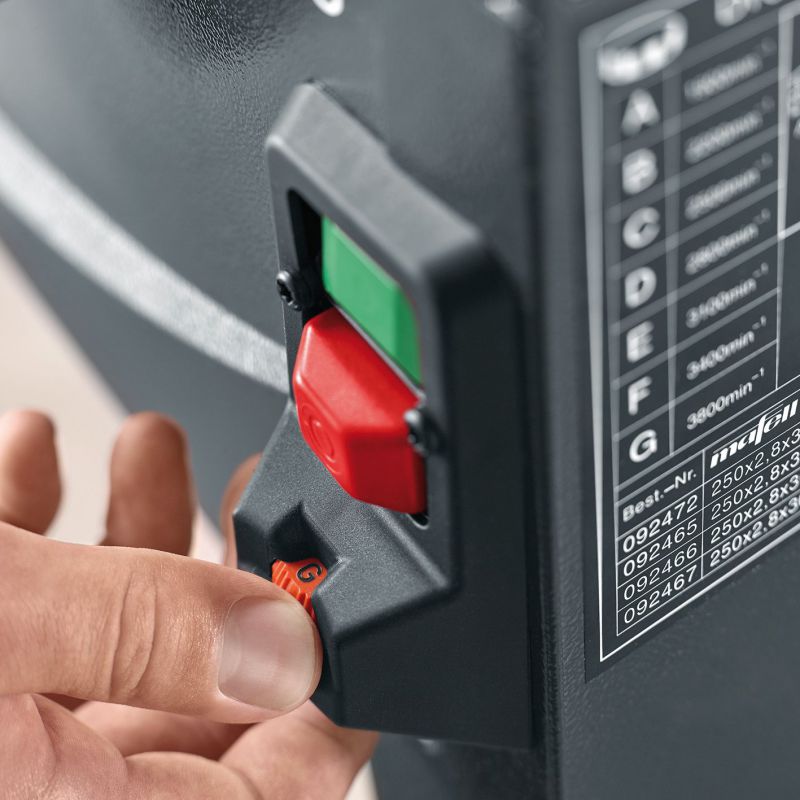

• Adjustable speed – for individual processing of wood, plastics or aluminum profiles.
• With voltage loss switch for protection against uncontrolled reconnection after a power interruption.

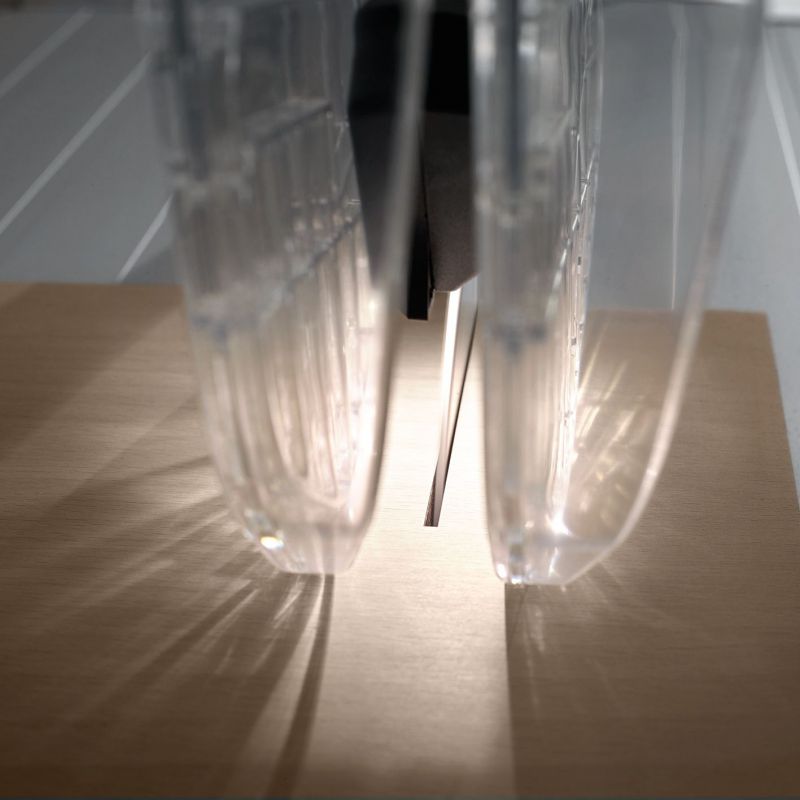

• With sensor-controlled working light

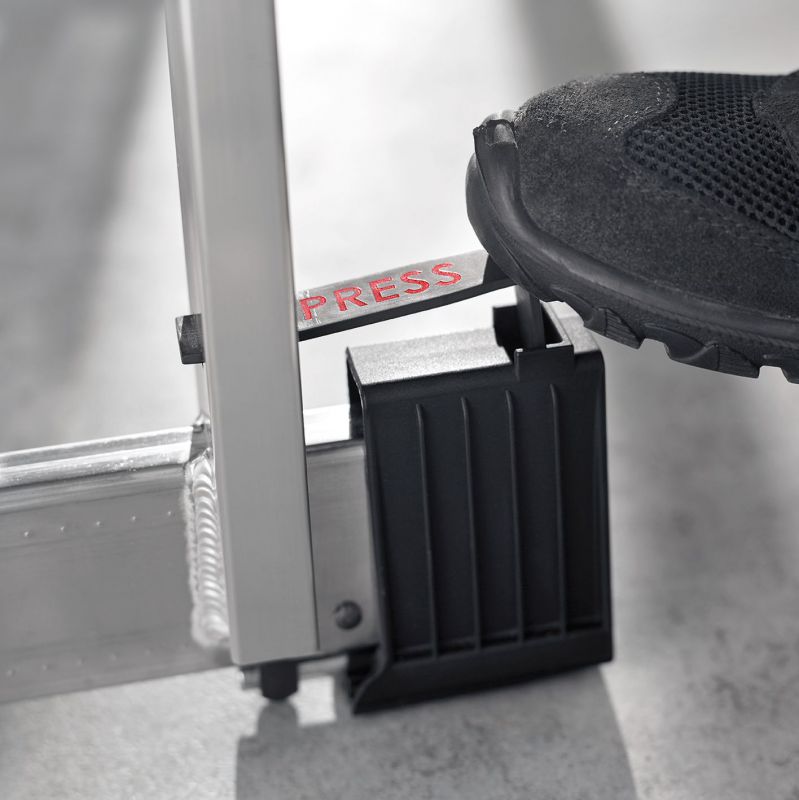

• Built-in Quickstand
• Comprehensive range of optional accessories
• Mafell CUprex High-Performance Motor

• Cross and rip cuts
• Circular saw bench functionality
• Bevel cuts up to 48°
• Compatible materials include solid wood, board materials, parquet and laminate flooring, aluminum profiles and plastics

• 1 TCT saw blade 225 x 1.8/2.5 x 30 mm (8 7/8 in.), AT, 32 teeth; Ref. No. 092460
• 1 Push stick; Ref. No. 034901
• 1 Allen key 6 mm; Ref. No. 093081
• 1 Extraction set with 2 connectors; Ref. No. 093639
• 1 Clamping device; Ref. No. 038294
• 1 Fold-away support Quickstand
• 1 Mains cable 4 m (13.1 ft)
• 1 Universal guide fence with fence extension; Ref. No. 201611

• Cutting height: - 1 - 72 mm
• Cutting height: - 1/16 - 2 13/16 in
• Cutting height at 45°: - 1 - 49 mm
• Cutting height at 45°: - 1/16 - 1 15/16 in
• Tilt range: -3 - 48 °
• Cutting length: 330 mm
• Cutting length: 13 in
• Table top dimensions: 525 x 818 mm
• Table top dimensions: 20 11/16 x 32 3/16 in
• Working height without stand: 415 mm
• Working height without stand: 16 5/16 in
• Working height with stand: 891 mm
• Working height with stand: 35 1/16 in
• Nominal No. of strokes – no load: 2.050 - 4.300 1/min
• Nominal power input: 2250 W
• Nominal power input: 3.0 hp
• Extraction connection diameter: 58 mm
• Extraction connection diameter: 2 5/16 in
• Weight ( with universal guide fence): 37,2 kg
• Weight ( with universal guide fence): 82 lbs
• Cutting speed: 24,2 - 50,7 m/s
• Universal motor: 230 V / 50 Hz
