Laserliner MasterCross-Laser XPG Pro Cross-Line Laser - 031.430L

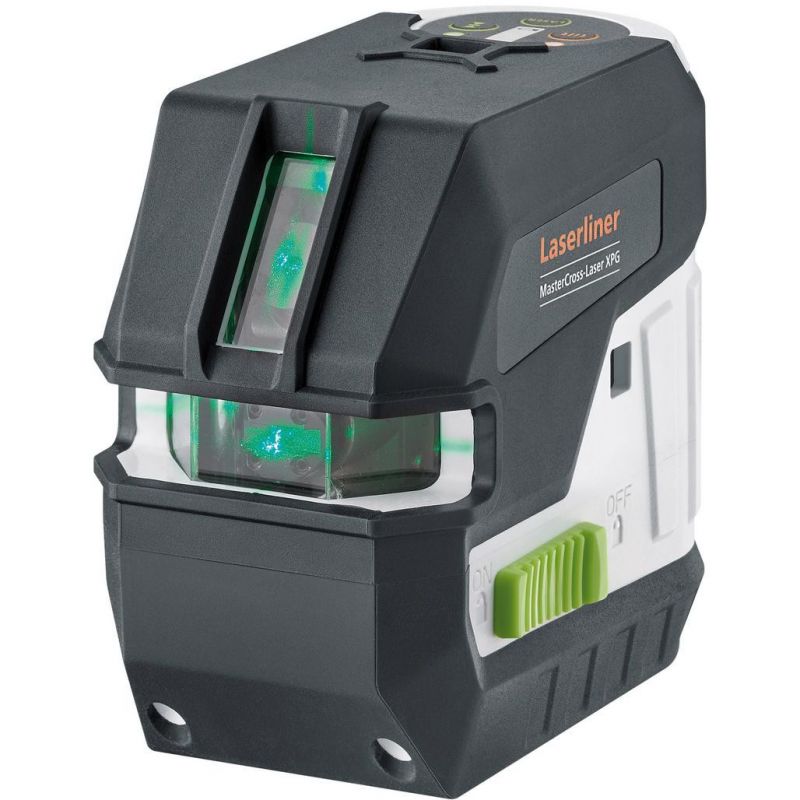

Laserliner MasterCross-Laser XPG Pro Cross-Line Laser

ref: 031.430L / 32163

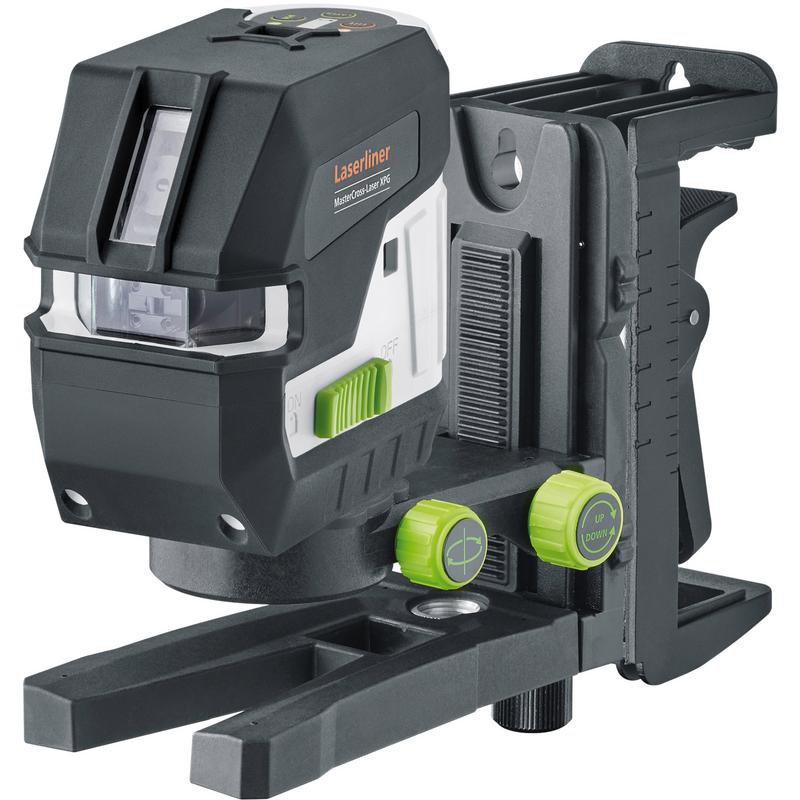

Its bright laser cross makes this cross-line laser with green laser technology the laser of choice for precise alignment of horizontals, verticals and slopes. It also projects two side points and two plumb points that are characterised by an especially high degree of visibility and that are at a 90° angle to each other. This enables efficient plumb lining, even in very high rooms. Markings can be easily transferred from wall to wall with the side laser points, for example, when painting, aligning wooden panels or installing electrics. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles. The vernier adjustment mechanism enables precise vertical adjustment of the laser lines to edges. Supplied with battery pack.

• Accurate horizontal and vertical alignment of objects
• Supplied with battery pack
• Good visibility through green laser technology
• 4 Point Projection: Laser points top, bottom and at the side in 90° configuration for exact marking transfer from wall to wall
• Plumb function for synchronous working on floor and ceiling
• Especially bright plumb points for use in buildings with high rooms
• Magnetic clamp and wall bracket for hanging, horizontal and vertical clamping to profiles, and attaching to metallic surfaces
• MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges and adjusting screw to adapt the bracket to different profile thicknesses
• Easy alignment of slopes with manual tilt function
• Reliable measurement through automatic power off with ADS tilt

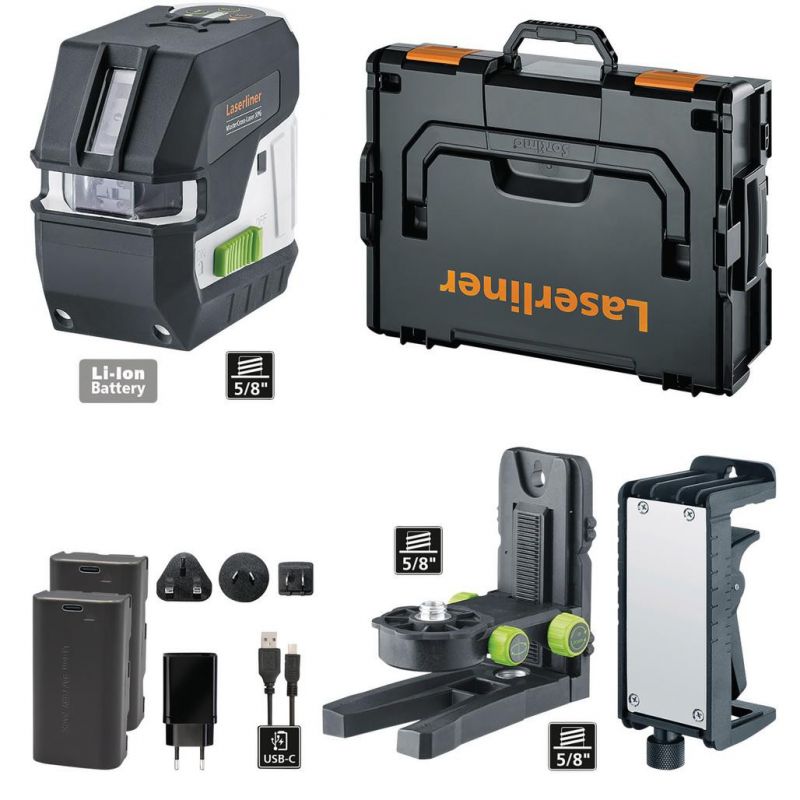

• 1 x Laserliner 031.430L MasterCross-Laser XPG Pro Cross-Line Laser
• 1 x CrossGrip Plus
• 2 x HighCapacityPack (Li-Ion)
• 1 x Network/charging device incl. international adapter
• 1 x USB-C-cable
• 1 x Carrying case

• Horizontal/vertical levelling: Yes
• Manual slope function: Yes
• Plumb laser (up/down): Yes
• Laser points (left/right): Yes
• Replaceable battery system: Yes
• Hand receiver mode: Yes
• Tilt warning function: Yes
• Self-Levelling Range: ± 2.5°
• Accuracy: ±0.2 mm/m
• Levelling: Automatic
• Visibility (Typical)*: 55 m
• Laser Wavelength: 515 nm
• Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
• Operating Time: approx. 8 hours
• Operating Conditions: 0°C 50°C
• Dimensions (W x H x D): 128 mm x 110 mm x 67 mm
• Weight: 588g (incl. Akkupack)
