Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function - 41967
Product Code: DRA/41967
Brand: Draper Expert
In Offsite Stock - Delivery in 4 to 5 Days
£126.30 Inc. VAT
£105.25 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

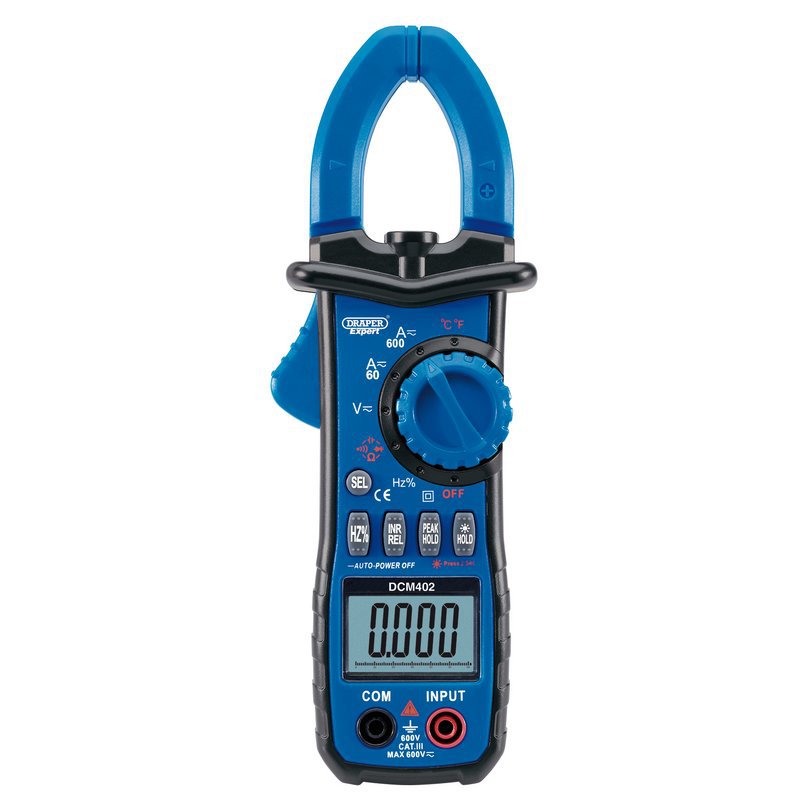

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
ref: 41967 / DCM402
Key Features
- Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
- Temperature testing
- Maximum jaw-opening diameter of 36mm
- Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
- Supplied with test leads, temp probe and a case
Specification
- AC Amps: 60A/600A
- AC Current: 60A/600A
- AC Voltage: 6V/60V/600V
- Automatic Power Off: Yes
- Battery: 3 x AAA (not supplied)
- Capacitance: 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
- DC Amps: 60A/600A
- DC Current: 60A/600A
- DC Voltage: 600mV/6V/60V/600V
- Diode on/off Test: Yes
- Dimensions: 228mm x 158mm x 58mm
- Duty Ratio: Yes
- Dwell: N/A
- Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
- Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Symbol Unit Data Hold: N/A
- TACH: N/A
- Temperature: -50 to 300ºC
- Temperature Range: -50°C - 1000°C/-58°F - 1832°F
- Weight: 400g (approx.)
