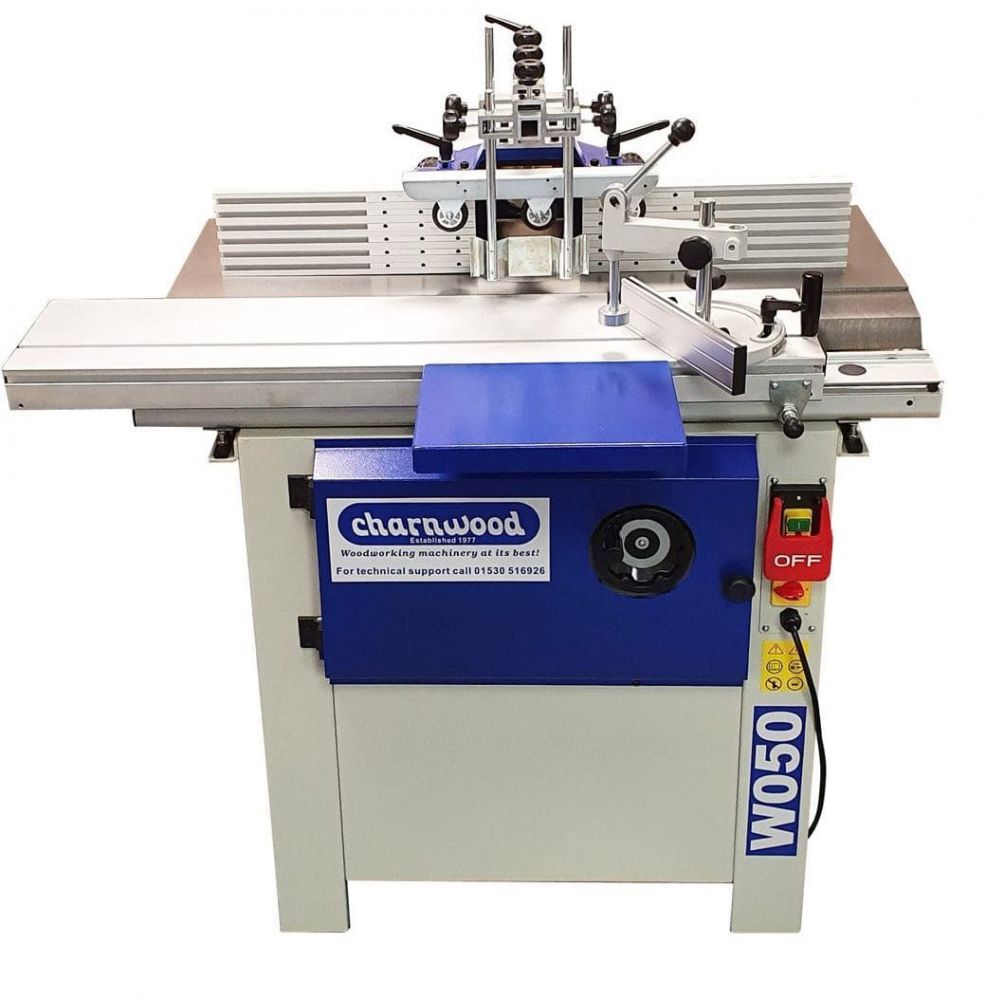

Charnwood W050 Tilting Spindle Moulder with Sliding Carriage

Charnwood W050 Tilting Spindle Moulder with Integrated Sliding Table

A powerful trade rated spindle moulder, capable of using tooling up to 200mm in diameter.

• 2.8kW Induction Motor with Brake
• Four Speeds with Digital read-out
• Sliding Beam 48" Capacity
• Cast Iron Main Table
• 45 degree Backwards Tilting Spindle
• Independently Adjustable Fences
• 30mm Spindle Included
• 1/4" & 1/2" Diameter Routing Spindle Included
• Spindle Runs In Both Directions
• Optional Outrigger with Squaring Arm (sold separately)

• A large precision ground cast iron table forms the main surface. In front of this sits a full width sliding bed, which includes a mitre fence and work clamp as standard equipment.
• A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current speed setting.
• The top spindle is removable and there are 2 options: Standard 30mm Spindle for cutter blocks and Routing spindle with 1/4" & 1/2" diameter collets.
• Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.
• Supplied with set of spindle spacers, table inserts (80mm, 110mm & 150mm), 1/4" & 1/2" routing collets, 2.0m power cable, 16amp industrial plug.
• A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
• Extra images above show optional spindle moulder ring fence and outrigger extension table (sold separately).

• Motor (induction) 2800w (3.75hp), 240v
• Main table size 1000mm x 360mm
• Sliding carriage size 1000mm x 240mm
• Sliding carriage stroke 1200mm
• Spindle diameter 30mm
• Spindle Tilt +5 to - 45 degrees
• Speeds 4 (1800, 3000, 6000 & 9000rpm)
• Vertical stroke 100mm
• Maximum tooling diameter (above table)    200mm
• Maximum tooling diameter (below table) 180mm
• Table aperture depth 50mm
• Table height 900mm
• Dust extraction outlet 100mm
• Dimensions (WxDxH) 1000mm x 1300mm x 1250mm
• Weight 218kg
• Rating Trade
• Warranty 5 Years
