Baileigh PR-514 Plate Roll 1550mm

Baileigh PR-514 Plate Roll 1550mm

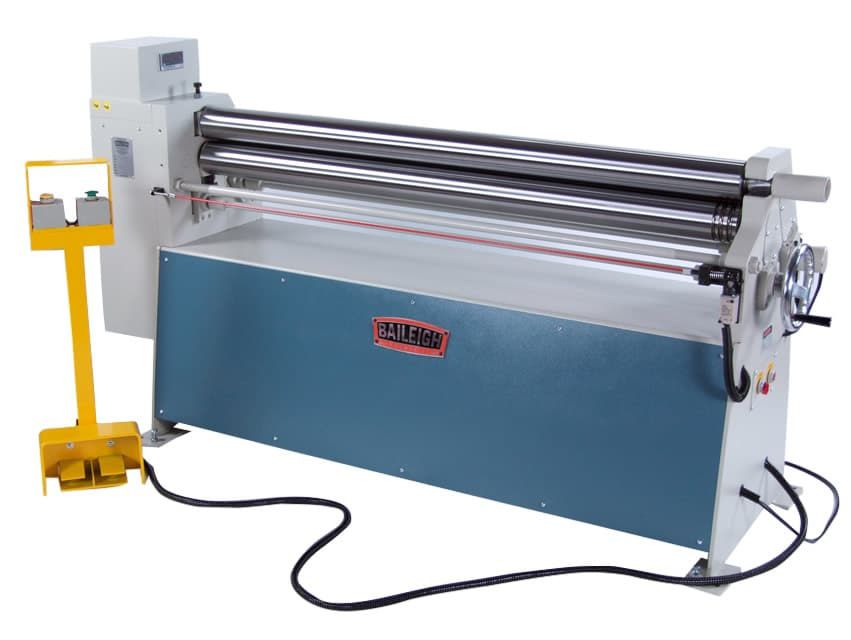

Baileigh Industrial sheet metal equipment has always offered great value in its line of machinery, and the PR-514 plate forming machine is no exception. The PR-514 is the perfect plate roll for small and medium rolling applications.

• This plate forming machine has a useful width of 5' and has a capacity of 14 gauge mild steel sheet metal.
• The PR-514 has a 1.5 HP 400 volt 3 phase motor that transfers power directly to the driven rolls.
• A second hydraulic motor controls the movement of the back roll.
• The operator controls all movements on the PR-514 via a remote pedestal. This control pedestal has foot pedal controls, and houses the buttons for advancing or retracting the back roll position.
• Back roll position can be monitored on the digital readout that is position at the head of the machine so no matter where you are operating the PR-514, the operator has a good line of sight to it.
• 1550mm forming width
• 2mm mild capacity
• Three driven rolls
• 9mm, 10mm & 13mm wire grooves

• Item Number PR-514
• Country of Manufacture Taiwan
• Forming Width 1550mm
• Driven Rolls 3
• Roll Speed 6 rpm.
• Upper Roll Dia. 95mm
• Roll Adjustment Back Hydraulic
• Roll Adjustment Pinch Manual
• Minimum Forming Dia 140mm
• Working Height Yes
• Capacity (Mild Steel) 2 mm
• Power 220V  1-Phase
• Shipping Weight 660 kgs
• Shipping Dimensions (Inches) 2261 x 737 x 1422 mm
