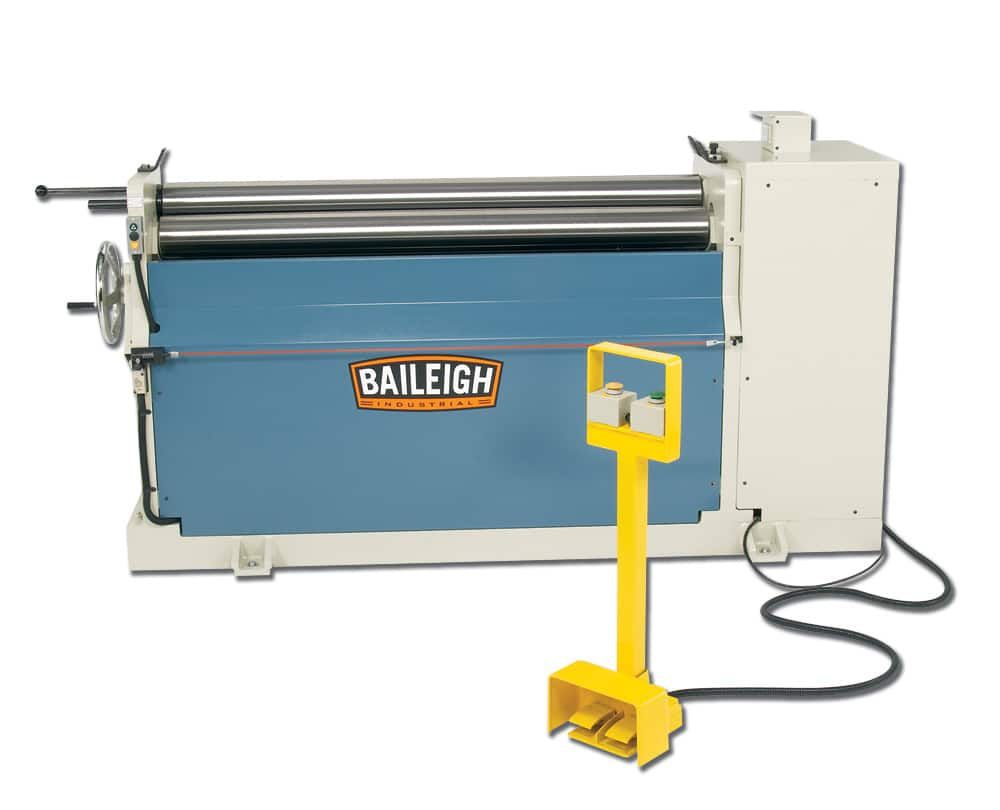

A long time staple of Baileigh Industrial's sheet metal roll forming equipment line, the PR-510 has a bending capacity of 10 gauge mild steel at its full width of 1550mm.

• The PR-510 sheet metal forming plate roller has 4-3/4" OD rolls that are hardened and then polished to ensure no marring to the material being rolled.
• This plate roll is built to last and has a very rigid frame made from fully welded plate steel.
• This design eliminates any deflection of the rolls even at maximum thickness capacity.
• The PR-510 single pinch roll former, is powered by a 2 hp 400 volt three phase motor, which turns all three rolls.
• Having three driven rolls increase efficiency of the machine.
• The back roll is also hydraulically controlled for up and down as well as left and right tilt for coning purposes.
• For repeatable bends the back roll position is displayed on a digital read out.
• 1550mm forming width
• 3.5mm mild capacity
• Three driven rolls
• DRO for back roll position

• Item Number PR-510
• Country of Manufacture Taiwan
• Forming Width 1550mm
• Driven Rolls 3
• Roll Speed 5.85 rpm.
• Upper Roll Dia. 120.6 mm
• Roll Adjustment Back Hydraulic
• Roll Adjustment Pinch Manual
• Minimum Forming Dia 181 mm
• Motor 2 hp.
• Capacity (Mild Steel) 3.4 mm
• Power 400V  3-phase
• Shipping Weight 1950 kgs.
• Shipping Dimensions (Inches) 2362 x 762 x 1270 mm
