Baileigh DP-1500G Gear Driven Metalworking Drill Press 400v

Baileigh DP-1500G Gear Driven Metalworking Drill Press 400v

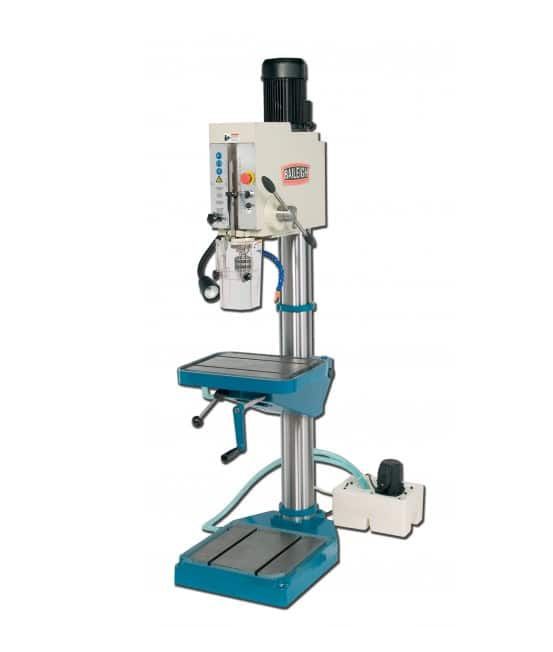

A Baileigh Industrial DP-1500G gear driven drill press is rigidly designed for heavy drilling.

• The column is a massive 5.5" diameter to help reduce possible flexing during heavy feeds at maximum capacity, which is 38mm through mild steel.
• The base and table are made from a heavy casting and both have large T-slots to ensure a proper hold of the material being drilled.

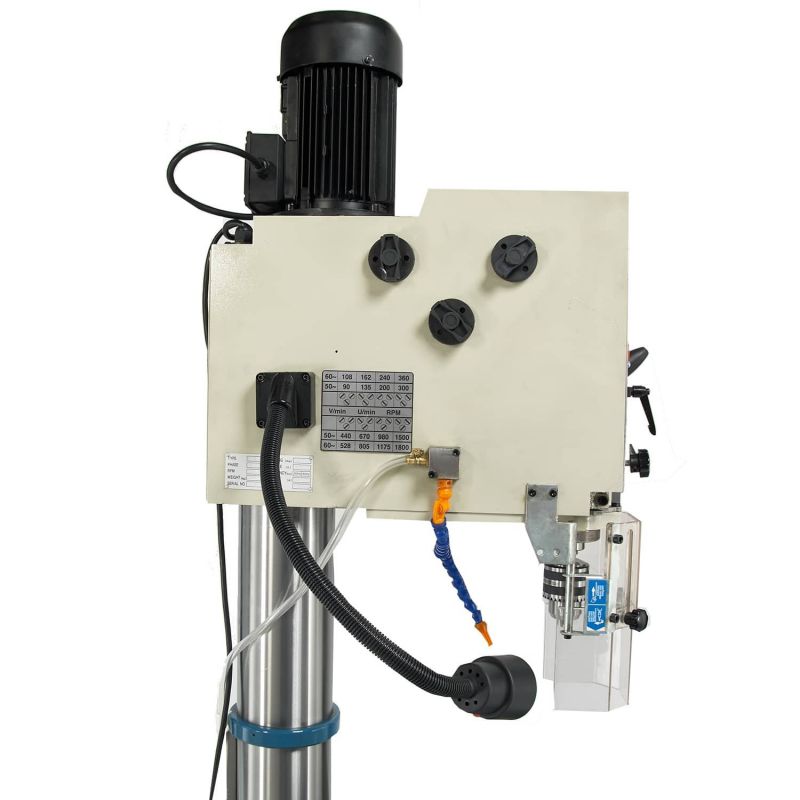

• The DP-1500G has a heavy, industrial-grade gear system that allows for an array of speeds to work with many different materials for drilling and tapping.
• To properly transfer the power from the gear head drill press to the material the drill uses a #4 morse taper.
• The DP-1500G comes with a coolant system, safety guarding, a chuck and a halogen light.
• This Baileigh Industrial drill press offers a lot of power at a very economical value to the machine shop or fabrication shop owner.
• Gear driven
• MT4 spindle taper
• 38mm capacity

• Item Number DP-1500G
• Table Dimensions 508 mm x 406 mm
• Motor 2.2 kw
• Spindle Speed 90 – 1500 rpm
• Spindle Taper MT 4
• Tapping Capacity 33 mm
• Power 400V
• Shipping Weight 310 kgs.

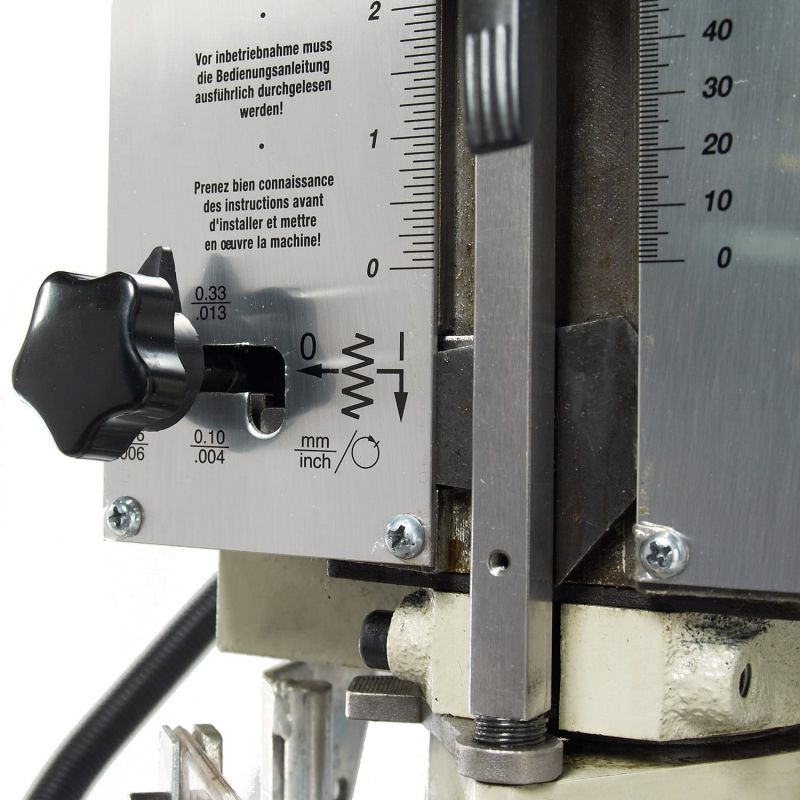

• Feed Speed 0.1, 0.16, 0.24, 0.33
• Drill Capacity 38 mm
• Spindle Travel 190 mm
• Base Dimensions L x W 495 mm x 711 mm
• Shipping Dimensions (Inches) 2134 x 584 x 940 mm
