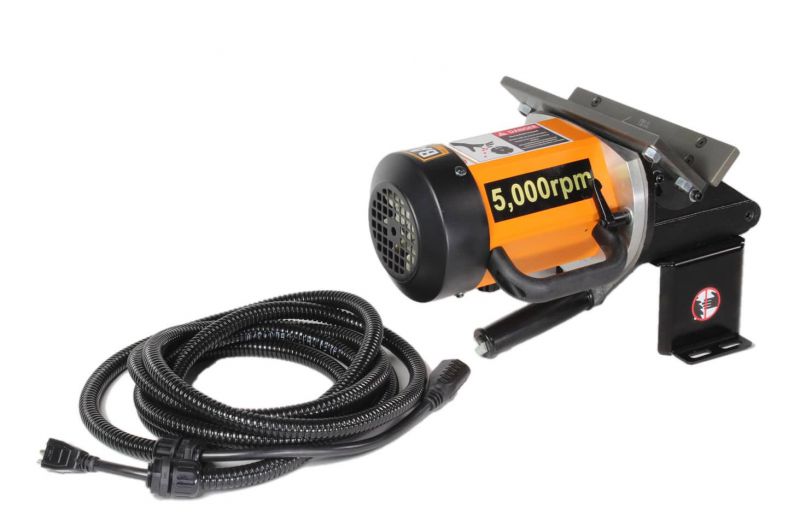

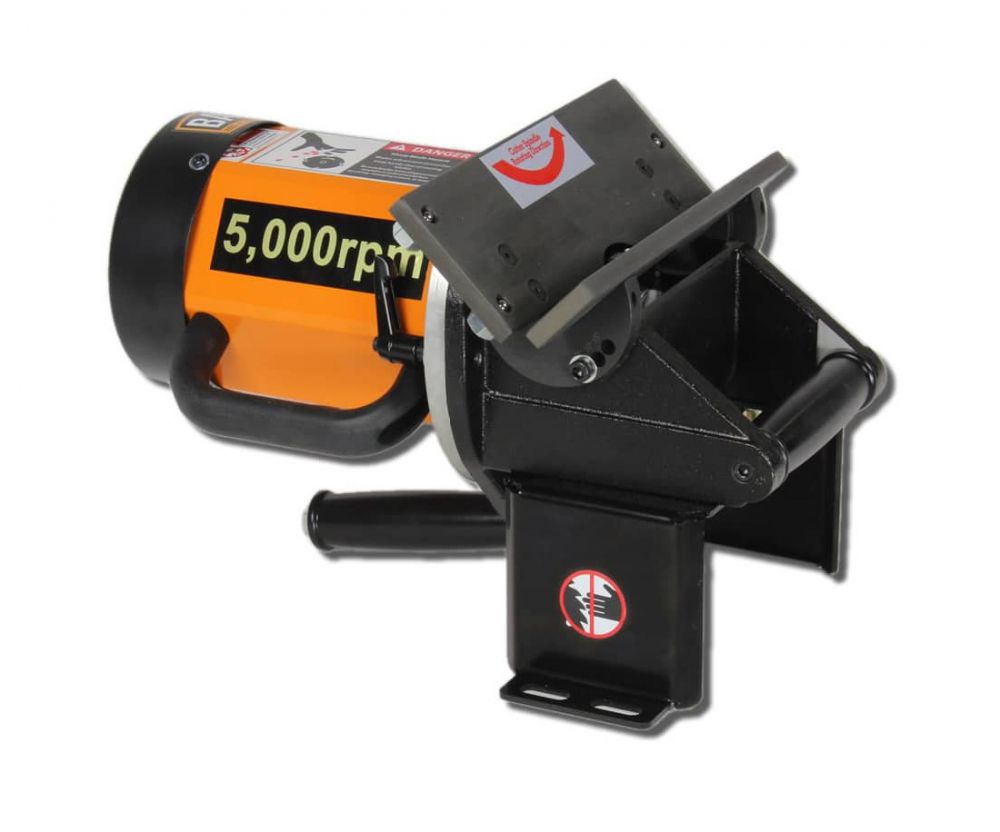

Baileigh CM-10P Portable Chamfering Machine

Baileigh CM-10P Portable Chamfering Machine

The CM-10P portable beveling machine from Baileigh Industrial ushers in a new era in plate beveling machines.

• At just under 18 lbs, this light weight portable unit runs on a 1 hp brushless motor that only needs 240 volts to operate.
• But just because it is light weight doesnt mean that it cant produce. Brushless motors by their nature produce more torque and rpms then their brushed brothers.
• The CM-10P has the power to chamfer 1/4 at 45 degrees from the front width and 3/8 at 45 degrees from its side width.
• The CM-10P comes standard with the ability to bevel at three set positions 15, 30, and 45 degrees, but has optional pivot plates for even more tunability.
• Another nice feature of the CM-10P portable beveling machine is that it comes standard with a bench mount that enables it to me rigidly mounted to any bench top.
• An end bell mounted cooling fan keeps the CM-10P cool during those long hours of work.
• The guide plates are an enormous 9 long and include three roller balls to help guide the material through the cutter.
• The cutting wheel has 9 blades all which are indexable and replaceable.
• 15° to 45°
• 0mm to 10mm bevelling
• Motor 1hp
