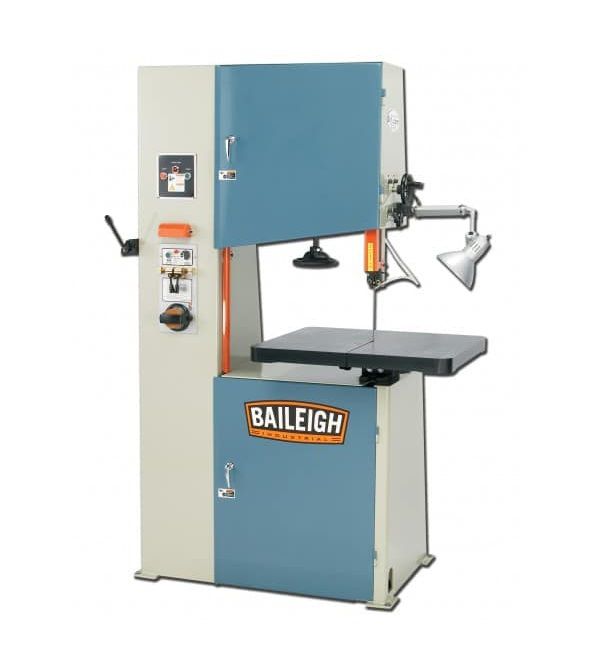

Baileigh BSV-24 Vertical Bandsaw 240v

Baileigh BSV-24 Vertical Bandsaw 240v

This heavy-duty bandsaw will offer years of service in any fabrication shop because of its heavy-duty construction and high quality components.

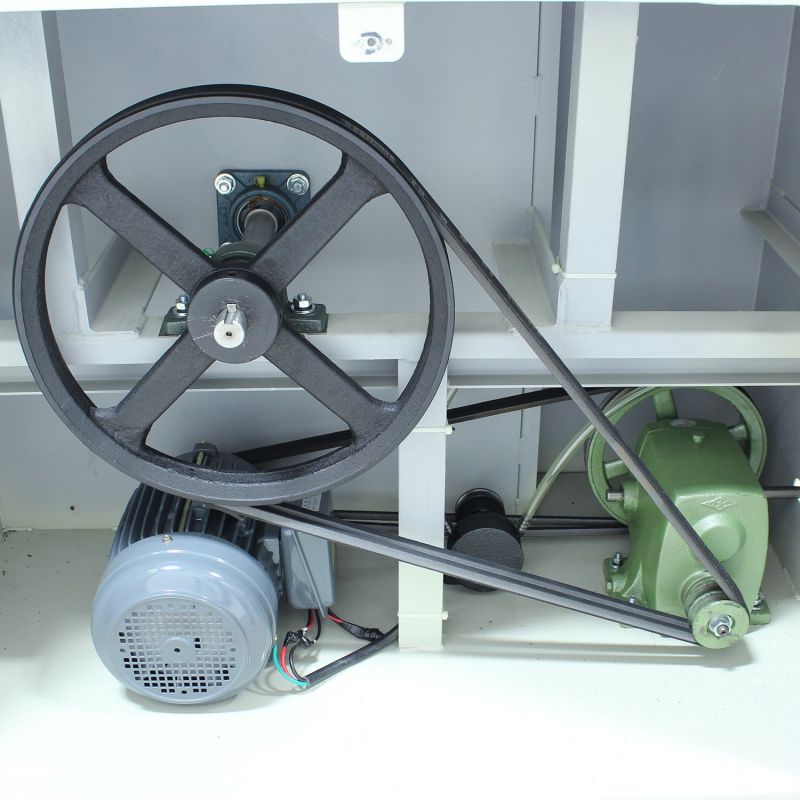

• The heavy-duty gearbox on the BSV-24 has 4 operating speeds, ranging from 80rpm to 318rpm, and a robust 2hp motor that operates on 220 volt, 50hz single phase power.
• The BSV-24 is built to last.

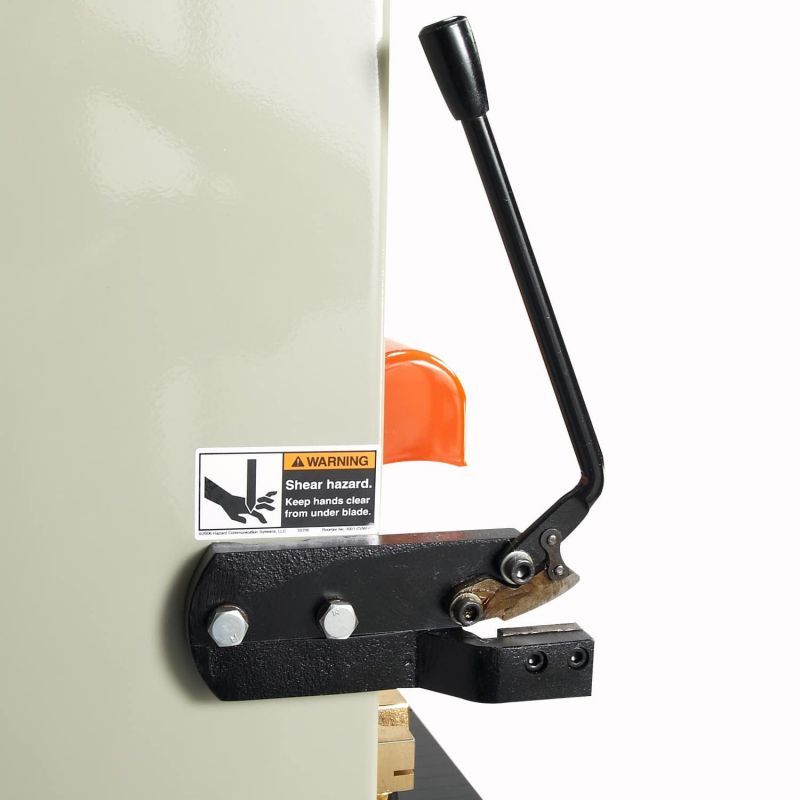

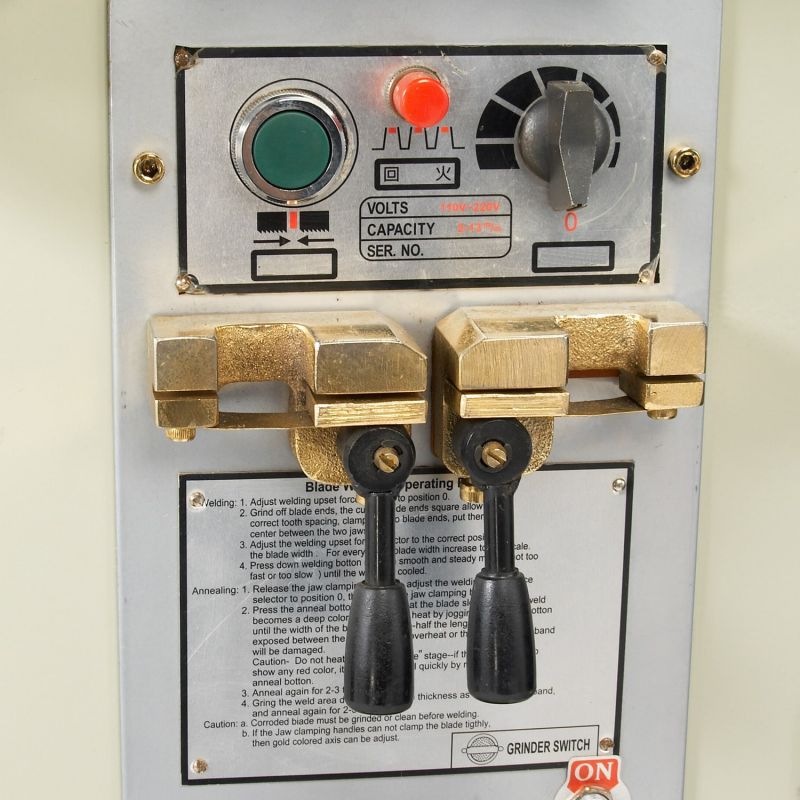

• Baileigh Industrial designed the BSV-24 to accept most of the popular blade widths ranging from 6mm to 19mm, and included a blade welder for when you need to get to the middle of a cut on a project.
• The BSV-24 vertical bandsaw features a 582mm throat depth and a 337mm material opening.

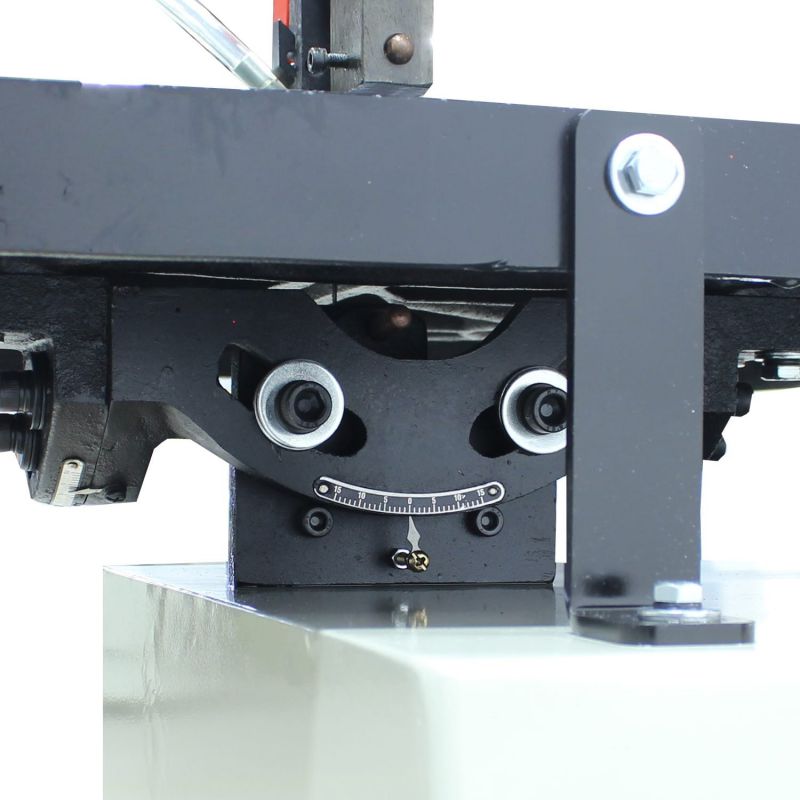

• The 610mm x 559mm oversized table also pivots 10° front to back and 15° left to right.

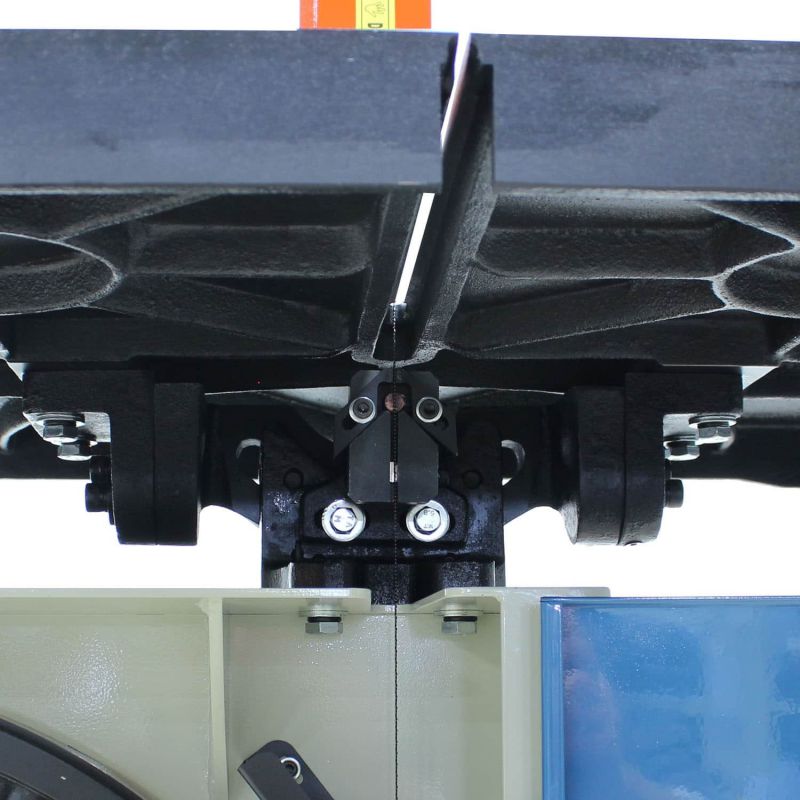

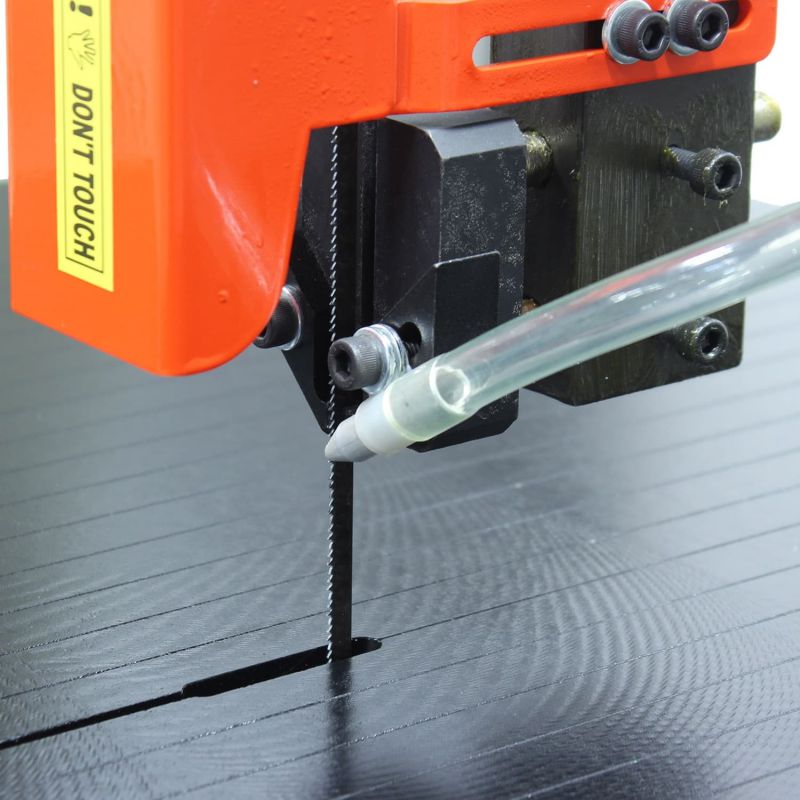

• Other nice features of the BSV-24 are its easy access front panels for blade alignment, fully sealed ball bearing guides, and its bright worklight to see exactly where the cut is.
• 6mm - 19mm blade width
• 336mm maximum thickness
• 581mm throat depth

• Item Number BSV-24
• Country of Manufacture Taiwan
• Table Size 620 mm x 579 mm
• Butt-Welder Capacity (Blade Width) 17147
• Welder Capacity .74″
• Slant of Table 10° F x Rear
• Motor 3 hp
• Maximum Thickness 336 mm
• Throat Depth 581 mm
• Blade Length 4260 mm
• Blade Speed 81  318 rpm
• Blade Thickness .8 mm
• Power 220V
• Shipping Weight 650 kgs.
• Shipping Dimensions (Inches) 1345 x 940 x 2083 mm
