Baileigh BSV-16 Vertical Bandsaw 240v

Baileigh BSV-16 Vertical Bandsaw 240v

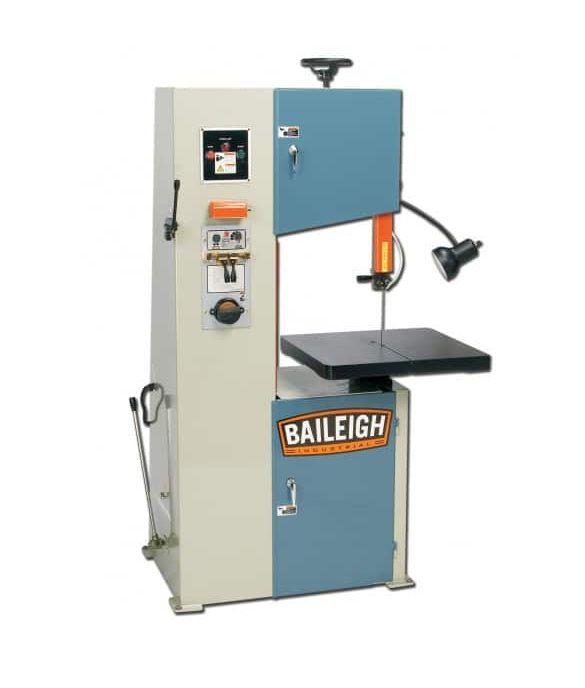

The BSV-16 vertical bandsaw from Baileigh Industrial is the perfect all around vertical bandsaw for any fabrication shop. It has many of the same features found on saws for a lot more money. Although economical, the BSV-16 is built solid with a fully welded frame and industrial grade components. The BSV-16 will serve any shop or factory faithfully for years to come.

• The BSV-16 features a large 386mm throat depth and a 388mm material opening.
• The large size of the opening will accommodate almost any project.
• The heavy-duty 610mm - 559mm table also pivots 10° front to back and 15° left to right.
• A convenient scale is located on the bottom side of the table for quick adjustments when needed.
• The BSV-16 uses a .6kw motor to turn the blade and has 4 operating speeds ranging from 62rpm to 249rpm.

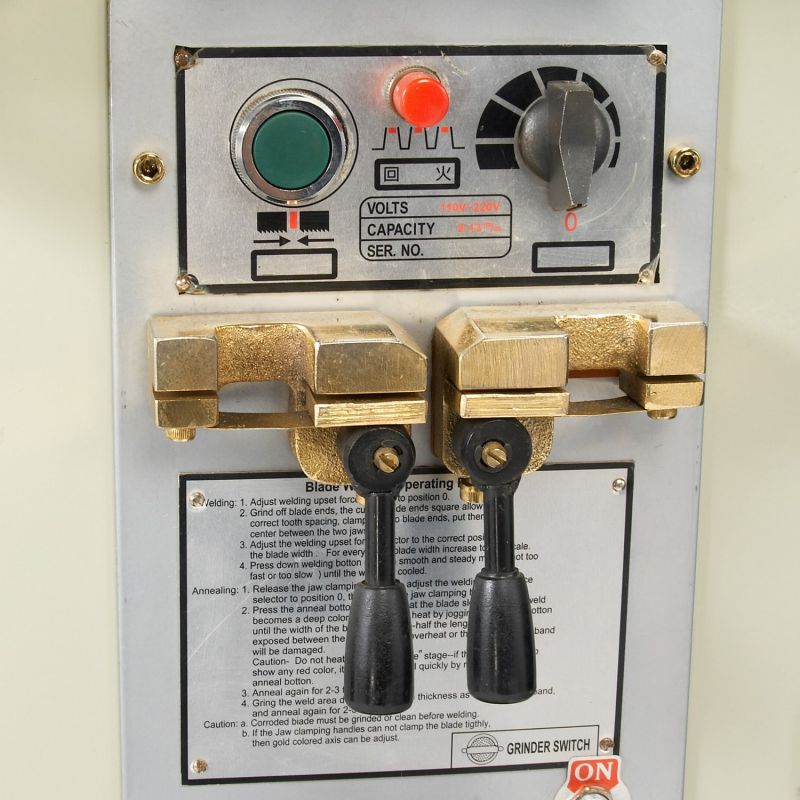

• The BSV-16 operates on 220 volt, 50hz, single phase power and includes a blade welder for when you need to get to the middle of a cut on a project.

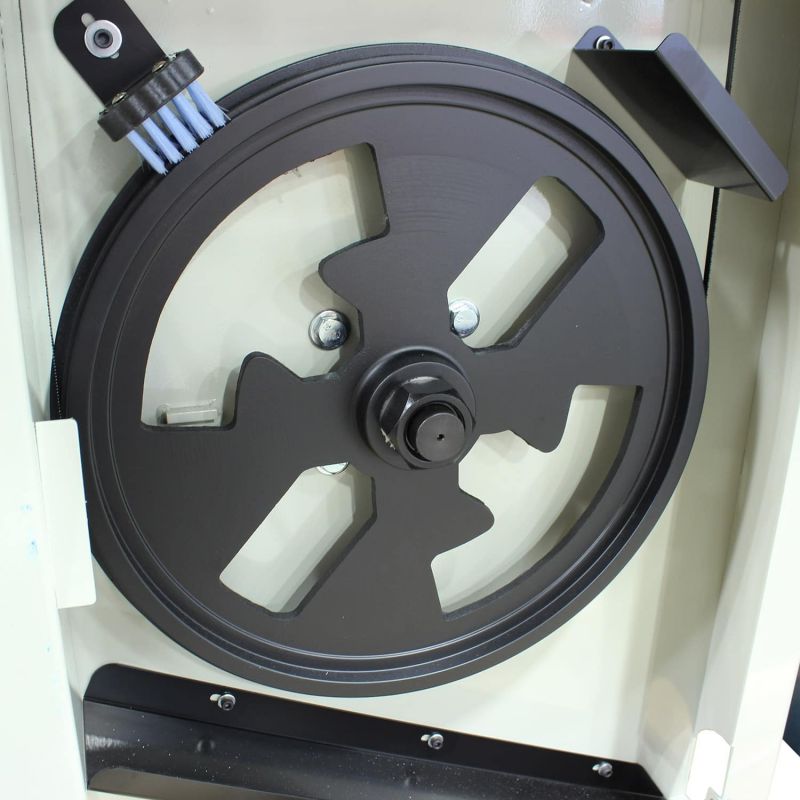

• The designers of the BSV-16 wanted to accommodate most of the popular blade widths, so they made the blade wheel accept blades ranging from 1/4 for the most intricate cuts, to 16mm for straight cut offs.
• 6mm - 16mm blade width
• 388mm maximum thickness
• 386mm throat depth

• Item Number BSV-16
• Country of Manufacture Taiwan
• Table Size 603 mm x 552 mm
• Butt-Welder Capacity (Blade Width) 17164
• Welder Capacity 13 mm
• Slant of Table 10° F x Rear
• Motor 1.5 x 1.5 kw
• Maximum Thickness 388 mm
• Throat Depth 386 mm
• Blade Length 3420 mm
• Blade Speed 63  249 rpm
• Blade Thickness .8 mm
• Power 220V, 50Hz, 1-Phase
• Shipping Weight 410 kgs.
• Shipping Dimensions (Inches) 1168 x 838 x 1905 mm
