Axminster Professional AP3600B Bandsaw 230v
Product Code: BRI/109967
Brand: Axminster Professional
£2,011.41 Inc. VAT
£1,676.17 Exc. VAT

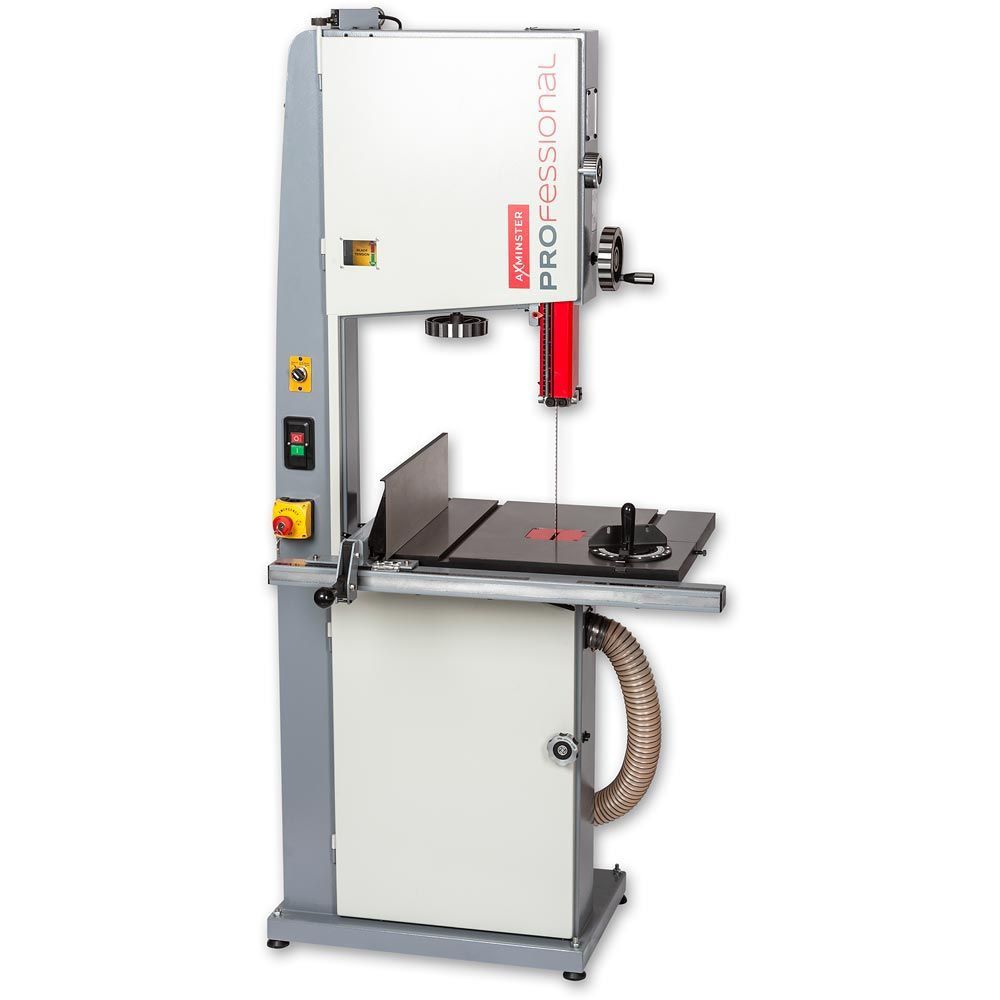

Axminster Professional AP3600B Bandsaw 230v
Key Features
- The AP3600B is a modern and capable bandsaw, offering robust build quality alongside impressive cutting power.
- With a generous 360 mm depth and 420 mm width of cut possible, it also features a large 485 mm x 560 mm cast iron table. The table is engineered with a double trunnion table support, making it ideal for supporting large pieces of timber with ease. The powerful 2.5kW motor means you can easily handle big cuts, as required in a demanding workshop.

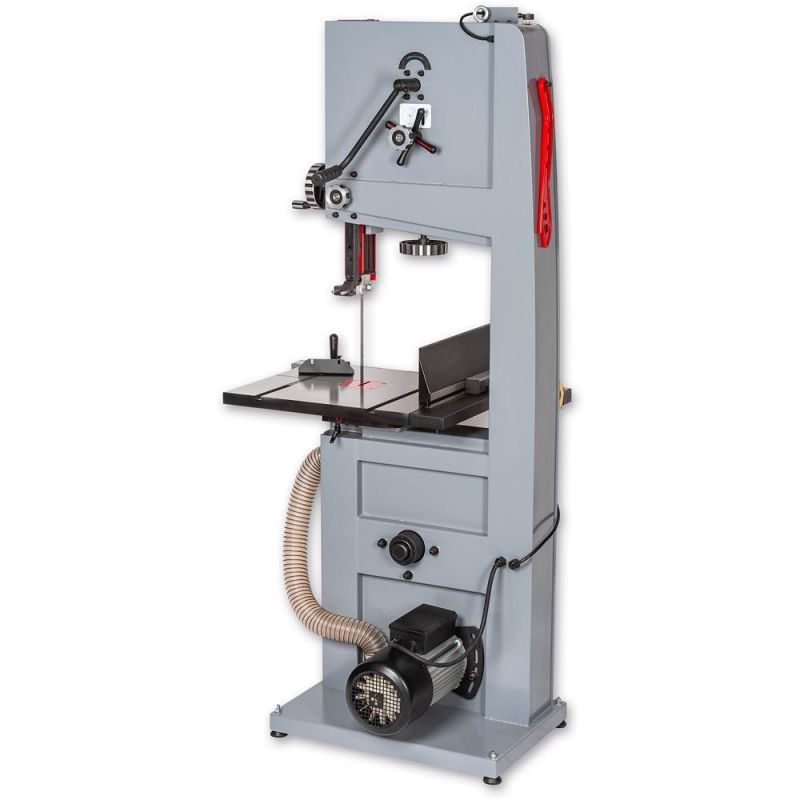

- The bandsaw is supported by a solid steel tubular frame which limits vibration. It comes supplied with a rigid T-style, easy glide Hi / Lo rip fence for highly accurate cuts. The cast iron blade wheels are fully balanced, reducing vibration further as well as reducing any fatigue from use.

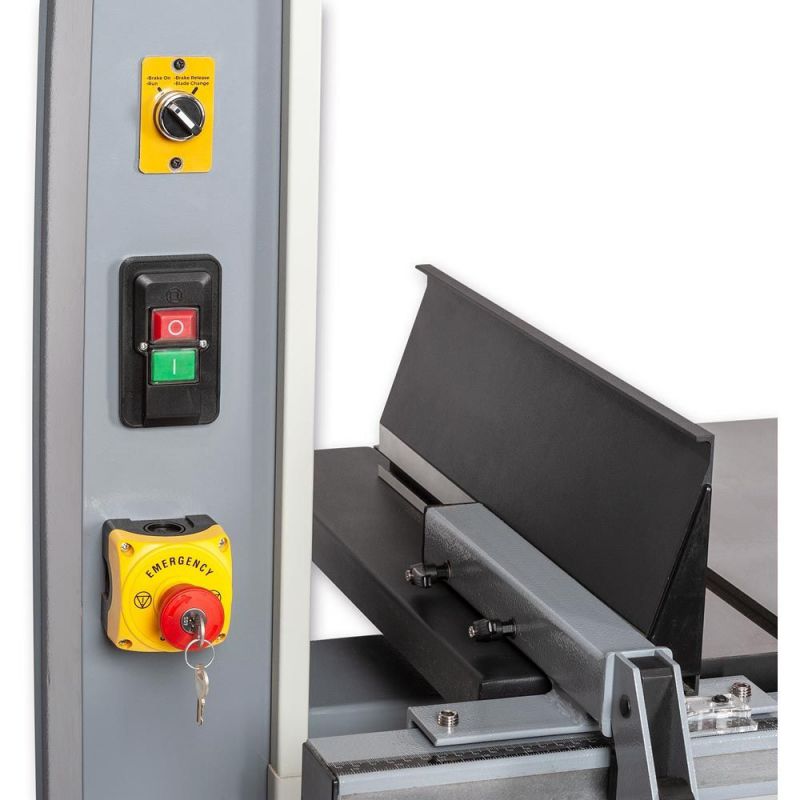

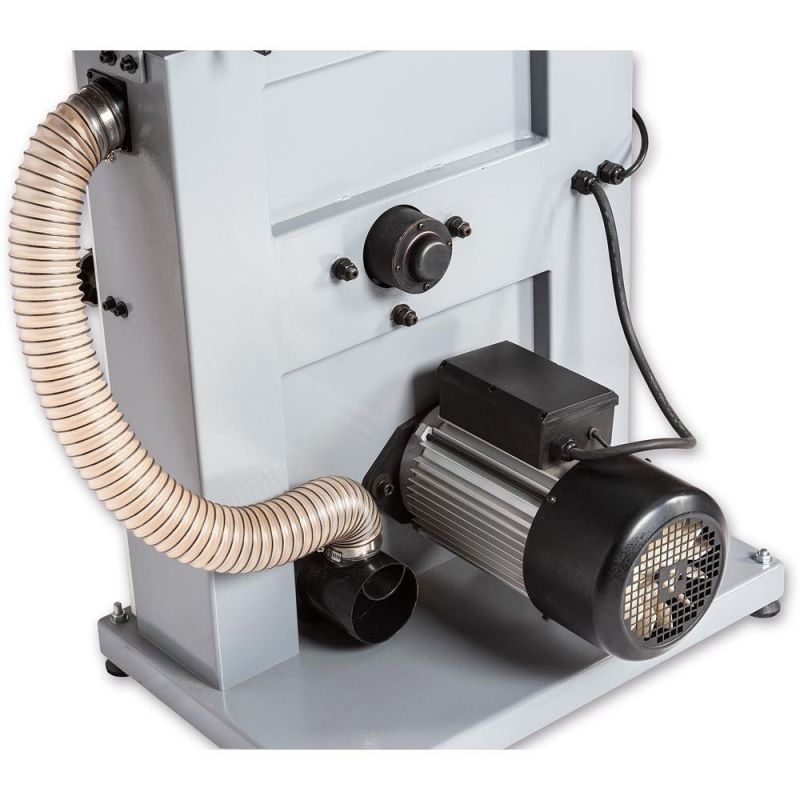

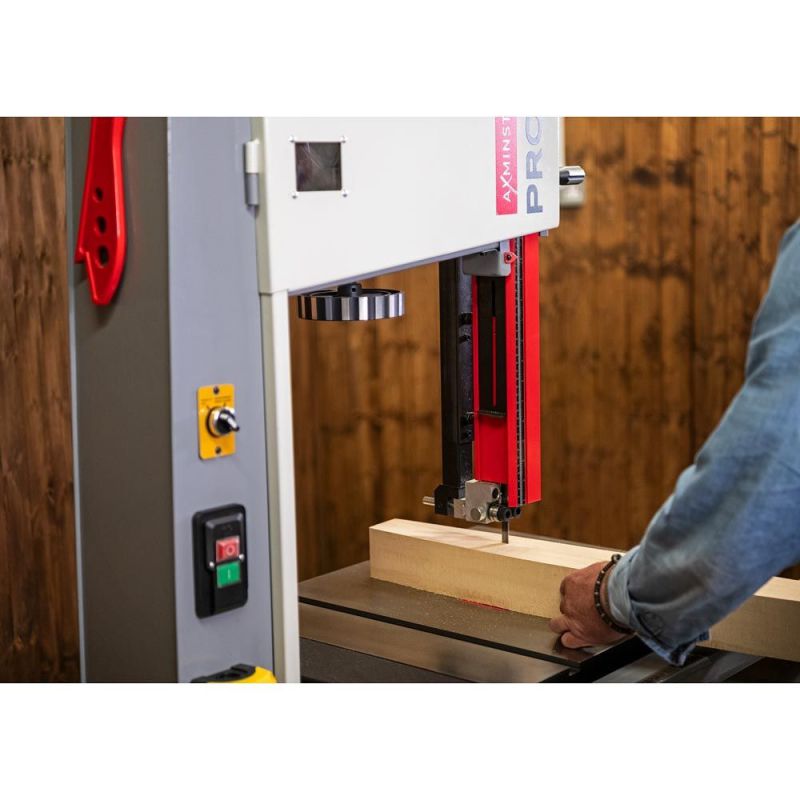

- You can rest assured that this machine meets all safety requirements: it features a key switch for extra safety when away from the machine, as well as an emergency stop switch. Dual dust extraction ports provide efficient methods of dust extraction to keep your workshop clean and dust free.
- Set up is a breeze; premium blade guides and a quick release blade tension lever make changing or adjusting your blades quick and easy. With levelling feet, you can get your bandsaw perfectly aligned in the workshop. Heavy duty metal handwheels mean your machine will remain in service longer.
- Supplied with a 3/4" x 3 TPI blade.
Strengths and benefits
-
Huge cutting capacity: With a generous 360mm depth and 420mm width of cut, you can handle impressive timber sizes.
-

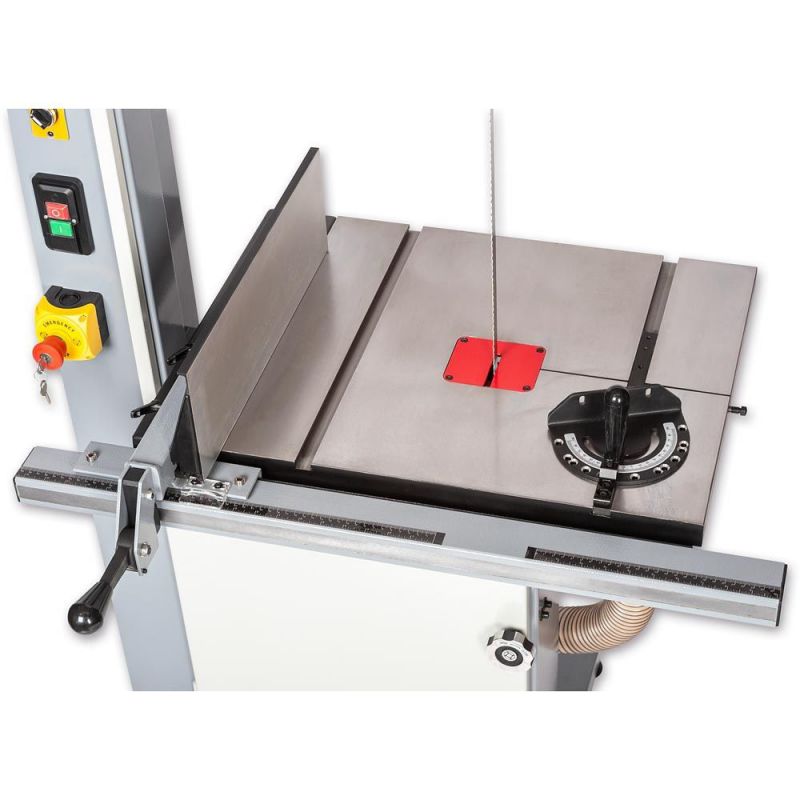

Large cast iron table: The table is 485mm x 560mm cast iron with double trunnion table support. This offers maximum support for heavier pieces.
-
Powerful 2.5kW motor: The AP3600B has the power to match the capacity, meaning it can cut 360mm material with ease.
-

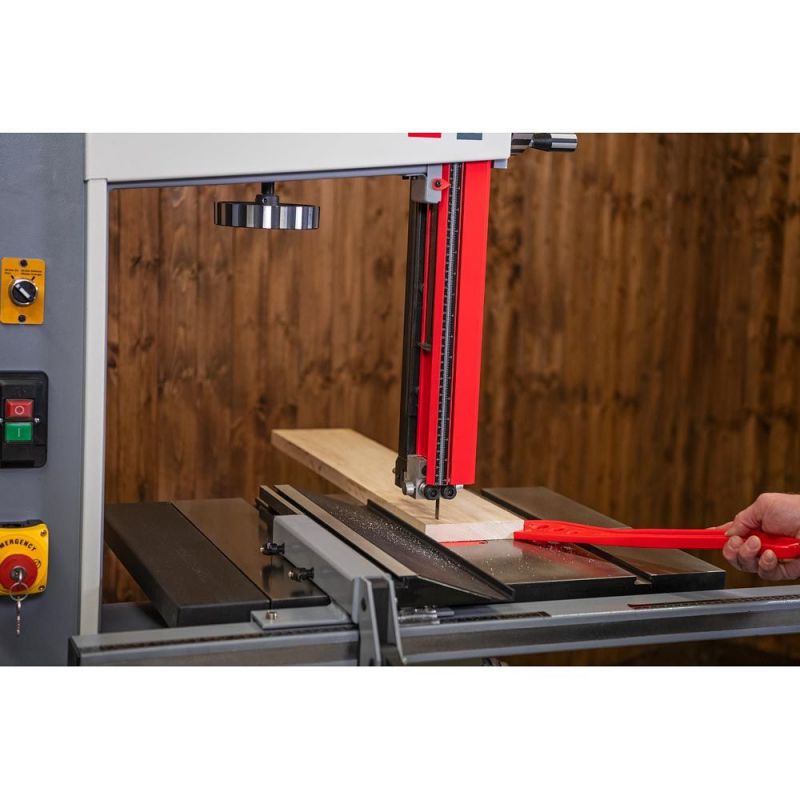

T-style Hi/Lo rip fence: Rigid, easy glide rip fence with two height options for accurate heavy duty ripping and close to the blade work.
-

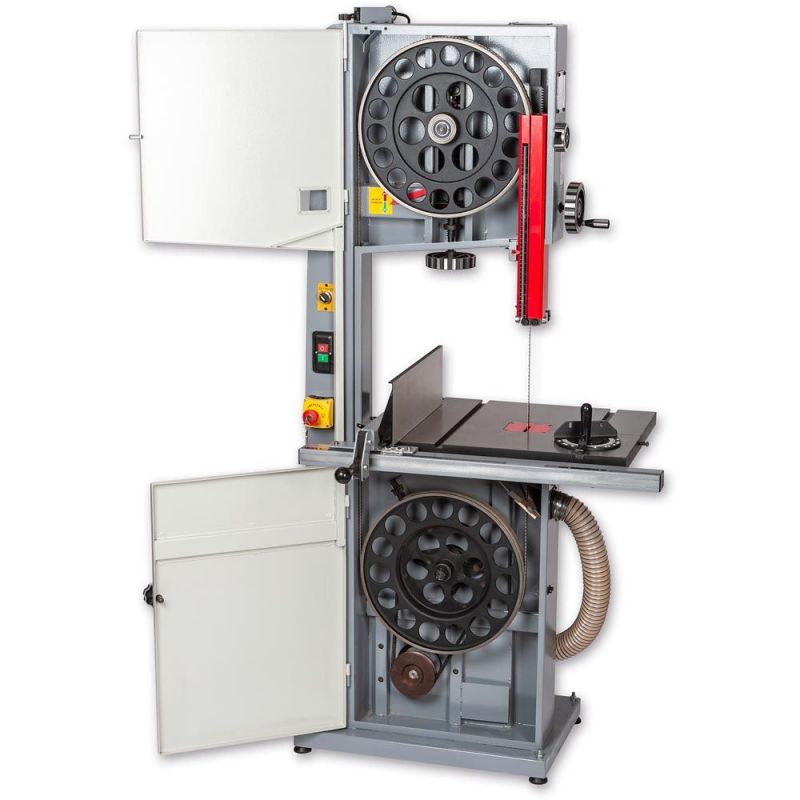

Cast iron blade wheels: Achieve cleaner, smoother cuts thanks to the fully balanced blade wheels which reduce vibration and maintain blade speed.
-

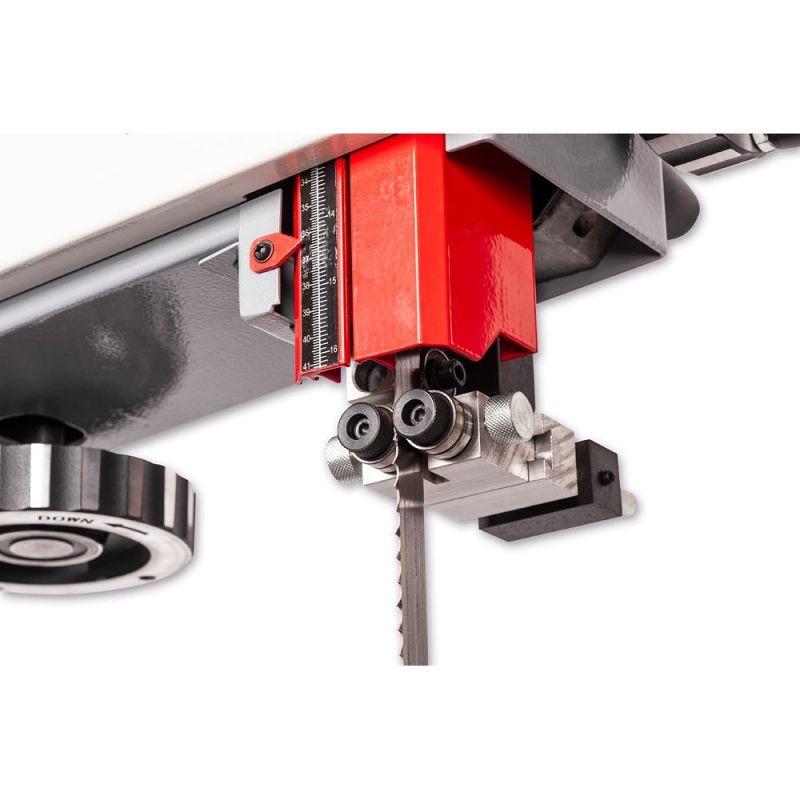

Superior blade guides: Independent adjustable blade guide system for quick and easy set up.
-

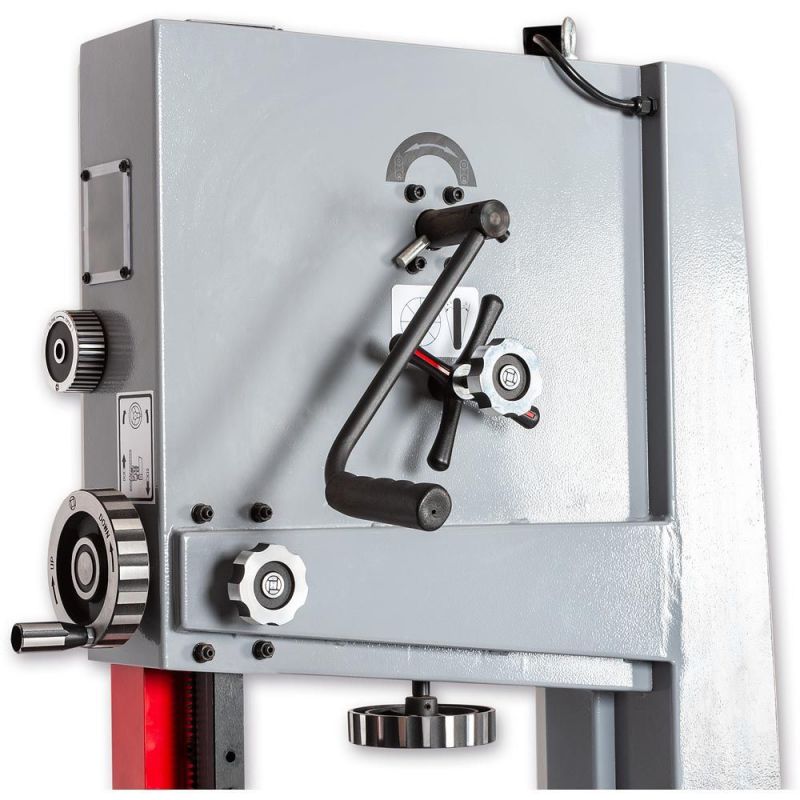

Heavy duty handwheels: These durable metal handwheels will provide smooth adjustment for years to come.
-

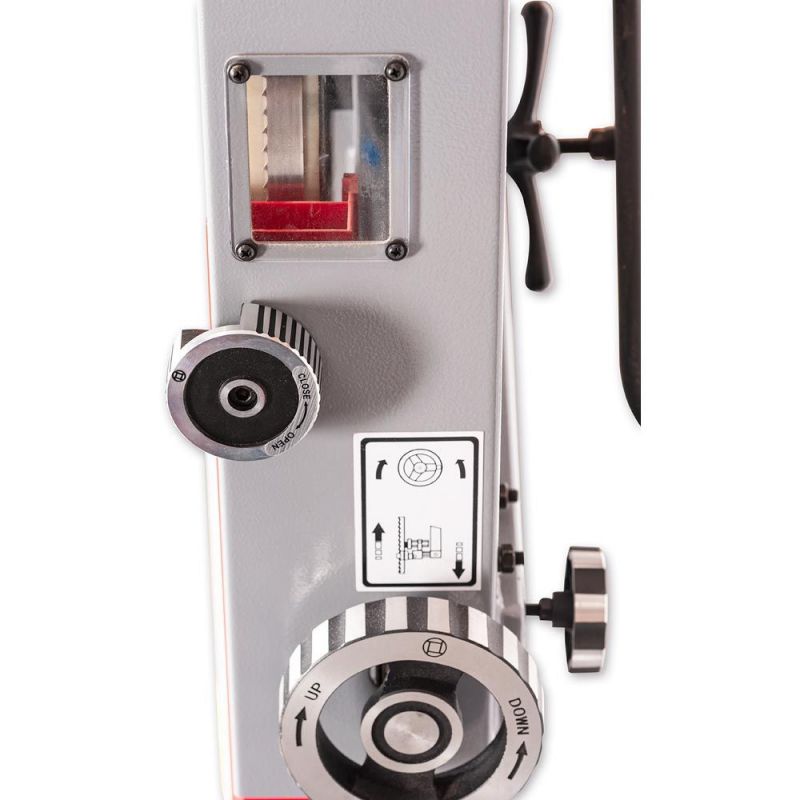

Rack & pinion upper guide adjustment: Easily adjust the upper blade guide with the rack and pinion rise and fall. There is also a tension release lever for straightforward blade changes.
- Bandsaw Blade Length: 3,600 mm (141.3/4")
- Bandsaw Wheel Diameter: 430 mm
- Blade Speed: 870 m/min
- Blade Width MinMax: 6 mm to 25 mm
- Dust Extraction Outlet: 100 mm & 63 mm
- Max Cutting Height: 360 mm
- Max Width of Cut: 420 mm
- Max Width of Cut with Fence: 335 mm
- Min Extraction Airflow Required: 1,200 m³/hr
- Nett Weight: 158 kg
- Overall L x W x H: 970 mm x 960 mm x 1,915 mm
- Plug Fitted: UK 16A Plug
- Power: 2.5 kW
- Rating: Trade/Professional
- Sound Power Level LwA [Uncertainty K]: 76.2 dB(A)
- Sound Pressure Level LpA [Uncertainty K]: 72.3 dB(A)
- T Slot Size: 19 mm
- Table Height: 895 mm
- Table Size: 485 mm x 560 mm
- Table Tilt: 0° - 45°
- Voltage: 230 V
