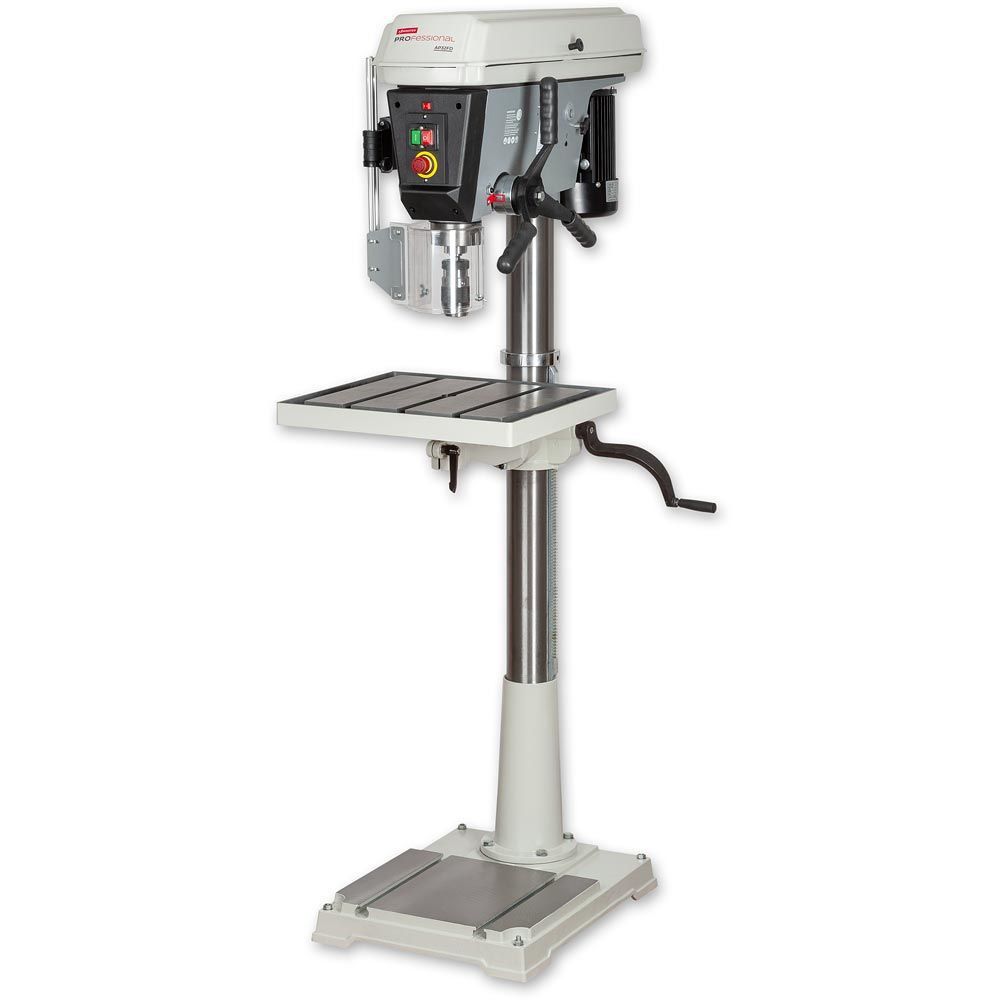

Axminster Professional AP32FD Floor Drill 230v

Axminster Professional AP32FD Floor Drill 230v

ref: 111893

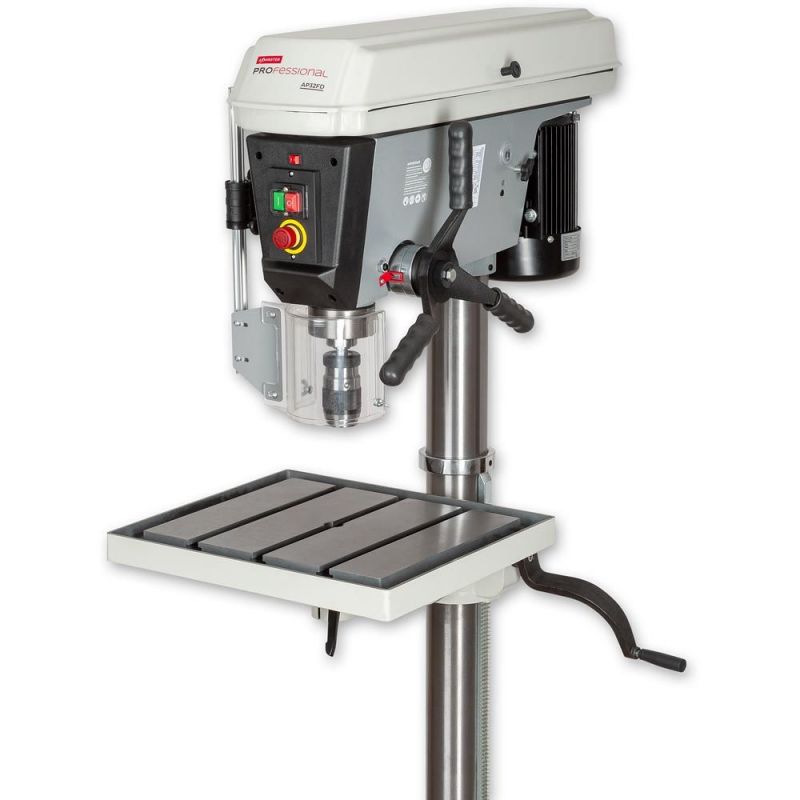

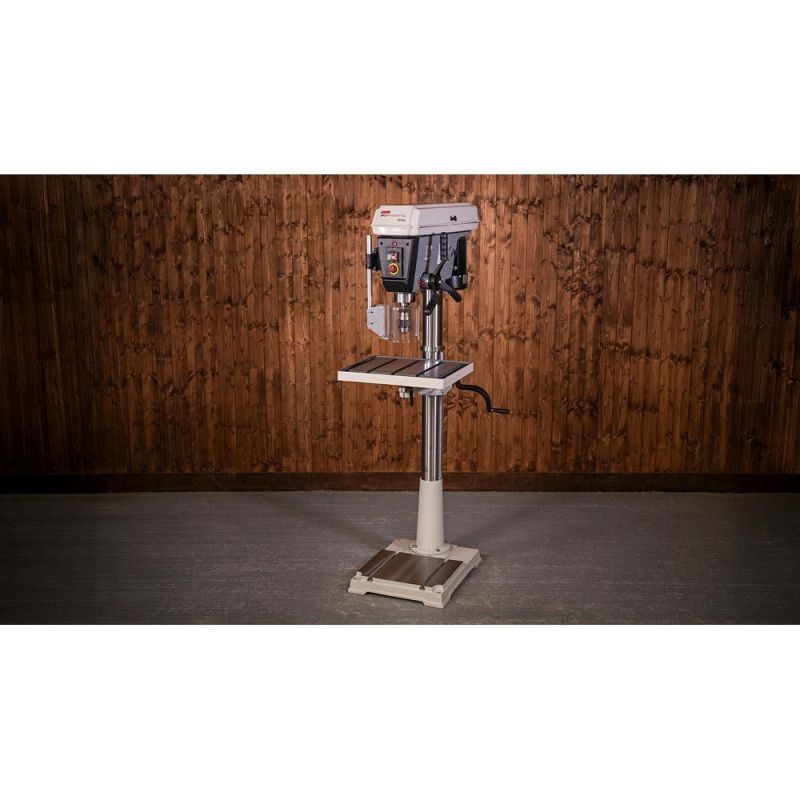

• The Axminster Professional AP32FD Floor Drill is designed to offer premium performance and reliability for professionals and advanced hobbyists alike. This high-performance floor drill is engineered for precision and stability, making it ideal for a variety of drilling tasks. It boasts a powerful 1,100W induction motor, 12 adjustable speed settings ranging from 150 to 2,700rpm, and a large, stable base to ensure consistent accuracy.

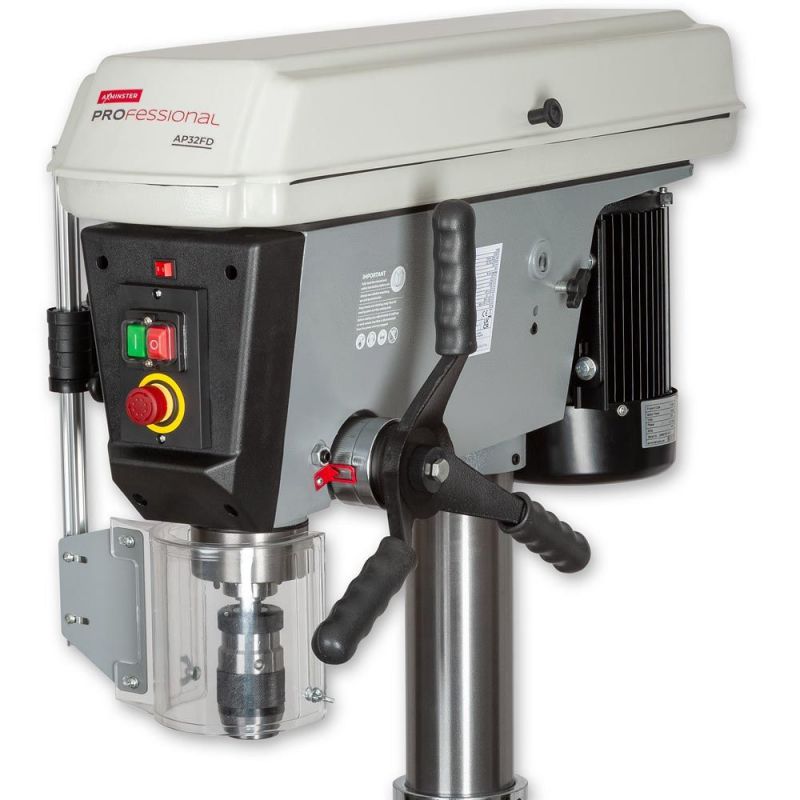

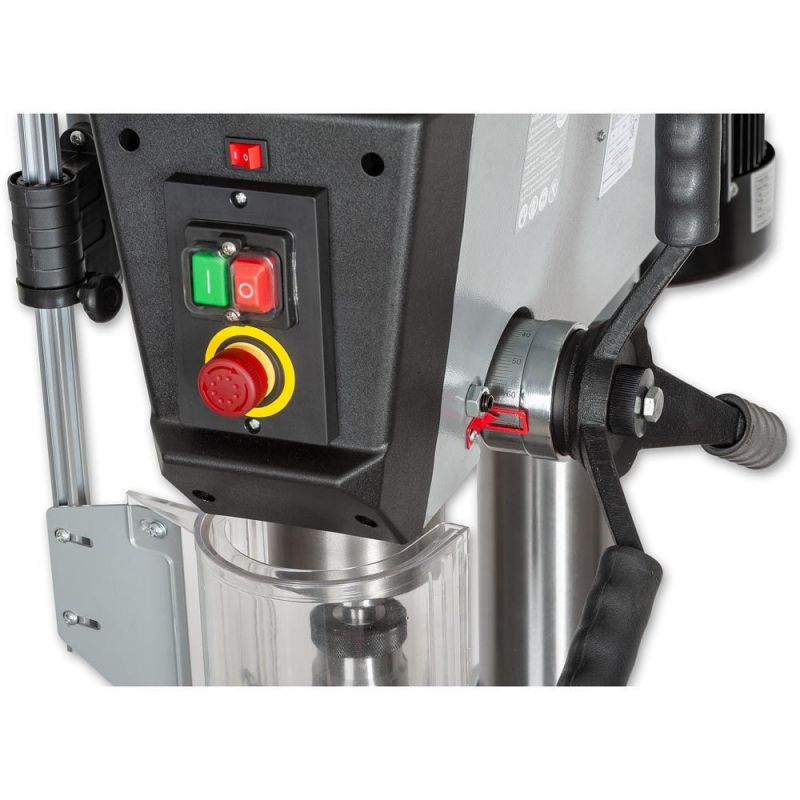

• The AP32FD Floor Drill includes a large table with rack and pinion height adjustment, which can tilt and swivel away to allow the base to be used as a work support. The switch system features a separate locking emergency stop switch and a separate switch for the integrated, adjustable LED work light. For added safety, the chuck guard and belt cover are electrically interlocked. This floor drill also features a 3MT precision spindle running in genuine NSK ball bearings, ensuring accurate drilling and low vibration.
• This model includes several key upgrades, such as a heavy-duty chuck and a redesigned chuck guard with a fitted seal. The high-quality chuck enables quick and easy bit changes. An improved depth stop design allows for precise drilling depth adjustments. The AP32FD also boasts improved motor mounting and enhanced soundproofing between the drill head and guard, contributing to a quiet and smooth operation.
• Whether you are upgrading from an older model or looking for a reliable floor drill for your workshop, the Axminster Professional AP32FD Floor Drill offers the perfect combination of power, precision, and durability. This professional floor drill is a must-have for anyone seeking a durable and versatile drilling machine.

• Genuine NSK Ball Bearings: The spindle runs in genuine NSK ball bearings – known for their premium quality. The result is accurate drilling and low vibration, enhancing the overall precision of your work.
• Enhanced Safety System: The electronically interlocked chuck guard and integrated belt cover safety switch prevent the machine from being accidentally turned on or running with the cover open, ensuring maximum safety.

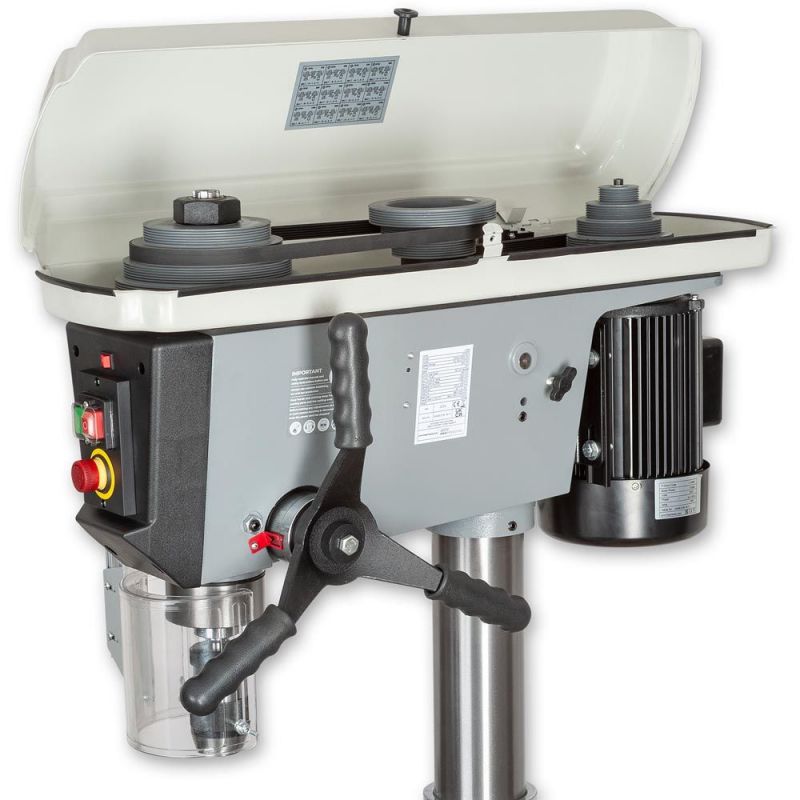

• Multi-Vee Belts: Multi-vee type belts provide maximum grip and low vibration, contributing to the drill's overall smooth and stable performance.
• Improved Depth Stop: The improved depth stop allows for easy adjustment, enabling precise control over drilling depth for consistent results.
• Polished Cast Iron Table: The (290 mm x 290 mm / 345 mm x 345 mm / 475 mm x 425 mm*) cast iron table provides a strong and rigid work surface, ensuring stability and durability during drilling operations.

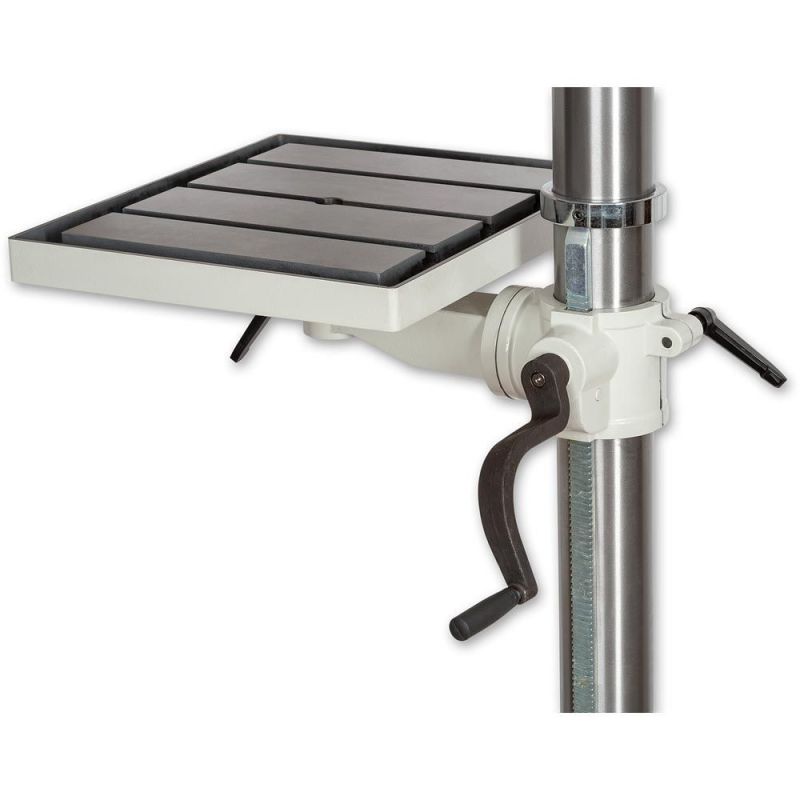

• Rack and Pinion Table Adjustment: The rack and pinion mechanism provides quick and easy table adjustments, making it simple to position your workpiece accurately.
• One-Piece Cast Iron Handle: With soft rubber grips, the cast iron handle is comfortable to use, reducing user fatigue during extended use.

• Base Size: 580 mm x 450 mm
• Chuck Capacity: 3 mm to 16 mm
• Chuck Travel: 120 mm
• Chuck Type: keyless
• Diameter of Column: 92 mm
• Max Chuck to Base: 1,090 mm
• Max Chuck to Table: 540 mm
• Max Drilling Mild Steel: 32 mm
• Model: AP32FD
• Morse Taper: 3 MT
• Nett Weight: 143 kg
• Overall L x W x H: 860 mm x 610 mm x 1,710 mm
• Plug Fitted: UK 3 pin plug
• Power: 1.1 kW
• Rating: Trade/Professional
• Speed Range: 150 - 2,700 rpm
• Spindle Taper: 3 MT
• Table Size: 475 mm x 425 mm
• Table Tilt: 90° - 0° - 90°
• Throat Depth: 254 mm
• Voltage: 230 V
