Axminster Professional AP2770BS Belt Sander 230V

Axminster Professional AP2770BS Belt Sander 230V

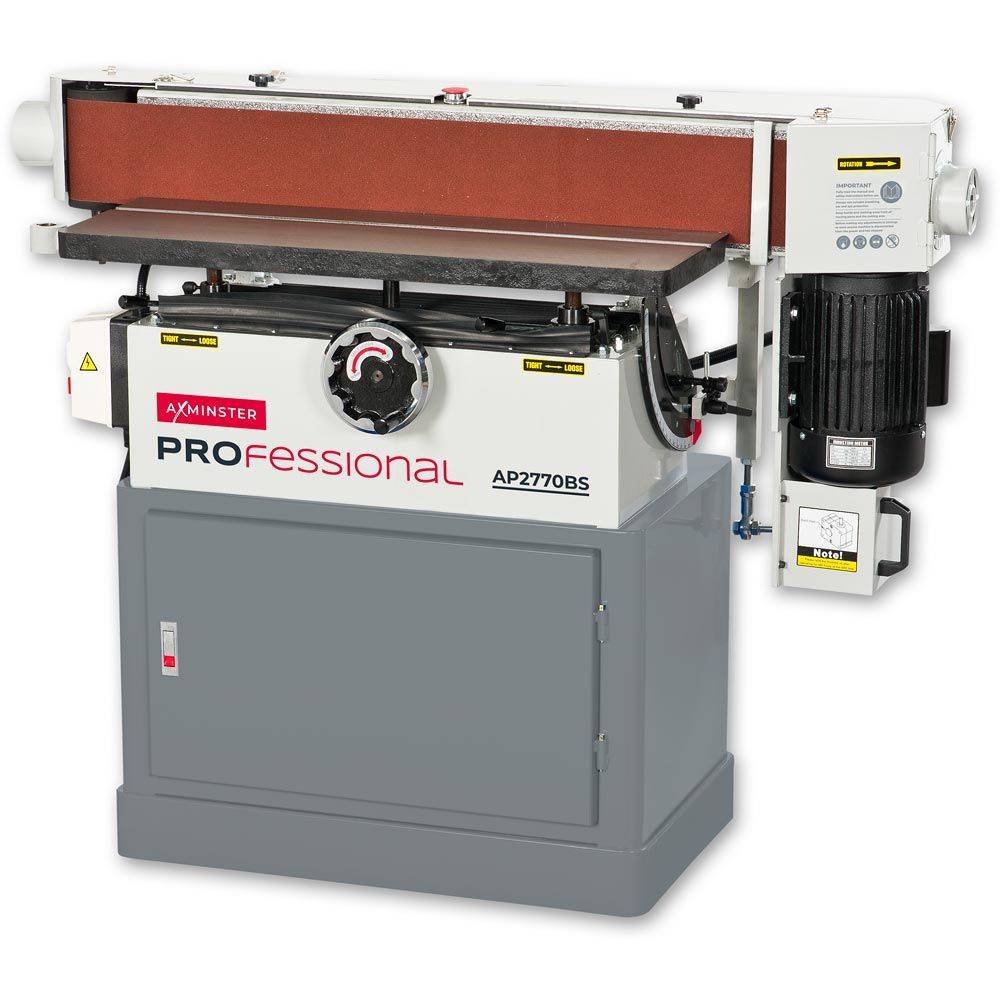

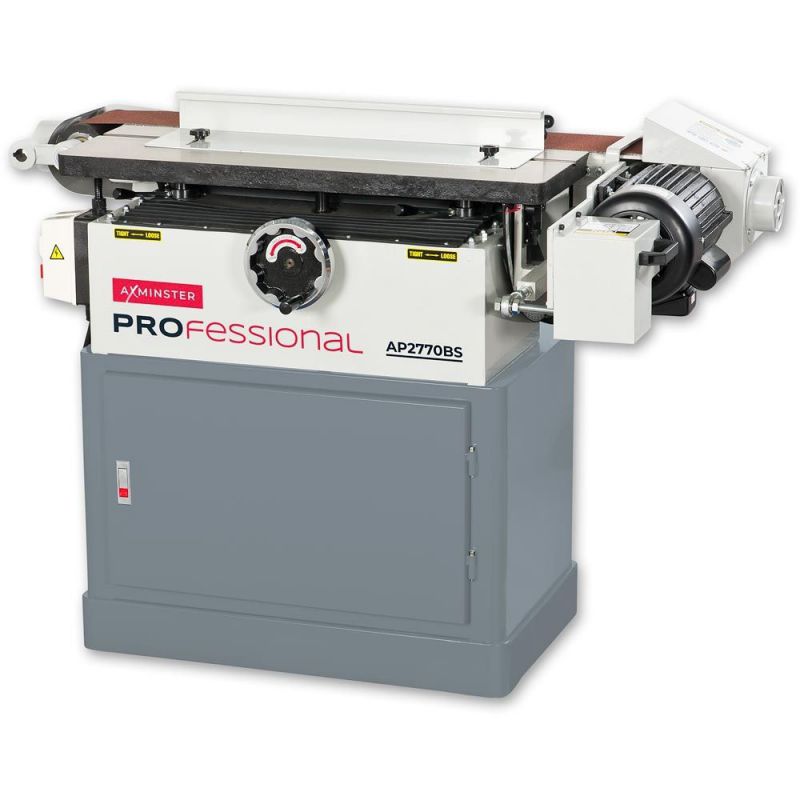

The AP2770BS oscillating belt sander includes several well thought-out features. Suitable for any medium sized joinery workshop or cabinet maker's workshop, it is very well guarded and easy to use.

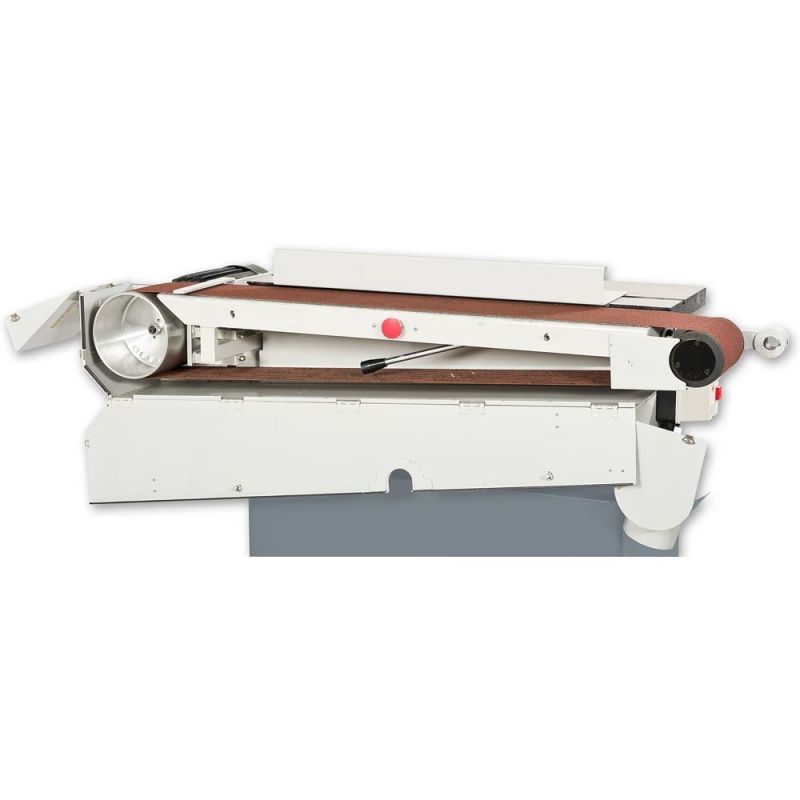

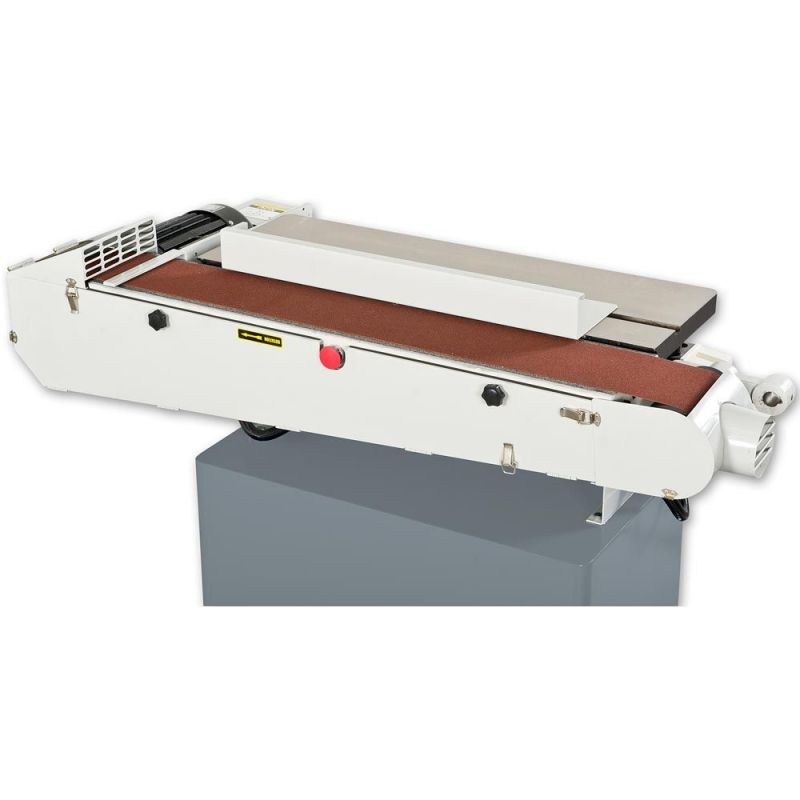

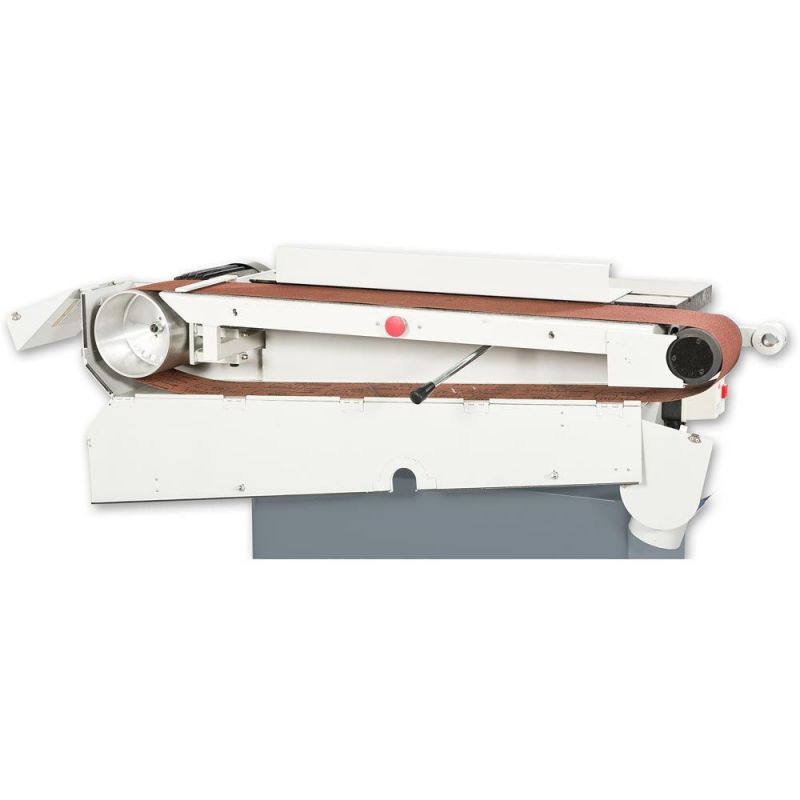

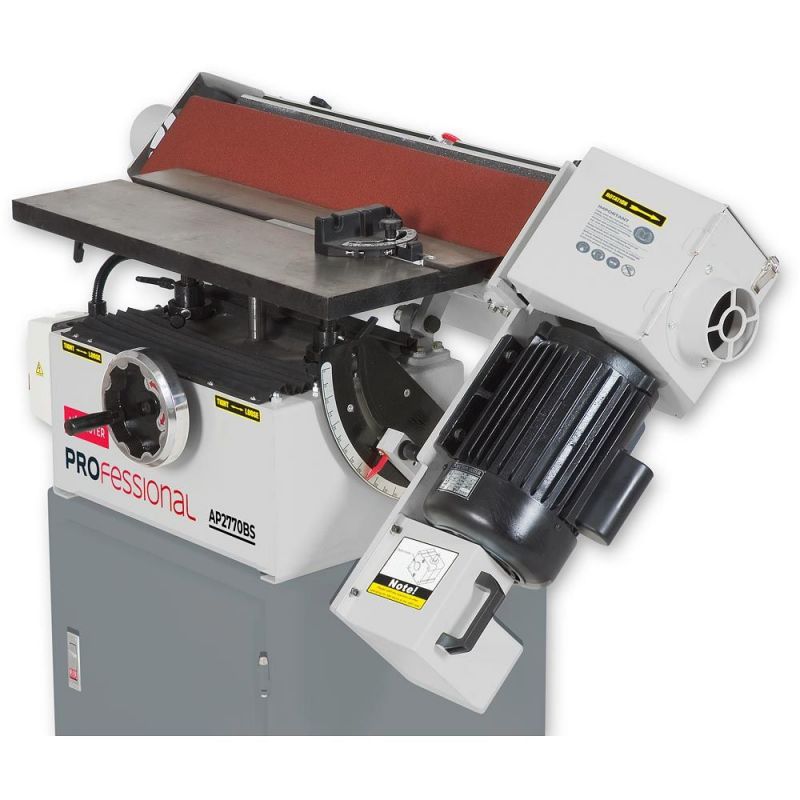

• It can be used horizontally or vertically; the belt oscillates 50 times per minute providing a scratch free finish. In the vertical mode the work table can be raised by means of a hand wheel and adjusted to minimise the gap to the sanding belt.

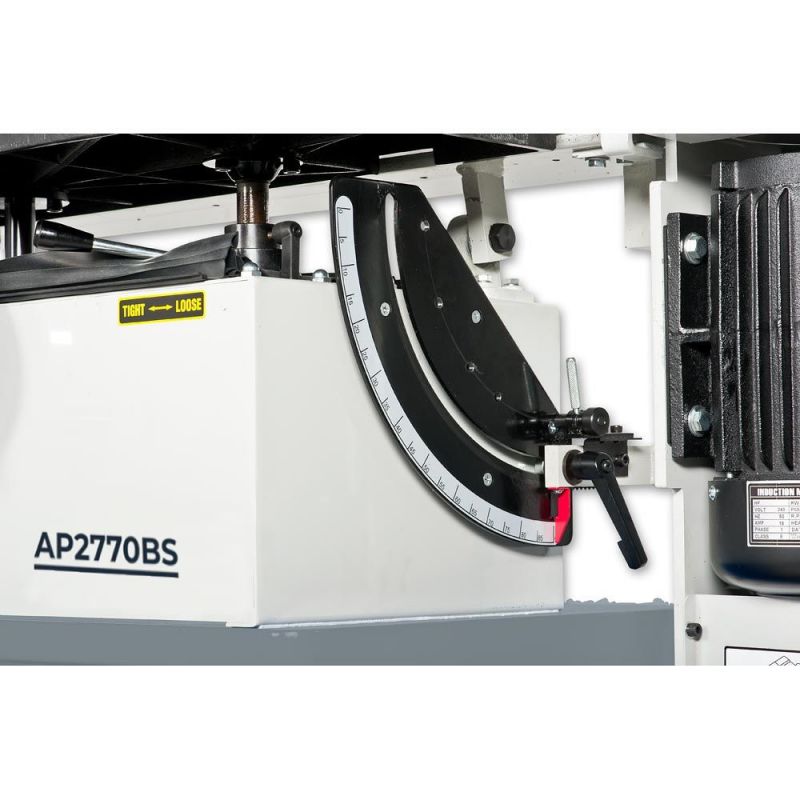

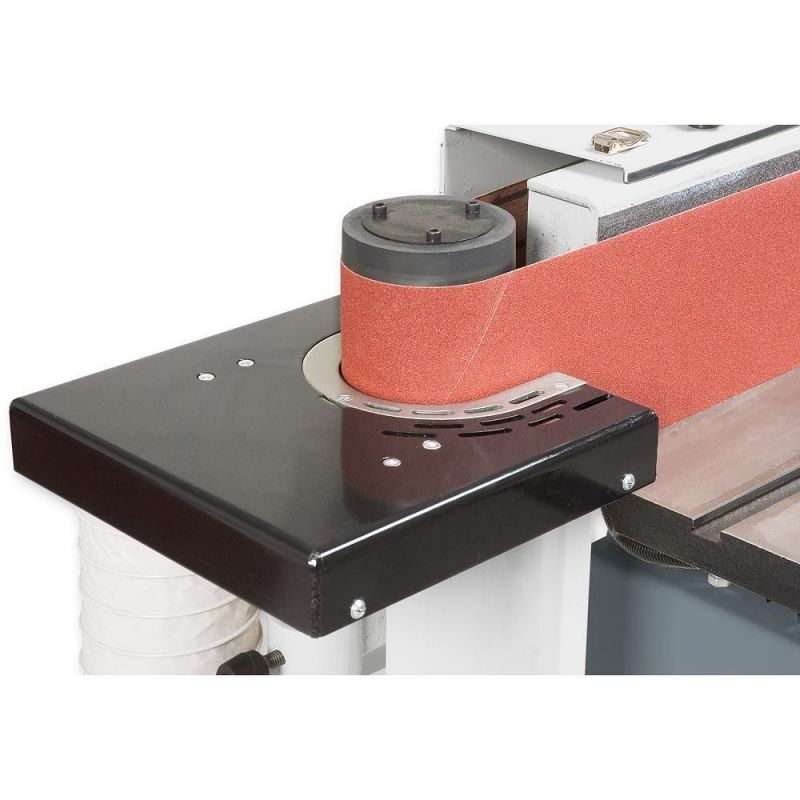

• A large quadrant scale gives an accurate indication of the belt to table inclination for bevel work. Incremental stops are included for most popular angles. An additional use is as a small vertical drum sander with the fitment of any of the three bobbins (38mm, 50mm and 75mm) supplied, using a small table assembly surrounding the idler roller.
• A robust, welded steel stand supports the whole machine and has a large cupboard for storing sanding sheets and accessories.
• Twin 100mm dust ports provide dust free operation when connected to a suitable fine dust extractor. A very well made and invaluable machine in any workshop.
• N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.
• Sander belt runs at any angle between 0° and 90°
• Precision ground steel plate belt platen with low friction graphite slip plate
• Belt oscillation by heavy duty worm gear mechanism running in an oil bath

• Abrasive Belt Size: 150 mm x 2,770 mm
• Belt Speed: 960 m/min
• Dust Extraction Outlet: 2 x 100 mm
• Min Extraction Airflow Required: 2,500 m³/hr
• Model: AP2770BS
• Nett Weight: 225 kg
• Overall L x W x H: 1,545 mm x 595 mm x 1,132 mm
• Plug Fitted: UK 16A Plug
• Power: 2.2 kW
• Rating: Trade/Professional
• Sound Pressure Level LpA [Uncertainty K]: 84 dB(A) [1.5 dB]
• Table Size: 900 mm x 305 mm
• Voltage: 230 V
