Axminster Professional AP25BM Bench Morticer 230V

Axminster Professional AP25BM Bench Morticer 230V

ref: 107638

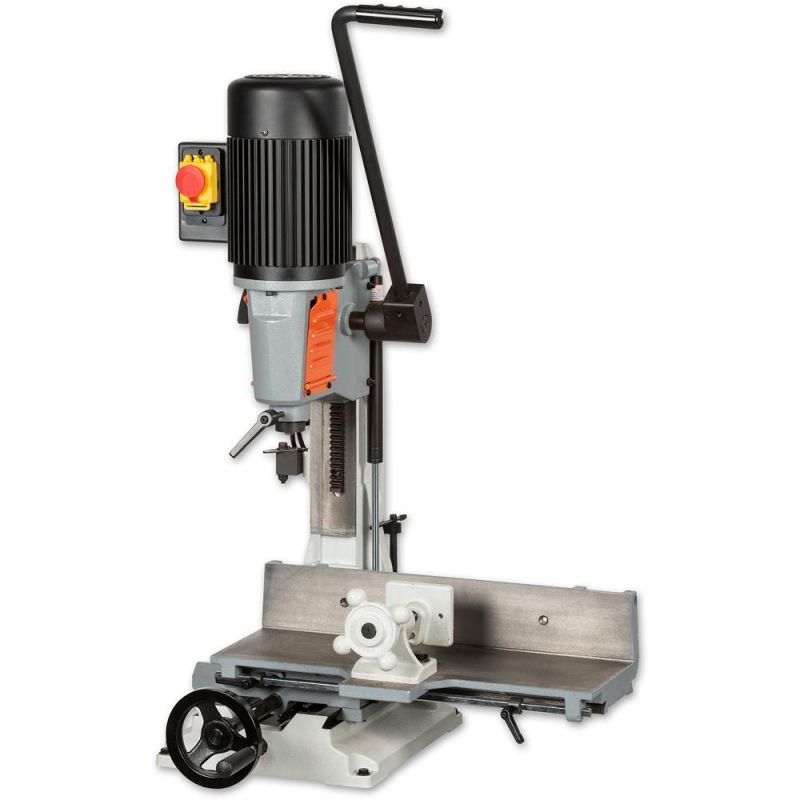

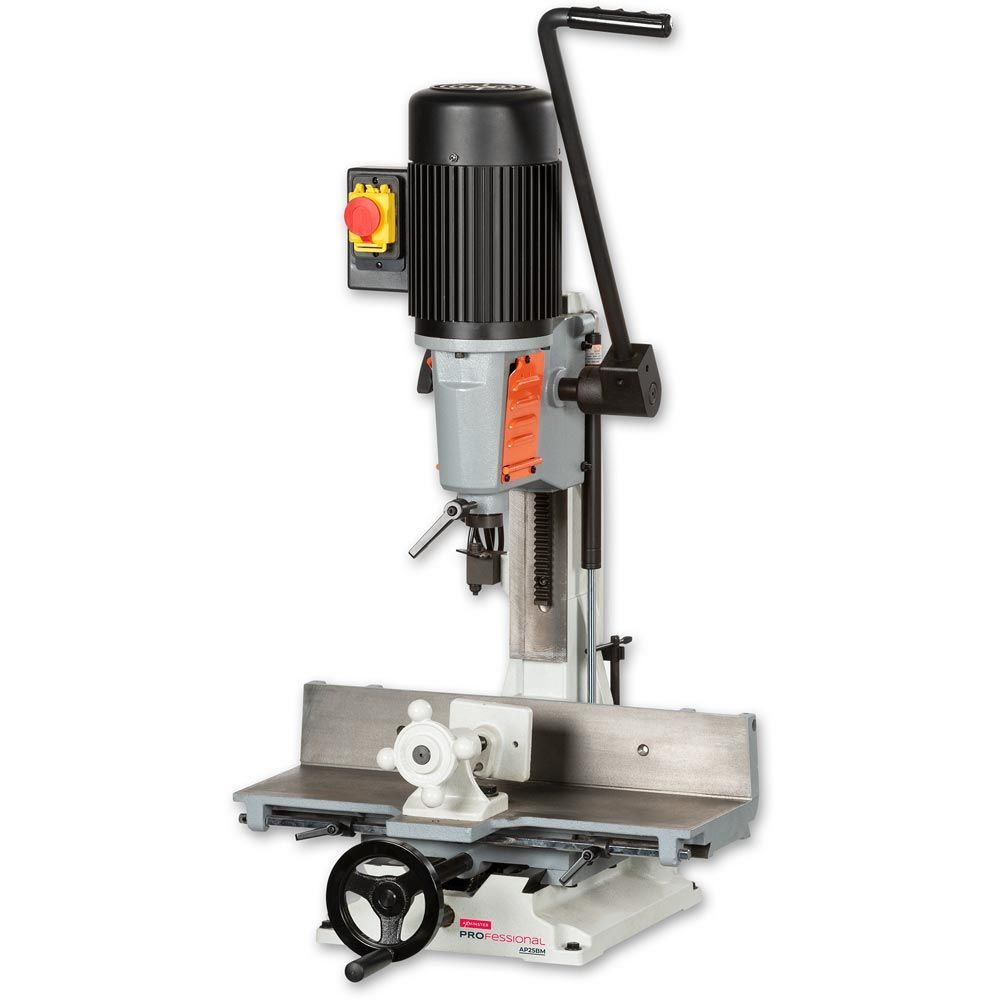

• The AP25BM is a robust, compact bench mounted chisel morticer, produced almost entirely from cast iron. This strong, heavy-duty construction gives the machine capacities of 25mm in softwood and 19mm in hardwood. A single handwheel controls both longitudinal and lateral table movement. This system makes controlling the movement a breeze.

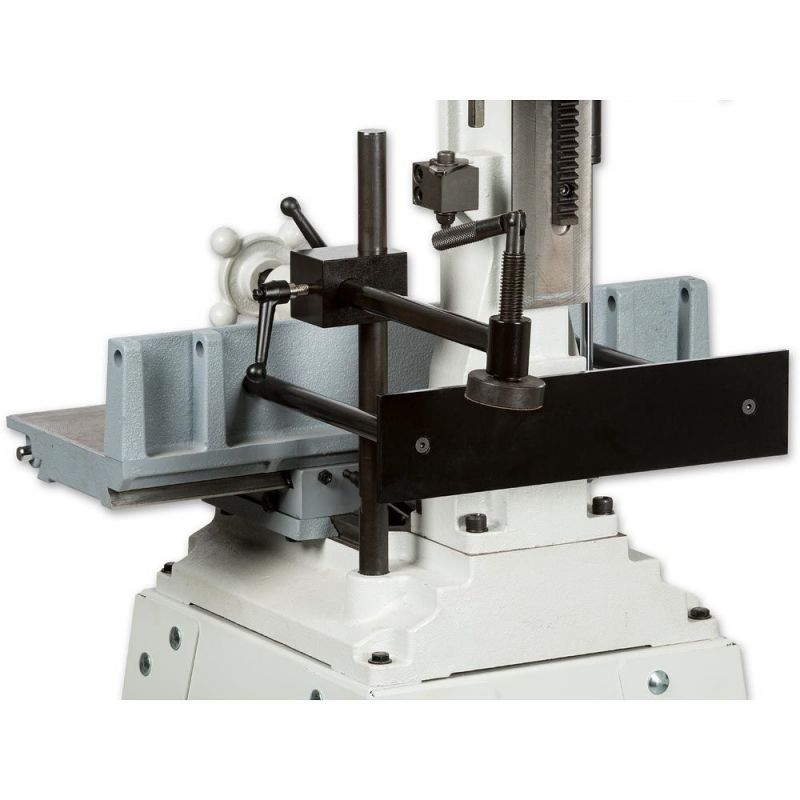

• The table has a tall back fence, with lateral stops for repeat mortising. The depth stop includes a haunch stop. The multiple position material clamp can accommodate different workpiece widths.
• A gas strut provides smooth downward travel of the headstock and also allows headstock "parking" in any position. There is an optional floor stand, plus also a very useful door mortising attachment.
• This machine is well suited to a busy workshop and will provide many years of accurate and trouble-free service. It accepts chisels with either 3/4" or 13/16" shanks.
• Strong, heavy duty, cast iron construction
• 25mm capacity in softwood, 19mm in hardwood
• Single handwheel controls both table movements

• Cast iron construction: The AP25BM Bench Morticer is produced almost entirely from cast iron, making this a strong and durable machine.
• Smooth, one handed operation: Easily control the longitudinal and lateral table movement with one hand wheel.

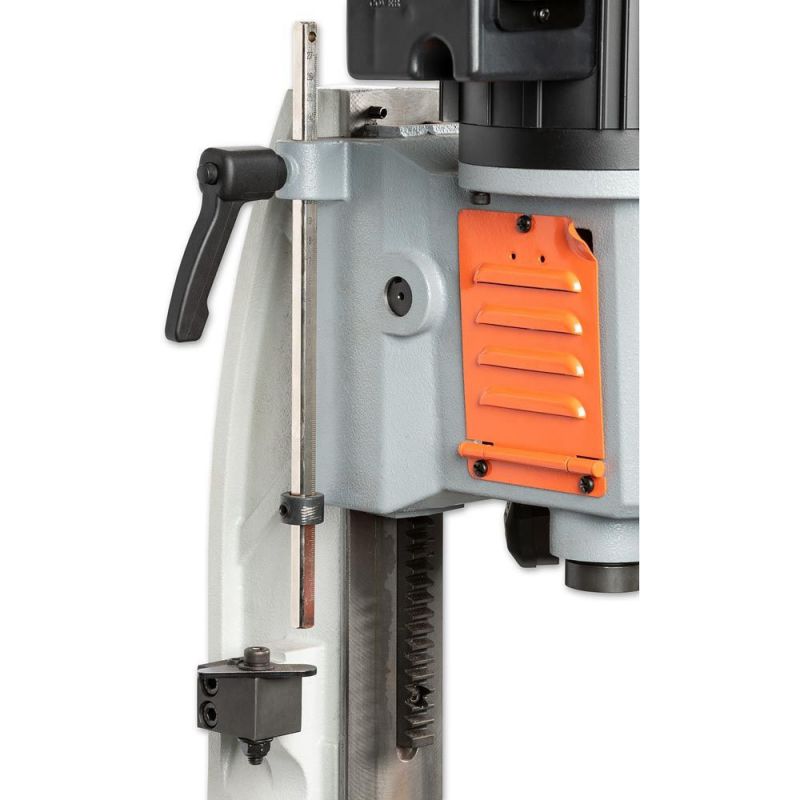

• Adjustable work stops: With lateral stops for repeat mortising and a depth stop which includes a haunch stop, the AP25BM can be used to produce a number of different joints.
• Gas strut assisted head: Benefit from reduced fatigue and “parking” of the headstock in any position, thanks to the gas strut assisted headstock travel.

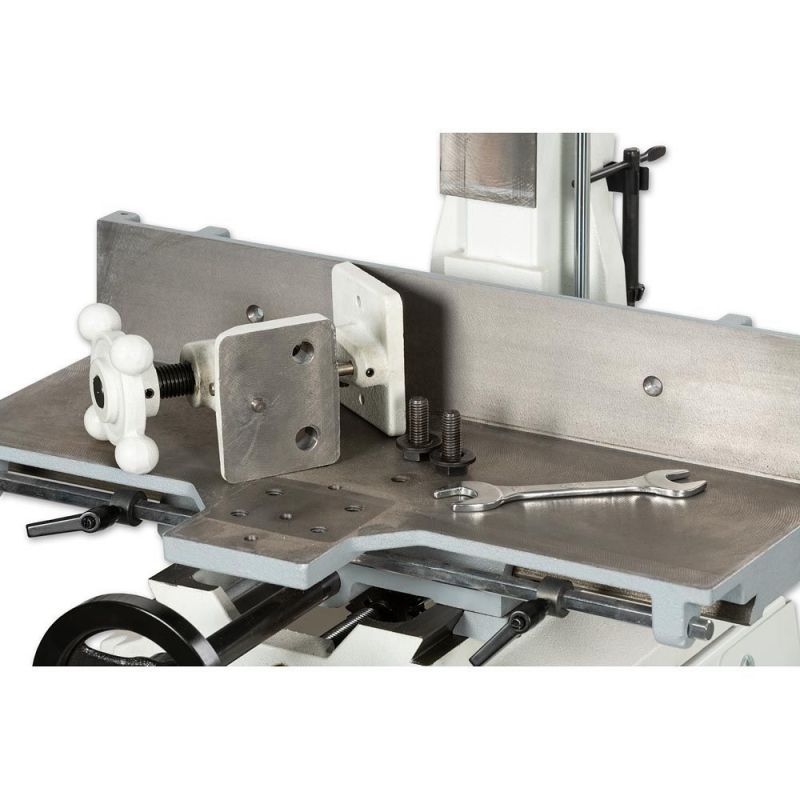

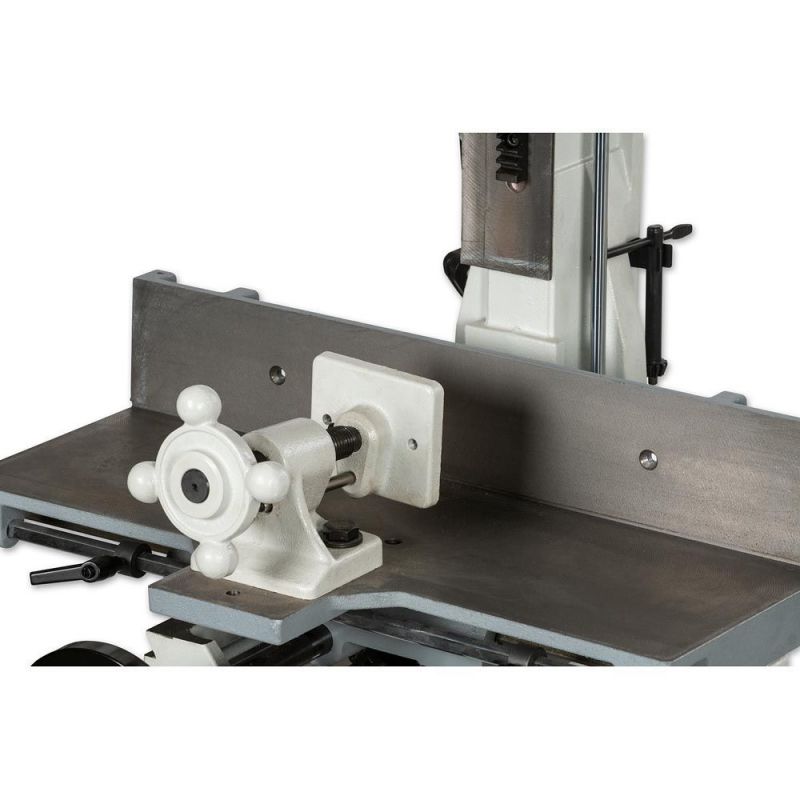

• Effective timber clamp: The multiple position material clamp can accommodate a range of workpiece widths, enhancing the versatility further.

• Centre of Chisel to Back Fence: 110 mm
• Chisel Stroke: 125 mm
• Lateral Table Movement: 100 mm
• Longitudinal Table Movement: 410 mm
• Max Chisel Size Hardwood: 19 mm
• Max Chisel Size Softwood: 25 mm
• Max Height of Timber: 190 mm
• Model: AP25BM
• Nett Weight: 85 kg
• Overall L x W x H: 460 mm x 515 mm x 1,000 mm
• Plug Fitted: UK 3 pin plug
• Power: 750 W
• Rating: Trade/Professional
• Voltage: 230 V
