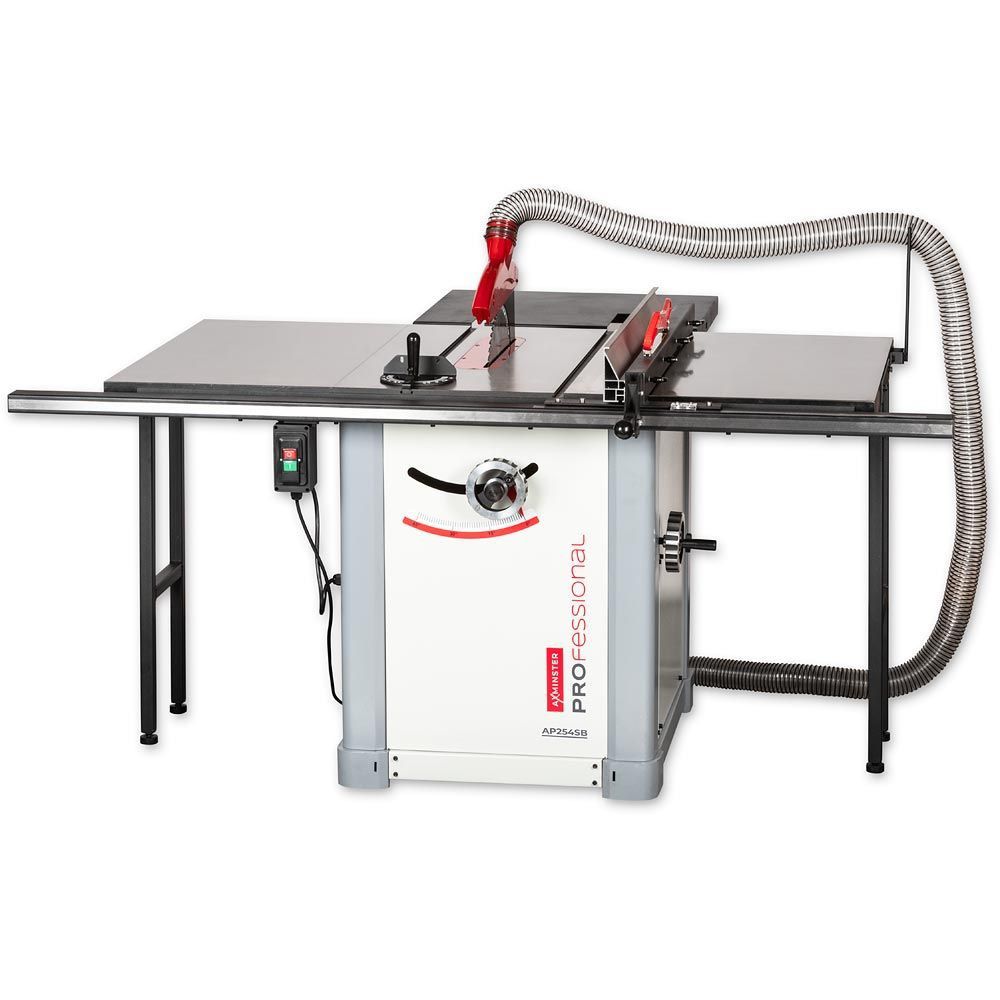

Axminster Professional AP254SB Table Saw 230v

Axminster Professional AP254SB Table Saw 230v

ref: 108516

• The Axminster Professional AP254SB Saw Bench is built for daily use in a busy workshop. It has been carefully designed to include many useful features. It offers an impressive 80mm depth of cut and with the supplied twin extension tables, you can enjoy up to a generous 1,200mm width of cut to the fence. The motor, castings and trunnions are all mounted on the saw’s chassis. This is a much better and stronger option as it doesn't place any stress on the underside of the table.
• The AP254SB’s chassis is heavy gauge steel, supporting the smooth cast iron table. A quality mitre fence runs in T-slot grooves provided on both sides of the blade. The full length fence is a rigid T-style which locks at the front, adjustment is smooth and easy. The rip fence comes with a Hi/Lo aluminium auxiliary fence.
• The 2.5kW 1ph quiet and powerful induction motor gives you all the oomph required. Blade adjustment for height and tilt are controlled separately on individual handwheels.
• A steel rear take-off is supplied, as well as an Axcaliber TCT general purpose blade. Two point dust extraction is via a 63mm connection on the blade guard hose combined with a 100mm outlet at the rear of the machine. Connection to a suitable extractor is recommended. The saw comes with two twin extension tables which can be set up on either side of the saw for a traditional style or both on the right-hand for a very general extension, and rear extension table.
• Optional accessories include Sliding Crosscut Table, Overhead Crown Guard and Dado Blade Set for grooving.
• N.B. This machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.

• Cast iron tables: The large fine ground cast iron tables provide smooth running, reduced vibration and a long life for your table saw.
• Independently mounted table & trunnion assembly: The trunnion assembly is mounted independently on the saw's frame, relieving stress on the table and ensuring that the table remains flat and true over time.

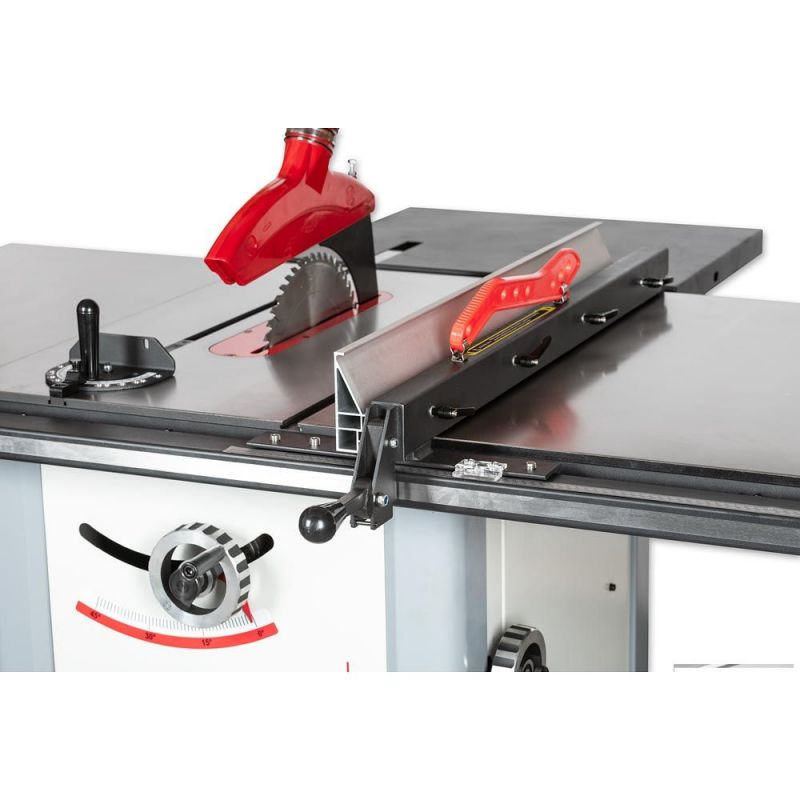

• Solid "T" style dual height rip fence: Achieve close to the blade work as well as heavy duty ripping with the dual height rip fence, with a solid "T" style design for accuracy.
• Twin extension table configuration: Set up the twin extension tables on either side of the saw for a traditional cabinet making style, or mount both tables on the right-hand side to handle large pieces.
• Powerful 2.5kw motor: The quiet and powerful induction motor maintains blade speed for a consistent cut.

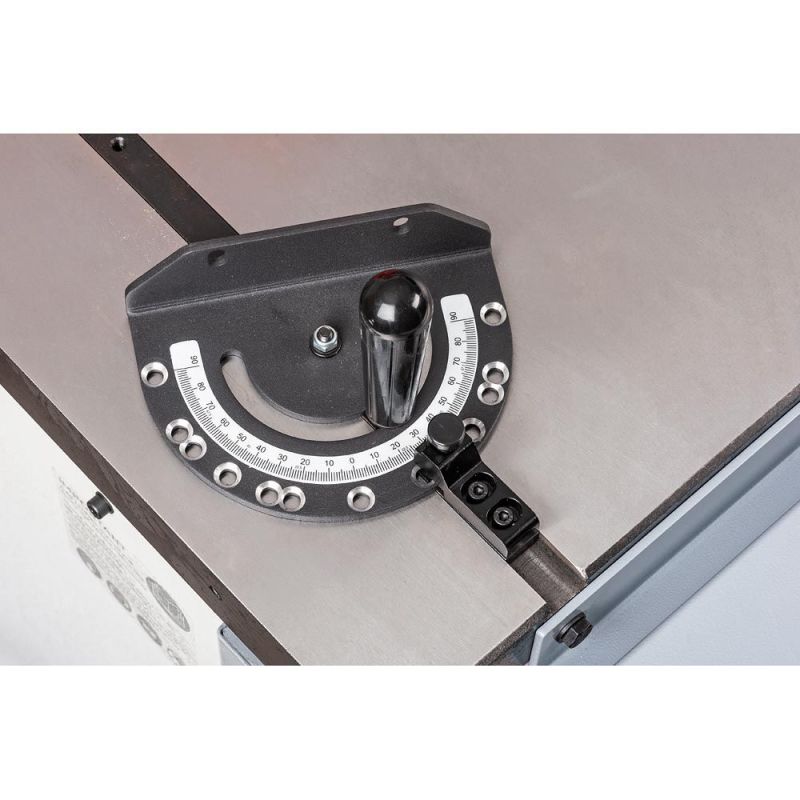

• Twin mitre fence table slots: Twin T-slot mitre fence slots on both sides of the blade, ideal for jig use. Also supplied with a premium mitre gauge with useful pre-set angle stops.
• Compatible with Dado Blade: With the available accessories of Dado Blade Table Insert and Overhead Crown Guard, the AP254SB is compatible with a Dado Blade Set which enables the easy cutting of grooves.
• Dual dust extraction ports: Keep the saw line clear with a 63mm blade guard hose connection to clear above the blade as well as a 100mm rear outlet to clear below.
• Heavy duty handwheels: Metal handwheels provide a smooth operation for blade adjustment.

• Blade Diameter: 254 mm
• Blade RPM: 4,000 rpm
• Blade Tilt: 0° to 45°
• Bore Size: 30 mm
• Dust Extraction Outlet: 100 mm & 63 mm
• Max Depth of Cut @ 45º: 56 mm
• Max Depth of Cut @ 90º: 80 mm
• Max Width of Cut with Fence: 1,200 mm
• Min Extraction Airflow Required: 1,000 m³/hr
• Model: AP254SB
• Nett Weight: 175 kg
• Overall L x W x H: 1,840 mm x 1,600 mm x 1,150 mm
• Plug Fitted: UK 16A Plug
• Power: 2.5 kW
• Rating: Trade/Professional
• Sound Power Level LwA [Uncertainty K]: 97.4 dB(A) [3.0 dB]
• Sound Pressure Level LpA [Uncertainty K]: 80.5 dB(A) [3.0 dB]
• Spindle Diameter: 5/8"
• Table Height: 850 mm
• Table Size: 580 mm x 800 mm
• Voltage: 230 V
