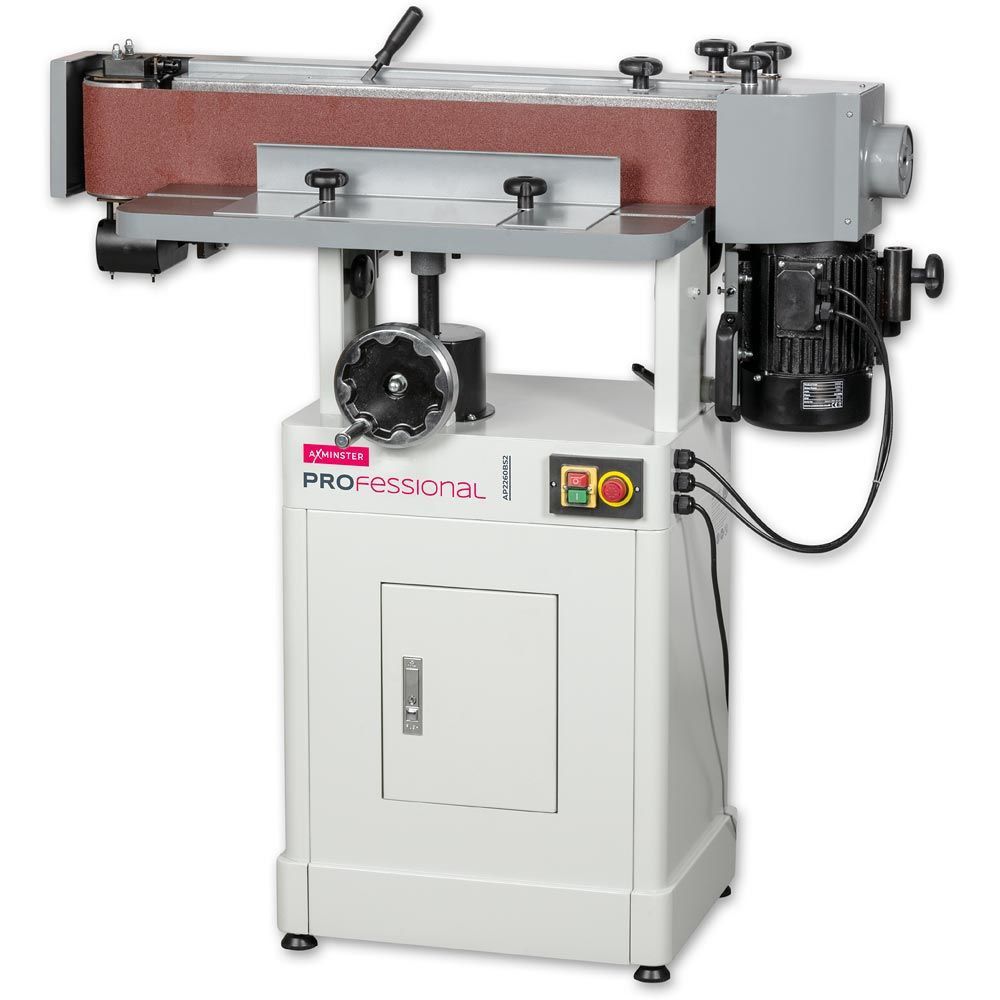

Axminster Professional AP2260BS2 Belt Sander 230V

Axminster Professional AP2260BS2 Belt Sander 230V

ref: 107708

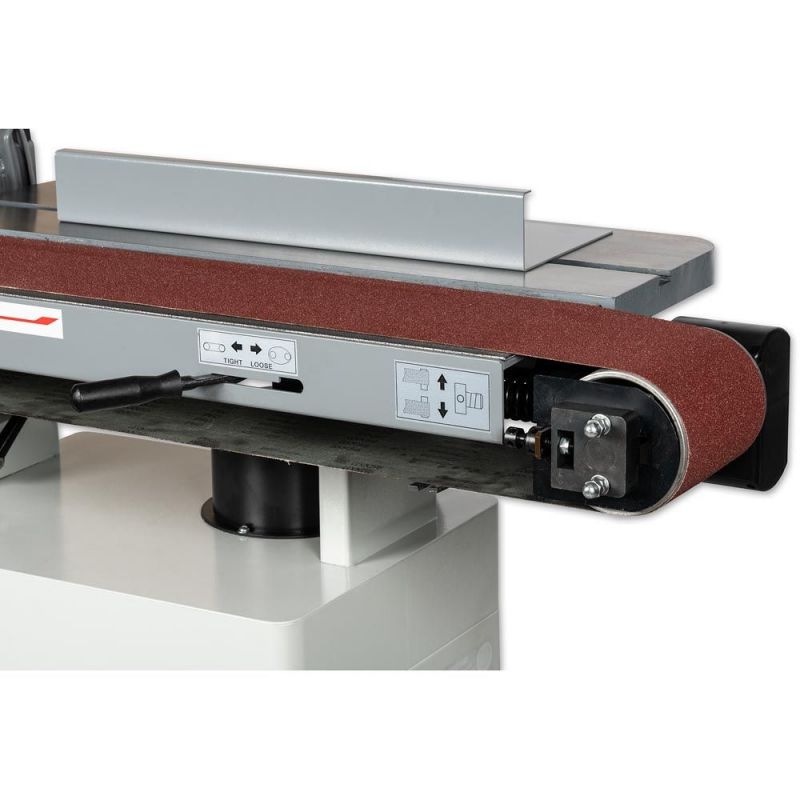

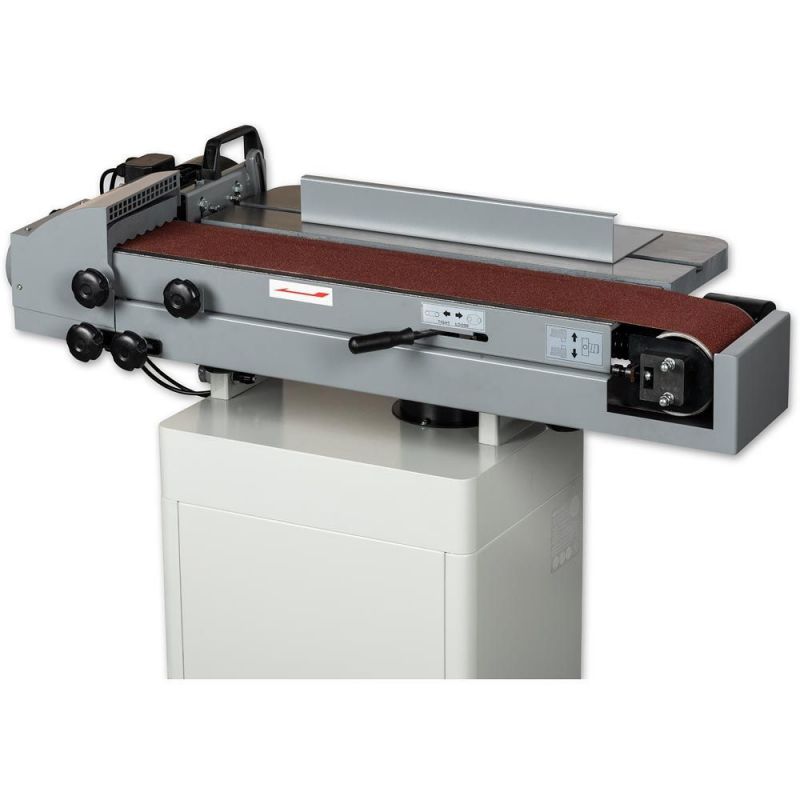

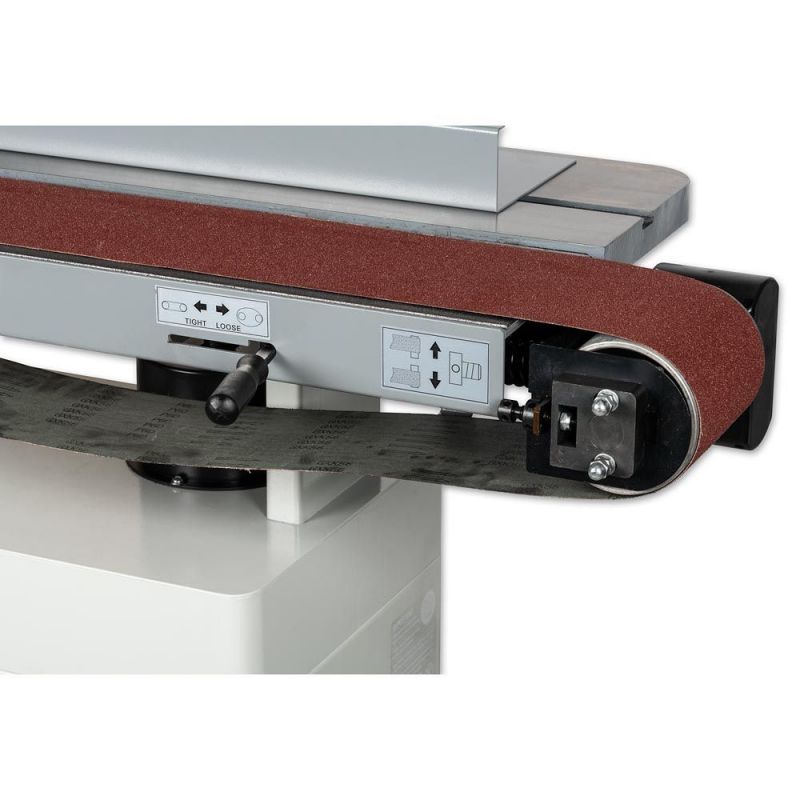

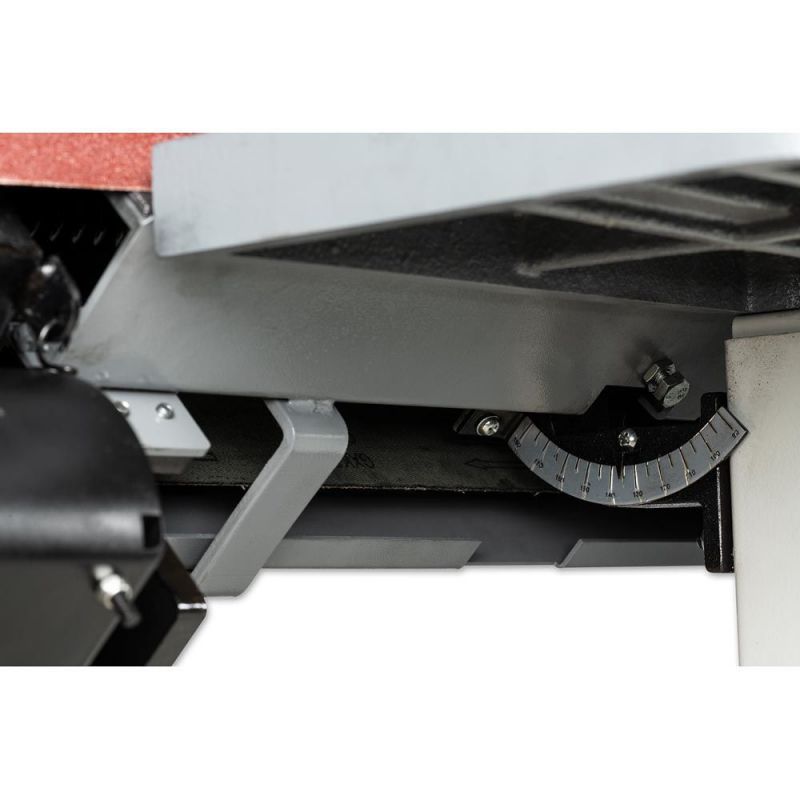

• This compact belt sander is a well made and relatively simple machine. With a 2.2kW motor driving a 150mm wide belt, it is one of the most useful machines to have in any woodworking workshop. The belt drive has an automatic oscillating action to provide a scratch-free finish and longer abrasive life. The belt also runs on a graphite anti-friction plate. The whole belt platen can tilt through 90° from vertical to horizontal, the precision ground cast iron table being easily adjusted in two planes to suit.
• The table has a standard 3/4" x 3/8" mitre slot to take a mitre fence. The dust hood can be rotated to clear the end of the belt for easy belt changing, and also to allow a small table to be mounted for sanding curved work. The stand is made from thick gauge welded steel and had a very useful belt storage cupboard. Smooth running, quiet in use, a very useful finishing machine.
• Supplied with a 150mm x 2,260mm 80G abrasive belt fitted.
• N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.
• Sands either vertically, horizontally or any angle between
• Sanding belt oscillates for a scratch-free finish and longer abrasive life
• Table height adjustment by geared handwheel for precision setting

• Abrasive Belt Size: 150 mm x 2,260 mm
• Belt Speed: 960 m/min
• Dust Extraction Outlet: 100 mm
• Min Extraction Airflow Required: 1,000 m³/hr
• Model: AP2260BS2
• Nett Weight: 120 kg
• Overall L x W x H: 1,325 mm x 570 mm x 1,235 mm
• Plug Fitted: UK 16A Plug
• Power: 2.2 kW
• Rating: Trade/Professional
• Sound Pressure Level LpA [Uncertainty K]: 81 dB(A) [3.0 dB]
• Table Size: 750 mm x 250 mm
• Table Vertical Travel: 80 mm
• Voltage: 230 V
