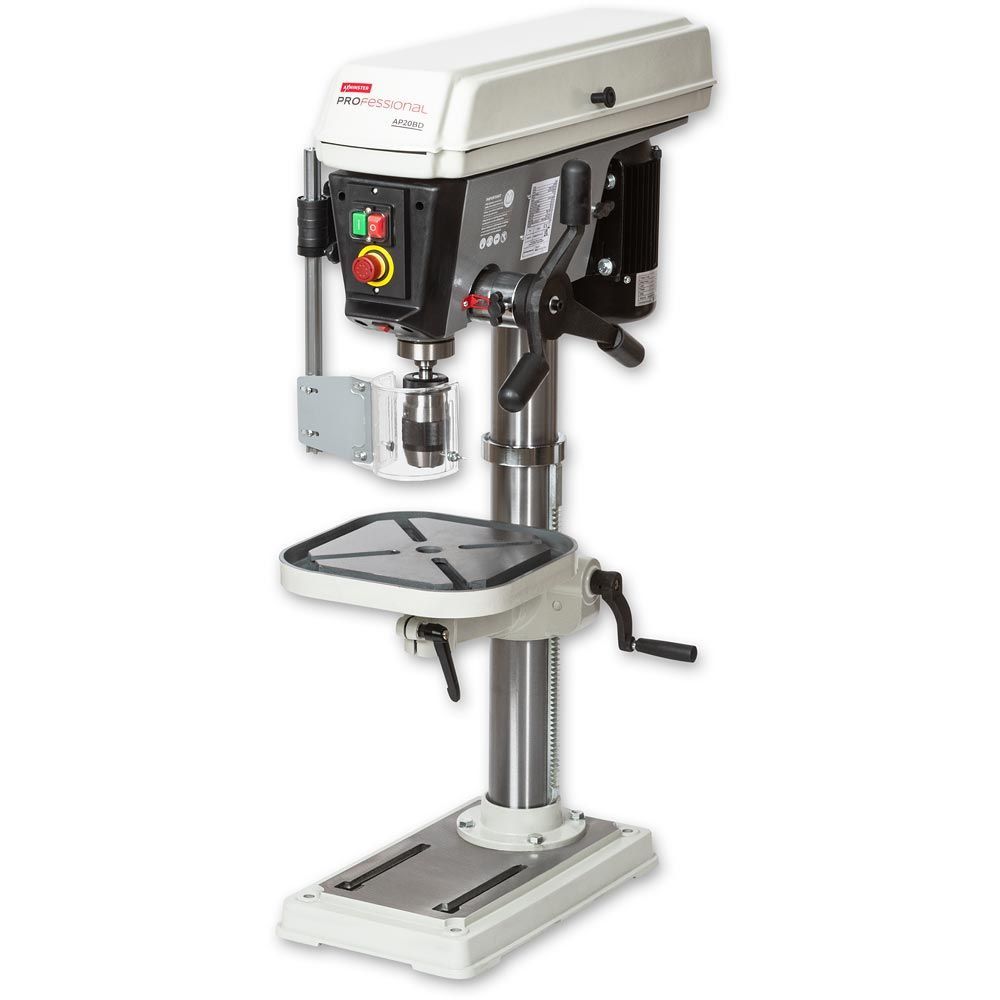

Axminster Professional AP20BD Bench Drill 230v

Axminster Professional AP20BD Bench Drill 230v

ref: 111891

• The Axminster Professional AP20BD Bench Drill 230V is a robust and versatile machine designed to meet the needs of any workshop. This drill features a precision spindle running in genuine NSK ball bearings, ensuring accurate drilling and low vibration. The multi-vee type belts provide maximum grip and low vibration, contributing to the smooth operation of the machine. The spindle assembly is a good fit into the headstock, enhancing the overall stability and accuracy of the drill.

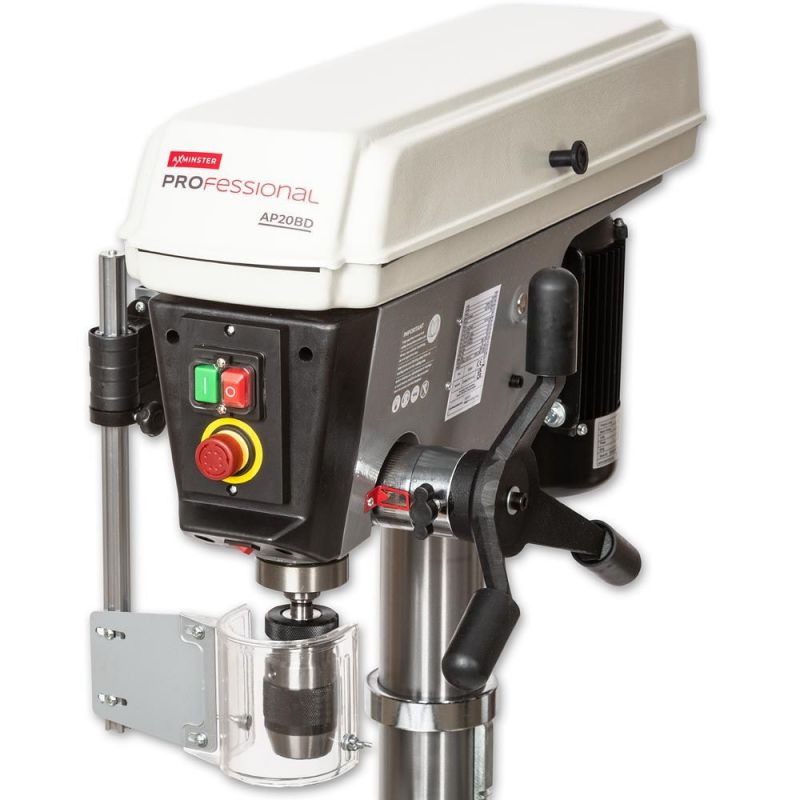

• Safety is a top priority with the AP20BD. It comes equipped with an electrically interlocked chuck guard that prevents the machine from being accidentally turned on, and an integrated belt cover safety switch that stops the drill from running with the cover open. Additionally, the adjustable LED work lamp provides excellent visibility of the workpiece, ensuring precise and safe drilling operations.
• The ergonomic design of the AP20BD includes a one-piece cast iron handle with soft rubber grips for comfortable and smooth operation. The quality 1-16mm keyless chuck allows for quick and easy changing of drill bits, while the rack and pinion table adjustment ensures quick and easy table adjustments. Plus, with the improved depth stop design, you can make easy adjustments for precise drilling depths. Its compact design makes it an ideal addition to any workshop, offering both functionality and convenience.

• Genuine NSK Ball Bearings: The spindle runs in genuine NSK ball bearings – known for their premium quality. The result is accurate drilling and low vibration, enhancing the overall precision of your work.
• Enhanced Safety System: The electronically interlocked chuck guard and integrated belt cover safety switch prevent the machine from being accidentally turned on or running with the cover open, ensuring maximum safety.

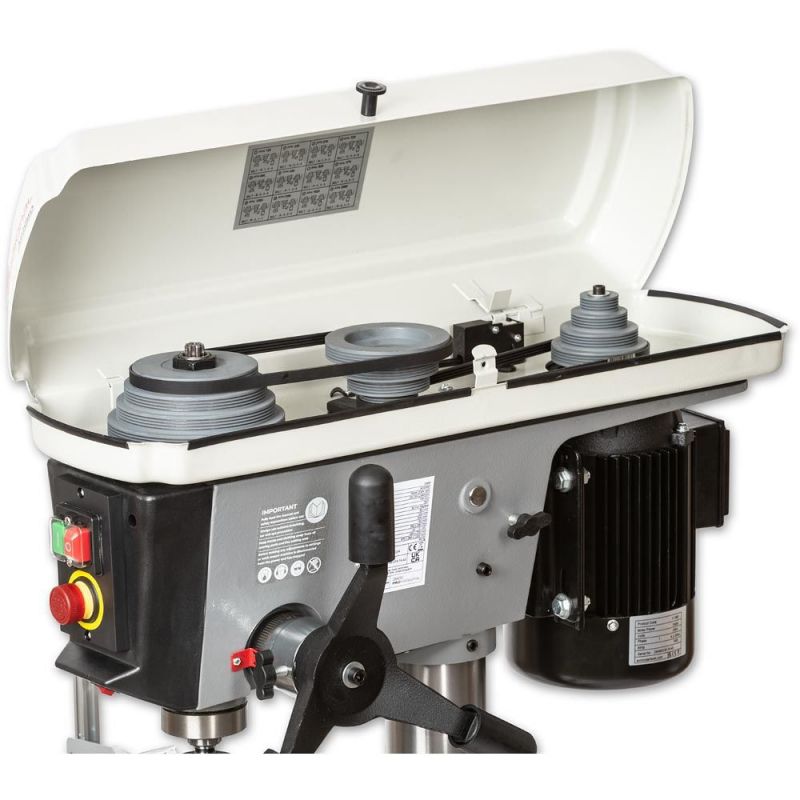

• Multi-Vee Belts: Multi-vee type belts provide maximum grip and low vibration, contributing to the drill's overall smooth and stable performance.
• Improved Depth Stop: The improved depth stop allows for easy adjustment, enabling precise control over drilling depth for consistent results.
• Polished Cast Iron Table: The (290 mm x 290 mm / 345 mm x 345 mm / 475 mm x 425 mm*) cast iron table provides a strong and rigid work surface, ensuring stability and durability during drilling operations.
• Rack and Pinion Table Adjustment: The rack and pinion mechanism provides quick and easy table adjustments, making it simple to position your workpiece accurately.
• One-Piece Cast Iron Handle: With soft rubber grips, the cast iron handle is comfortable to use, reducing user fatigue during extended use.

• Base Size: 450 mm x 270 mm
• Chuck Capacity: 1 mm to 16 mm
• Chuck Travel: 80 mm
• Chuck Type: keyless
• Diameter of Column: 80 mm
• Max Chuck to Base: 500 mm
• Max Chuck to Table: 325 mm
• Max Drilling Mild Steel: 20 mm
• Model: AP20BD
• Morse Taper: 2 MT
• Nett Weight: 82 kg
• Overall L x W x H: 670 mm x 360 mm x 1,020 mm
• Plug Fitted: UK 3 pin plug
• Power: 750 W
• Rating: Trade/Professional
• Speed Range: 120 - 2,580 rpm
• Spindle Taper: 2 MT
• Table Size: 290 mm x 290 mm
• Table Tilt: 45° - 0° - 45°
• Throat Depth: 178 mm
• Voltage: 230 V
